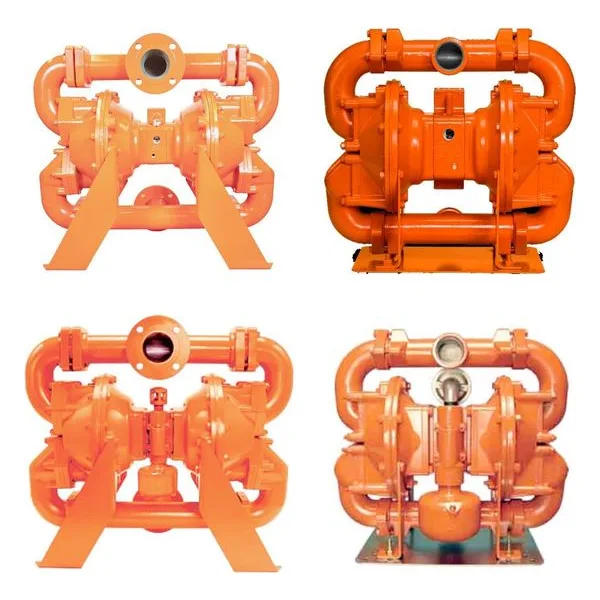

Wilden® Large Solids Handling AODD Pumps

Legendary Wilden® and Brahma™ Series Air-Operated Double-Diaphragm (AODD) Pumps transfer solid-laden slurries safely and effectively. The Brahma Series utilizes a unique top inlet, bottom discharge orientation and flap valves to allow passage of large-size solids and avoid damage from product entrapment and settling of solids in intermittent-duty applications.

Large internal clearance and flow-through design result in large-solids passage capacity and prevent the pump from clogging. It features bolted construction for superior containment and the ability to pass compressible solids up to 76 mm (3″), depending on pump size.

• Flap valve design for large-solids passage
• Top inlet, bottom discharge for easy transfer of sediment and solid-laden fluids
• Powered by Pro-Flo® SHIFT or Turbo-Flo™ air distribution systems (ADS)

51 mm (2") Pro-Flo® SHIFT Brahma™ Bolted Metal AODD Pump PS810
76 mm (3”) Pro-Flo® SHIFT Brahma™ Bolted Metal AODD Pump PS1510
51 mm (2'') Turbo-Flo™ Brahma™ Bolted Metal AODD Pump T810
76 mm (3'') Turbo-Flo™ Brahma™ Bolted Metal AODD Pump T1510

Applications
• Waste Transfer
• General/Bulk Transfer
• Site Dewatering
• Drilling Mud Transfer
• Sump
• Sludge Transfer

Manuals & Media

Search Results

(108 results)

Sort & Filter 2

Series: Brahma Large Solids Handling Pumps

Manufacturer: Wilden

Clear all

08-15775
Wilden
Wilden 08-15775 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (PS810), MODEL: PS810/AMAAA/NES/NF/MNE/0712. 640 lpm (169 gpm) Max Flow, 51 mm (2") NPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block & Air Valve, Mild Steel Outer Piston & Seats, Neoprene O-Rings, Traditional Diaphragms & Flap Valves. 15-9987-99 ADS Repair Kit, 08-9834-51 Wet End Kit Available to order. A PSG Dover Brand Product.
$4,438.80
Quantity:add to cart
08-13401
Wilden
Wilden 08-13401 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/AMAAD/BNS/BF/MBN/0678. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported BSPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber & Center Block, Mild Steel Outer Piston & Seats, Brass w/Oil Bottle Air Valve, Buna-N O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-52 Wet End Kit, 71-7590 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$3,475.80
Quantity:add to cart
08-16158
Wilden
Wilden 08-16158 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (XPS810), ATEX Compliant, MODEL: XPS810/WZAAA/WWL/WF/MEP/0678. 640 lpm (169 gpm) Max Flow, 51 mm (2") - Center Ported BSPT Suction & Discharge. Ductile Iron Wetted Parts, Aluminum Air Chamber, Center Block & Air Valve, Wil-Flex (Santoprene) Full Stroke IPD Diaphragms & Balls, Mild Steel Seats, EPDM Gaskets. 15-9987-99 ADS Repair Kit, 08-9834-58 Wetted Path Kit, 75-1002 ISD Series Dampener, 04-8340-99 Filter-Regulator, 65-8115-99 Wil-Guard Monitoring System Available to Order. A PSG Dover Brand Product.
$4,656.60
Quantity:add to cart
15-12735
Wilden
Wilden 15-12735 Brahma Series 3" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (XPS1510), ATEX Compliant, MODEL: XPS1510/AAAAA/NES/NF/ANE/0504. 882 lpm (233 gpm) Max Flow, 76 mm (3")- Center Ported DIN Flanged Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Neoprene O-Rings, Traditional Diaphragms & Flap Valves. 15-9987-99 ADS Repair Kit, 15-9834-51 Wet End Kit, 71-8016 SD Dampener, 79-1004 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$5,417.10
Quantity:add to cart

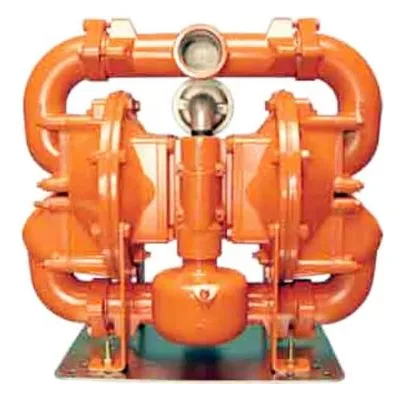

08-13400
Wilden
Wilden 08-13400 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/AMAAD/BNS/BF/MBN/0677. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber & Center Block, Mild Steel Outer Piston & Seats, Brass w/Oil Bottle Air Valve, Buna-N O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-52 Wet End Kit, 71-7547 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$3,475.80
Quantity:add to cart
08-13402
Wilden
Wilden 08-13402 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/AMAAD/NES/NF/MNE/0677. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber & Center Block, Mild Steel Outer Piston & Seats, Brass w/Oil Bottle Air Valve, Neoprene O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-51 Wet End Kit, 71-7554 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$3,344.40
Quantity:add to cart
08-13403
Wilden
Wilden 08-13403 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/AMAAD/NES/NF/MNE/0678. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported BSPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber & Center Block, Mild Steel Outer Piston & Seats, Brass w/Oil Bottle Air Valve, Neoprene O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-51 Wet End Kit, 71-7592 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$3,344.40
Quantity:add to cart
08-13405
Wilden
Wilden 08-13405 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/WMAAD/BNS/BF/MBN/0678. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported BSPT Suction & Discharge. Ductile Iron Wetted Parts, Mild Steel Outer Piston & Seats, Aluminum Air Chamber & Center Block, Brass w/Oil Bottle Air Valve, Buna-N O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-52 Wet End Kit, 71-7479 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$3,874.50
Quantity:add to cart
08-13406
Wilden
Wilden 08-13406 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/WMAAD/NES/NF/MNE/0677. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported NPT Suction & Discharge. Ductile Iron Wetted Parts, Mild Steel Outer Piston & Seats, Aluminum Air Chamber & Center Block, Brass w/Oil Bottle Air Valve, Neoprene O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-51 Wet End Kit, 71-7215 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$3,743.10
Quantity:add to cart
08-13407
Wilden
Wilden 08-13407 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (T810), MODEL: T810/WMAAD/NES/NF/MNE/0678. 628 lpm (166 gpm) Max Flow, 51 mm (2")- Center Ported BSPT Suction & Discharge. Ductile Iron Wetted Parts, Mild Steel Outer Piston & Seats, Aluminum Air Chamber & Center Block, Brass w/Oil Bottle Air Valve, Neoprene O-Rings, Traditional Diaphragms & Flap Valves. 15-9982-07 ADS Repair Kit, 08-9834-51 Wet End Kit, 71-7473 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$3,743.10
Quantity:add to cart
08-15152
Wilden
Wilden 08-15152 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (XPS810), ATEX Compliant, MODEL: XPS810/AMAAA/BNS/BF/MBN/0677. 640 lpm (169 gpm) Max Flow, 51 mm (2") Center Ported NPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block & Air Valve, Mild Steel Outer Piston & Seats, Buna-N O-Rings, Traditional Diaphragms & Flap Valves. 15-9987-99 ADS Repair Kit, 08-9834-52 Wet End Kit, 71-7547 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$4,131.00
Quantity:add to cart

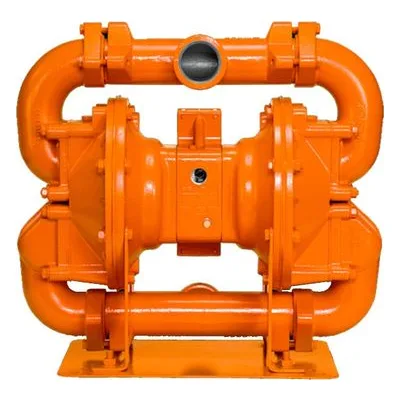

08-15153
Wilden
Wilden 08-15153 Brahma Series 2" Bolted Metal Air Operated Double Diaphragm, Large Solids Handling Pump (XPS810), ATEX Compliant, MODEL: XPS810/AMAAA/BNS/BF/MBN/0678. 640 lpm (169 gpm) Max Flow, 51 mm (2") Center Ported BSPT Suction & Discharge. Aluminum Wetted Parts, Air Chamber, Center Block & Air Valve, Mild Steel Outer Piston & Seats, Buna-N O-Rings, Traditional Diaphragms & Flap Valves. 15-9987-99 ADS Repair Kit, 08-9834-52 Wet End Kit, 71-7590 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$4,131.00
Quantity:add to cart
