LVG5M2-VTSK-SASO

0 reviews

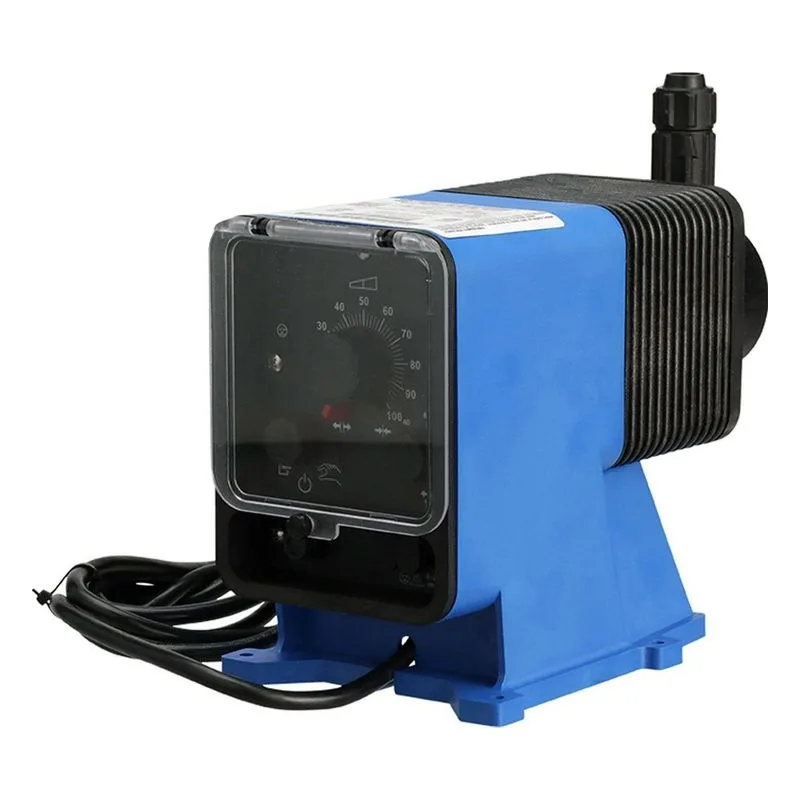

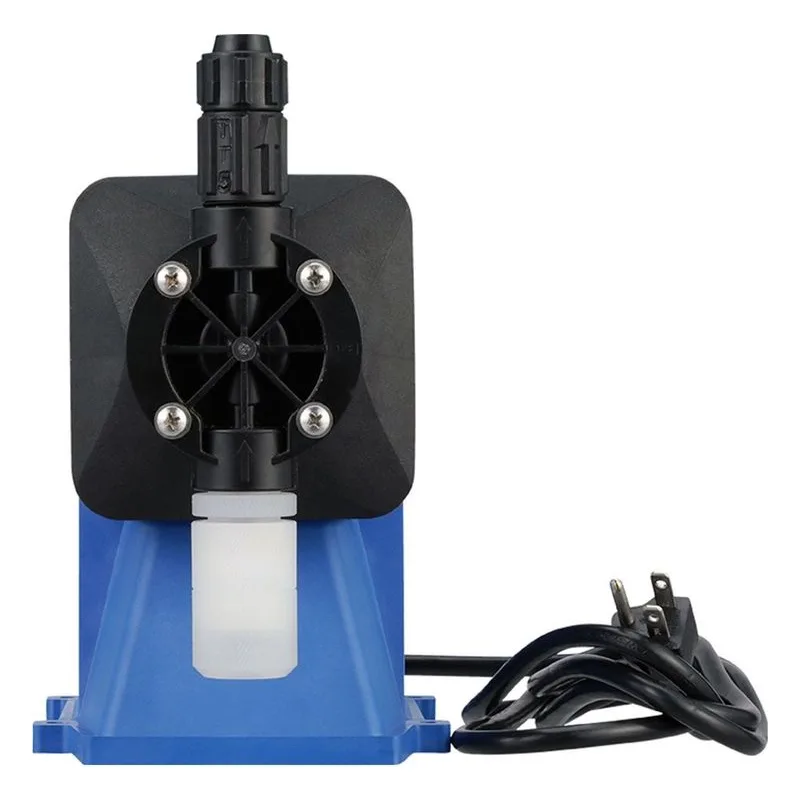

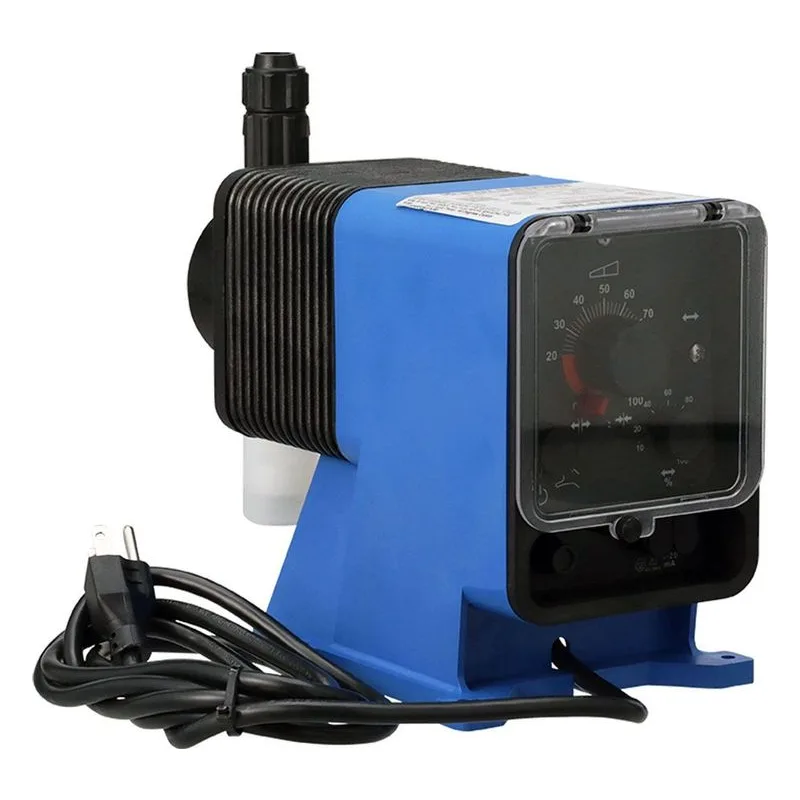

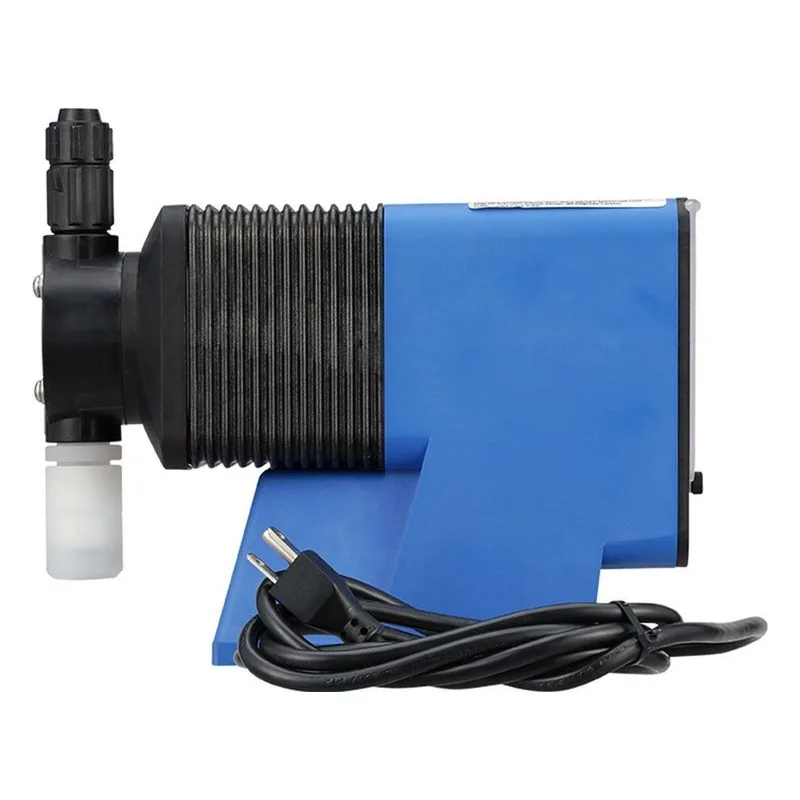

LVG5M2-VTSK-SASO Series HV Solenoid Diaphragm Chemical Metering Pump with PVC Head / Fittings. 50/60 Hz, 230V, 1 Phase (1 Ph) Motor with a 100:1 Turndown Ratio. Includes 4-20mADC Direct w/ Stop, PTFE-Faced CSPE-Backed Diaphragms, and 0.5" (1/2") I.D. x 0.75" (3/4") O.D. Tubing Suction & Discharge. 4 GPH / 96 GPD Maximum Flow & 110 PSI Maximum Pressure.

$1,538.25

Best Price Guarantee!
307PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: LVG5M2-VTSK-SASO

Overview
Series Info
Reviews
Literature/Manuals

LVG5M2-VTSK-SASO

Ball Diameter	0.5" (1/2")
Ball Material	316 Stainless Steel
Connection Type	Tubing
Diaphragm	PTFE-Faced CSPE-Backed
Discharge NPT (Inches)	0.5" (1/2") I.D. x 0.75" (3/4") O.D. Tubing
Flow Control	4-20mADC Direct w/ Stop
Head / Fittings	PVC
Housing Material	PBT
Hz	50/60 Hz
Input (W)	300 Watts
Liquid End Configuration	PVC / TFE / 316SS
Max Amps	0.5 A
Maximum Flow (GPD)	96 GPD
Maximum Flow (GPH)	4 GPH (15.1 LPH)

Maximum Pressure (PSI)	110 PSI (7 Bar)
Maximum Strokes Per Minute	125 SPM
Maximum Viscosity (CPS)	20000 cPs
Model Series	HV Series
Other Factors	No Bleed Valve
Phase	1 Ph (Single Phase)
Product Notes	Conforms to ANSI/NSF STD. 50
Quick Specs	PUMP HV 230 PVC/TFE/SSPR.75T
Spring	Yes
Suction NPT (Inches)	0.5" (1/2") I.D. x 0.75" (3/4") O.D. Tubing
Turn Down Ratio	100:1
Valve / Seat / O-Ring	TFE
Voltage	230V

HV Series Information

Features & Benefits
Dual Manual Control: Stroke frequency and stroke length are manually adjustable. Pulsatron Series HV Chemical Metering Pump by Pulsafeeder • Viscosities to 20,000 CPS. • Manual Control by on-line adjustable stroke rate and stroke length. • Highly Reliable timing circuit. • Circuit Protection against voltage and current upsets. • Panel Mounted Fuse. • Solenoid Protection by thermal overload with auto-reset. • Water Resistant, for outdoor and indoor applications. • Indicator Lights, panel mounted. • Guided Ball Check Valve Systems, to reduce back flow and enhance outstanding priming characteristics. • Reliable metering performance. • Rated "hot" for continuous duty. • Leak-free, sealless, liquid end.
General Description
Pulsafeeder PULSAtron Series HV (High Viscosity) chemical metering pumps are positive displacement, diaphragm type pumps. Output volume is adjustable while pumps are in operation from zero to maximum capacity. The PULSAtron Series HV offers accurate metering of fluids with viscosities up to 20,000 CPS. Series HV has a guided check valves, with state-of-the-art seat and ball designs, providing precise seating and excellent priming and suction lift characteristics. The timing circuit is highly reliable and by design, virtually unaffected by temperature, EMI, and other electrical disturbances. The Series HV is also water resistant for both indoor and outdoor applications.
Pump Controls

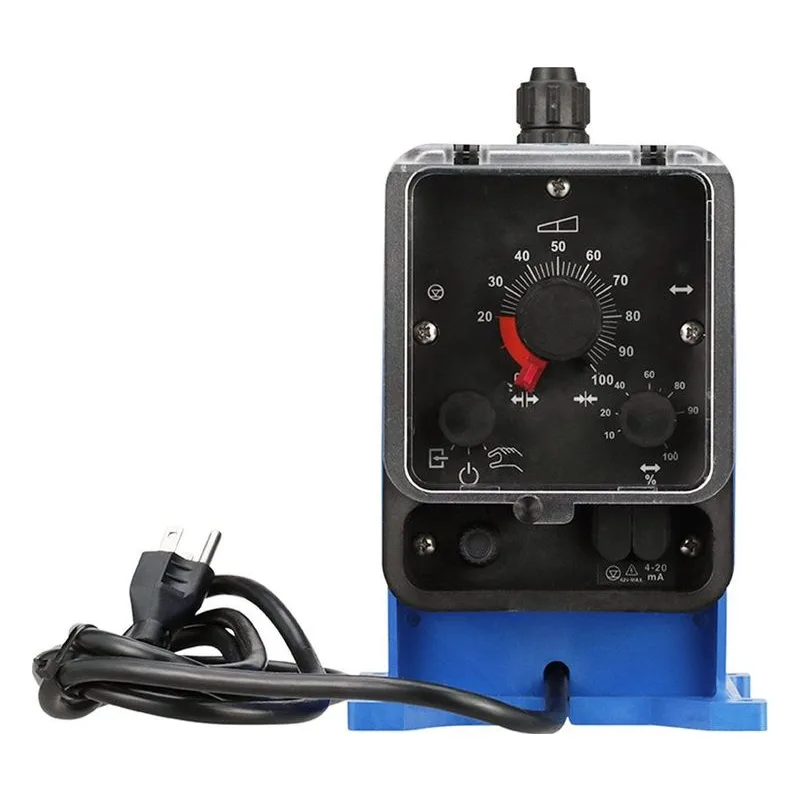

Adjustment is by means of readily accessible dial knobs, one for changing stroke length and the other for changing stroke frequency. Both knobs are located opposite the liquid handling end. Off-Manual Switch.
Drive Assembly
The pump drive is totally enclosed with no exposed moving parts. Electronics are housed in chemical resistant enclosure at the rear of the pump for maximum protection against chemical spillage. Average electrical power consumption is 130 Watts.
Materials of Construction
Chemical metering pump housing shall be of chemically resistant PBT thermoplastic. All exposed fasteners are stainless steel. Valve seat and seal ring are renewable by replacing the cartridge valve assembly.
Engineering Data - Materials
Pump Head Materials: GFPPL, PVC, PVDF, 316 SS Diaphragm: PTFE-faced CSPE-backed Available Seat O-Rings: PTFE, CSPE, Viton Available Ball Types: Ceramic, PTFE, 316 SS, Alloy C Available Fitting Material: GFPPL, PVC, PVDF Bleed Valve: Same as fitting and check valve selected (except 316 SS) Available Tubing: Clear PVC, White PE Important Material Codes: GFPPL = Glass-filled Polypropylene PVC = Polyvinyl Chloride PE = Polyethylene PVDF = Polyvinylidene Fluoride PTFE = Polytetrafluoroethylene CSPE = Generic formulation of Hypalon, a registered trademark of E.I. DuPont Company. Viton is a registered trademark of E.I. DuPont Company. PVC wetted end recommended for sodium hypochlorite.
Controls
• Manual Stroke Rate • Manual Stroke Length • External Pacing - Optional
Control Options
Available Control Options: • Manual On/Off • 4-20mADC Direct, with Stop • External/Remote Pacing, with Stop *Check Model Number Codes and Configuration Options
Engineering Data - Tech
Reproducibility: +/- 2% at maximum capacity Viscosity Max CPS: 20,000 CPS Stroke Frequency Max SPM: 125 Stroke Frequency Turn-Down Ratio: 10:1 Stroke Length Turn-Down Ratio: 10:1 Power Input: 115 VAC / 50-60 HZ / 1 Phase 230 VAC / 50-60 HZ / 1 Phase Average Current Draw: @ 115 VAC / Amps: 1.0 Amps @ 230 VAC / Amps: 0.5 Amps Peak Input Power: 300 Watts Average Input Power @ Max SPM: 130 Watts
Chemical Compatibility
Liquid End Code / Chemical PHC - AMMONIA, 10%, CITRIC ACID, 10 - 20%, SODIUM HYDROXIDE, 0 - 50%, SODIUM SILICATE, SODIUM SULFATE, SODIUM SULFIDE ATS - DEAE - Steamline Treatment PTC - FERRIC SULFATE, HYDROCHLORIC ACID, 0 - 37%, LACTIC ACID, POTASSIUM CHLORIDE, POTASSIUM PERMANGANATE SODIUM BI-CARBONATE, SODIUM BI-SULFATE, SODIUM CARBONATE, SODIUM NITRATE, SULFURIC ACID, 0 - 10%, SULFURIC ACID, 10 - 75% PTT - FLUOSILICIC ACID, HYDROFLUOSILICIC ACID, 20% KTT - HYDROCHLORIC ACID, 37 - 100% PVC - NITRIC ACID, 0 - 20%, VVC - SODIUM HYPOCHLORITE KTC - PHOSPHORIC ACID, 0 - 100%, SULFURIC ACID, 95 - 100%
