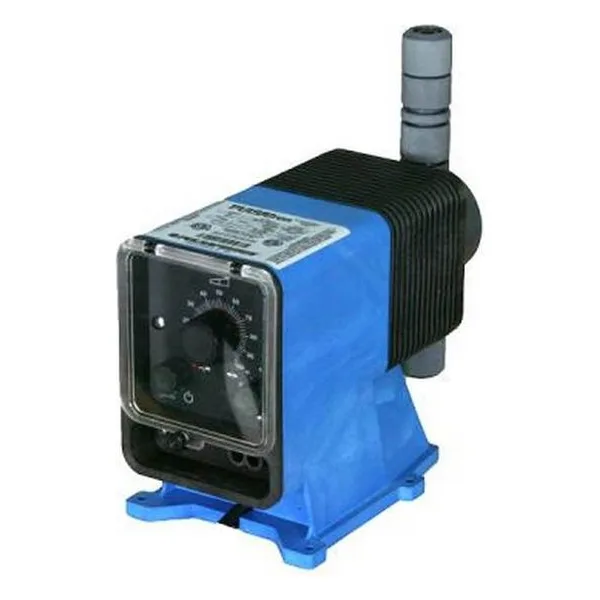

The PULSAtron Series HV offers accurate metering of fluids with viscosities up to 20,000 CPS. The HV offers manual control, external pace via dry contact and even 4-20mA control. Five distinct models are available, having pressure capabilities to 150 PSIG @ 24 GPD, and flow capacities to 240 GPD @ 80 PSIG, with a turndown ratio of 100:1. Metering performance is reproducible to within +/- 2% maximum capacity.
Search Results
(220 results)
Sort & Filter
2
LVG5MA-VTSK-XXX
Pulsatron
Pulsatron Model LVG5MA-VTSK-XXX Metering Pump, Series HV, 96 GPD @ 110 PSI, Dual Manual Control, 115 VAC, PVC/TFE/SSPR.75T
LVF4SA-VTT8-XXX
Pulsatron
Pulsatron Model LVF4SA-VTT8-XXX Metering Pump, Series HV, 24 GPD @ 150 PSI, Dual Manual Control, 115 VAC, PVC/TFE/TSPR.50N
LVG5SA-VTSK-U03
Pulsatron
Pulsatron Model LVG5SA-VTSK-U03 Metering Pump, Series HV, 96 GPD @ 110 PSI, Dual Manual Control, 115 VAC, PVC/TFE/SSPR.75T
LVH7MA-WTSK-XXX
Pulsatron
Pulsatron Model LVH7MA-WTSK-XXX Metering Pump, Series HV, 240 GPD @ 80 PSI, Dual Manual Control, 115 VAC, HPV/TFE/SSPR.75T
LVG5MA-PTSK-XXX
Pulsatron
LVG5MA-PTSK-XXX Pulsafeeder Pulsatron Pump Series HV Electronic Chemical Metering Pumps - HV 115 FPP/TFE/SSPR.75T. 96 GPD Max Flow Rate @ 110 PSI, Flow Control: 4-20mADC Direct with Stop. 115 Volts, 50-60 Hz, 3/4" OD Tube Connections, GFPPL Head & Fittings, 316 Stainless Steel with Spring Valve Ball, TFE Seat. No Bleed Valve, Standard - No Additional Options.
LVB3MA-VTT5-BPXXX
Pulsatron
LVB3MA-VTT5-BPXXX PulsaFeeder PulsaTron Pump Series HV Electronic Chemical Metering Pumps, HV 115 PVC/TFE/TSPR.50T. 0.5 GPH Max Flow Rate, 4-20mADC Direct, w/Stop, .50" x .75" Suction / .38" x .50" Discharge Tubing Connections, PVC Head, TFE Seats / O-Rings, TFE Valve Balls.
LVB3MA-VTT5-GCC
Pulsatron
LVB3MA-VTT5-GCC PulsaFeeder PulsaTron Pump Series HV Electronic Chemical Metering Pumps, HV 115 PVC/TFE/TSPR.50T. 0.5 GPH Max Flow Rate, 4-20mADC Direct, w/Stop, .50" x .75" Suction / .38" x .50" Discharge Tubing Connections, PVC Head, TFE Seats / O-Rings, TFE Valve Balls.
LVB3S2-VTT5-CZXXX
Pulsatron
LVB3S2-VTT5-CZXXX PulsaFeeder PulsaTron Pump Series HV Electronic Chemical Metering Pumps, HV 230 PVC/TFE/TSPR.50T. 0.5 GPH Max Flow Rate, Manual Control, .50" x .75" Suction / .38" x .50" Discharge Tubing Connections, PVC Head, TFE Seats / O-Rings, TFE Valve Balls, CE Approval.
LVF4SA-VTT5-162
Pulsatron
LVF4SA-VTT5-162 PulsaFeeder PulsaTron Pump Series HV Electronic Chemical Metering Pumps, HV 115 PVC/TFE/TSPR.50T. 1 GPH Max Flow Rate, Manual Control, .50" x .75" Suction / .38" x .50" Discharge Tubing Connections, PVC Head, TFE Seats / O-Rings, TFE Valve Balls.
LVG4SA-VTS8-PES
Pulsatron
LVG4SA-VTS8-PES PulsaFeeder PulsaTron Pump Series HV Electronic Chemical Metering Pumps, HV 115 PVC/TFE/SSPR.50N. 2 GPH Max Flow Rate, Manual Control, .50" FNPT Suction / .50" FNPT Discharge Piping Connections, PVC Head, TFE Seats / O-Rings, 316SS Valve Balls, No Bleed Valve.
LVG4SA-VTSK-GCC
Pulsatron
LVG4SA-VTSK-GCC PulsaFeeder PulsaTron Pump Series HV Electronic Chemical Metering Pumps, HV 115 PVC/TFE/SSPR.75T. 2 GPH Max Flow Rate, Manual Control, .50" x .75" Suction / .50" x .75" Discharge Tubing Connections, PVC Head, TFE Seats / O-Rings, 316SS Valve Balls, No Bleed Valve.
LVG5MA-VTSK-GCC
Pulsatron
LVG5MA-VTSK-GCC PulsaFeeder PulsaTron Pump Series HV Electronic Chemical Metering Pumps, HV 115 PVC/TFE/SSPR.75T. 4 GPH Max Flow Rate, 4-20mADC Direct, w/Stop, .50" x .75" Suction / .50" x .75" Discharge Tubing Connections, PVC Head, TFE Seats / O-Rings, 316SS Valve Balls, No Bleed Valve.
