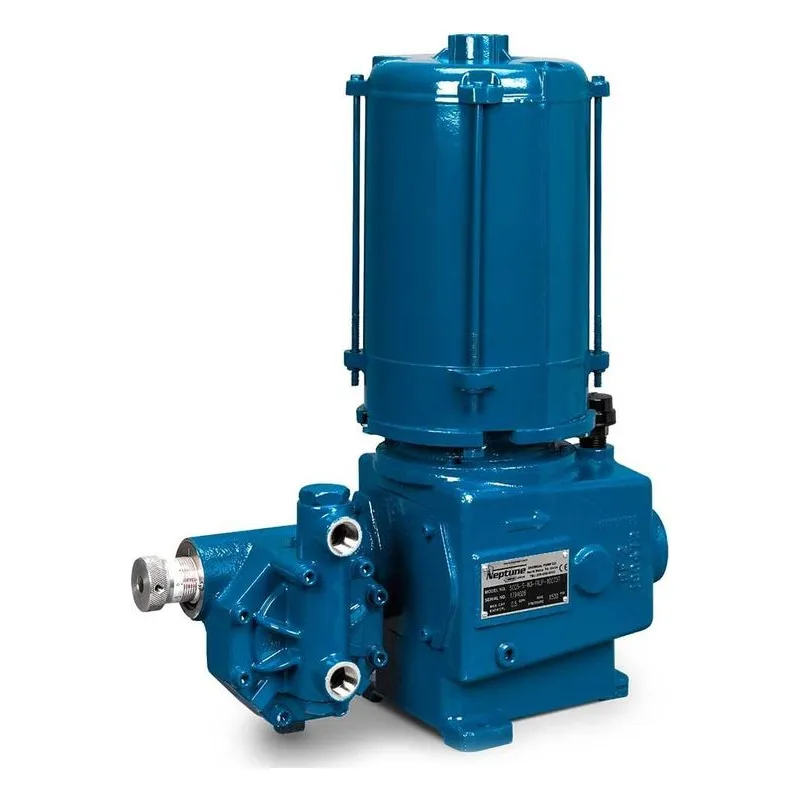

Image shown may not be actual product
5005-D-N5-EX3
5005-D-N5-EX3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 1 GPH at 100 psi, 150 psi Max Pressure. PVC Head, Valve Body & Seat; Glass Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - (Explosion Proof) Motor Enclosure. Model 5005DN5EX3. PSG, A Dover Company.
- Overview
- Series Info
- Reviews
- Repair Parts
5005-D-N5-EX3
5005-D-N5-EX3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 1 GPH at 100 psi, 150 psi Max Pressure. PVC Head, Valve Body & Seat; Glass Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - (Explosion Proof) Motor Enclosure. Model 5005DN5EX3. PSG, A Dover Company.
| Diaphragm | PTFE |
| Explosion Proof | Yes |
| Head / Fittings | PVC Head |
| HP | 0.33 |
| Hz | 60 |
| Maximum Flow (GPH) | 1 GPH at 100 psi |
| Maximum Operating Temperature | 125°F (52°C) |
| Maximum Pressure (PSI) | 150 psi |
| Maximum Strokes Per Minute | 37 |
| Motor Enclosure Type | XP - (Explosion Proof) |
| Part Number | 5005DN5EX3 |
| Phase | 3 Ph (Three Phase) |
| Product Notes | Requires flooded suction; cannot be top mounted. |
| Quick Specs | 1/3HP/3/60/230-460/Explosion Proof Flange mounted motor |
| Type | Duplex |
| Valve / Seat / O-Ring | PVC Valve Body & Seat; Glass Valve Checks; FKM O-Rings |
| Voltage | 230/460 |
Neptune 5003 / 5005 Low Volume Hydraulic Metering Pumps Information
| Product Type |
|---|
| Chemical Metering, Diaphragm Pumps, High Pressure, Injection / Dosing, Metering |
| Features & Benefits |
| Features and Benefits • High discharge pressures, to 3,000 psi (206.8 bar); exceeds limits of most small pumps, ideal for high pressure systems • EZE-CLEAN™ Valves – feature cartridges that can be removed for cleaning without disturbing the piping to the pump • Electric stroke-length control available for automatic capacity control • Explosion-proof motors available and are suitable for use in hazardous atmospheres • Low flow-rates – quarts/day • Accurate, reliable chemical feed • Duplex available |
Categories
Oil Change / Transfer
2324 products
Repair Parts for 5005-D-N5-EX3
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 002714 | Ships in | $817.00 | ||
| 004771 | Ships in | Call for pricing | ||
| 002714-T | Call for Shipping | ||||
