Neptune 5005 / 5003 Series Low Volume Hydraulic Diaphragm Metering Pumps are critical in oil and gas production, oil recovery & refineries. Applications include neat feeding of boiler chemicals, injecting antifoam agents, corrosion inhibitors and other additives injected at high pressures with very low volumes ranging down to quarts per day. Delivers very low, repeatable and accurate flows. Offers higher discharge pressures than mechanical metering pumps. Also available with Explosion-proof motors for use in hazardous environments. Comes standard with 1/3 HP, 1 PH, 115 VAC, 60C TEFC motor with other options available. Materials of construction options include: 316 Stainless Steel, Carpenter-20 or PVC Liquid Heads & PTFE Diaphragms. Capacities range from 0.35 gph (1.3 L/h) to 0.50 gph (1.9 L/h). 3,000 psi (206.8 bar) maximum pressure on certain configurations. Maximum Temperatures: 316SS & C-20 - 200°F (93°C); PVC - 125°F (52°C).

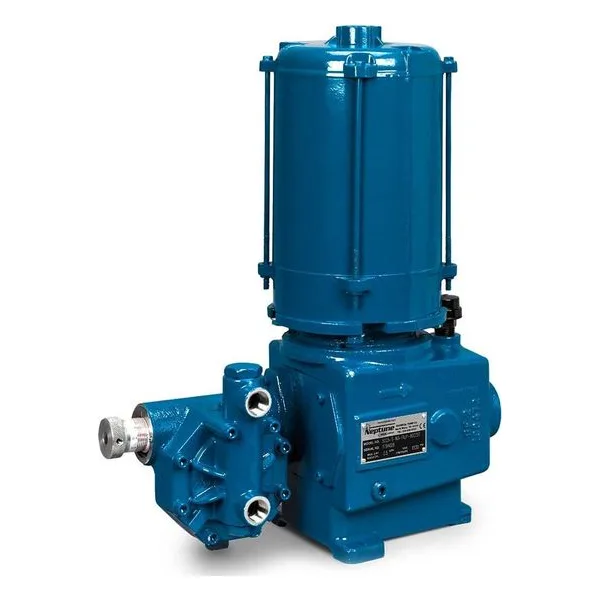

Neptune 5003 / 5005 Low Volume Hydraulic Metering Pumps
Search Results
(112 results)
Manufacturer:
Neptune Metering Pumps
Clear all5003-S-N3
Neptune Metering Pumps
5003-S-N3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.35 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5003SN3. PSG, A Dover Company.
5003-D-N3
Neptune Metering Pumps
5003-D-N3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.7 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5003DN3. PSG, A Dover Company.
5005-S-N3
Neptune Metering Pumps
5005-S-N3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.5 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5005SN3. PSG, A Dover Company.
5005-S-N4
Neptune Metering Pumps
5005-S-N4 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.5 GPH at 100 psi, 1500 psi Max Pressure. Carpenter 20 Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5005SN4. PSG, A Dover Company.
5005-S-N5
Neptune Metering Pumps
5005-S-N5 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.5 GPH at 100 psi, 150 psi Max Pressure. PVC Head, Valve Body & Seat; Glass Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5005SN5. PSG, A Dover Company.
5005-D-N3
Neptune Metering Pumps
5005-D-N3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 1 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5005DN3. PSG, A Dover Company.
5003-S-N3-2
Neptune Metering Pumps
5003-S-N3-2 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.35 GPH at 100 psi. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.5 HP, 115 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5003SN32. PSG, A Dover Company.
5003-S-N3-3
Neptune Metering Pumps
5003-S-N3-3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.35 GPH at 100 psi. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.5 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5003SN33. PSG, A Dover Company.
5003-S-N3-EX1
Neptune Metering Pumps
5003-S-N3-EX1 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.35 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), XP - (Explosion Proof) Motor Enclosure. Model 5003SN3EX1. PSG, A Dover Company.
5003-S-N3-EX3
Neptune Metering Pumps
5003-S-N3-EX3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.35 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), XP - (Explosion Proof) Motor Enclosure. Model 5003SN3EX3. PSG, A Dover Company.
5003-S-N3-TE1
Neptune Metering Pumps
5003-S-N3-TE1 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.35 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 115/230 Volts, 60 Hz, 1 Ph (Single Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5003SN3TE1. PSG, A Dover Company.
5003-S-N3-TE3
Neptune Metering Pumps
5003-S-N3-TE3 Neptune Pumps Low Capacity Hydraulic Metering Pump, Series 5005/5003. 0.35 GPH at 100 psi, 1500 psi Max Pressure. 316SS Head, Valve Body, Seat & Valve Checks; FKM O-Rings, PTFE Diaphragm. 0.33 HP, 230/460 Volts, 60 Hz, 3 Ph (Three Phase), TEFC - (Totally Enclosed Fan Cooled) Motor Enclosure. Model 5003SN3TE3. PSG, A Dover Company.
