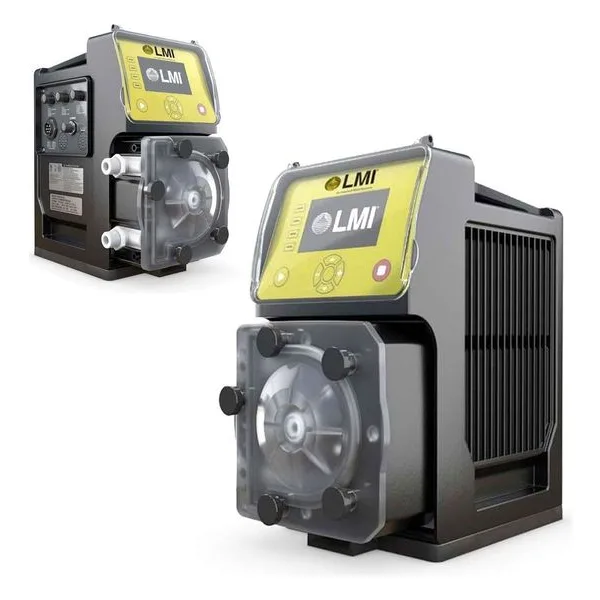

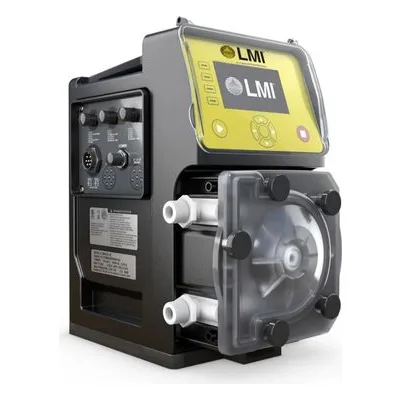

RTL Series Peristaltic Pump — Engineered for Performance, Reliability, and Sustainability

The NEW RTL Series peristaltic pump is purpose‑built to deliver exceptional metering performance while reducing maintenance costs and minimizing environmental impact.

Simple, Safe, and Fast Maintenance

• Completely sealed, quick‑change tube elements streamline service and reduce downtime

• Pump head design enables safe chemical release, protecting both personnel and the environment

• Low‑cost consumable parts significantly reduce long‑term maintenance expenses compared to cartridge‑based systems

Key Features

• 4.3” full‑color LCD display for intuitive operation

• Patented offset rotor technology for safer, easier tube maintenance

• Standard optical leak detection for enhanced safety

• Flow rates up to 32 GPH and pressures up to 100 PSI

• Comprehensive I/O package:

  • (4) digital inputs

  • (4) digital outputs

  • (2) analog 4–20 mA inputs and outputs

  • (2) 0–10 VDC inputs

• Standard MODBUS RTU with optional Profibus, MODBUS TCP, and Ethernet IP

• Onboard real‑time clock and calendar for scheduling, maintenance tracking, cycle counting, and performance reporting

• USB port for firmware updates and downloading performance data or event logs

Operational Advantages

• Consistent displacement per rotation ensures excellent metering accuracy

• Suction lift up to 30 ft with zero internal slip

• Self‑priming design delivers smooth, reliable chemical feed

• Only the tubing contacts the fluid — no valves, no check balls, no moving wetted parts

• No damage from dry running

• Will not vapor lock or air bind

Model Specifications
