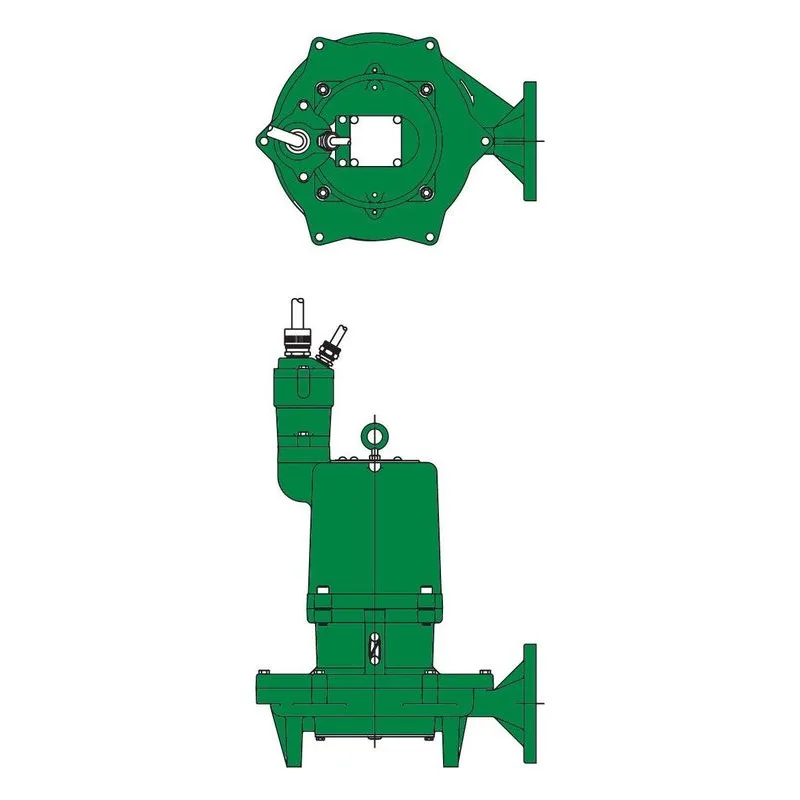

Image shown may not be actual product
527010177
Pentair Hydromatic 527010177 HPGFHX Submersible Sewage Grinder Pump, Model HPGFHX300GC. 3 HP, 575 Volts, 60 Hz, 3 Ph (Three Phase), 1750 RPM, Oil-Cooled Induction Motor. 3" 125# Flange Horizontal Discharge, Carbon / Ceramic w/Stainless Steel Body Seal. Cast Iron Housing & Casing, Stainless Steel Shaft & Semi-Open 5-Vane Impeller, 440C Hardened Cutter, Radial Single Row-Ball (Upper) / Thrust Single Row-Ball (Lower) Bearings. SOOW, W 14-4 Cord.
$11,389.14
- Best Price Guarantee!
- 2277PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
527010177
Pentair Hydromatic 527010177 HPGFHX Submersible Sewage Grinder Pump, Model HPGFHX300GC. 3 HP, 575 Volts, 60 Hz, 3 Ph (Three Phase), 1750 RPM, Oil-Cooled Induction Motor. 3" 125# Flange Horizontal Discharge, Carbon / Ceramic w/Stainless Steel Body Seal. Cast Iron Housing & Casing, Stainless Steel Shaft & Semi-Open 5-Vane Impeller, 440C Hardened Cutter, Radial Single Row-Ball (Upper) / Thrust Single Row-Ball (Lower) Bearings. SOOW, W 14-4 Cord.
| Accessories | Rail Systems, Controls & Accessories available separately |
| Bearing Material | Radial Single Row-Ball (Upper) / Thrust Single Row-Ball (Lower) |
| Casing Material | Cast Iron ASTM-48 |
| Configuration | Horizontal Discharge |
| Connections / Discharge (Inches) | 3" 125# Flange |
| Cord Type | SOOW, W |
| Cutter Material | 440C Hardened 55-60 Rockwell C |
| Explosion Proof | Yes: Class I, Division 1, Groups C & D |
| Head / Fittings | Stainless Steel Hardware |
| HP | 3 |
| Hz | 60 |
| Impeller Material | Stainless Steel |
| Impeller Style | Semi-Open 5-Vane |
| Insulation Class | Class F |
| Liquid Temperature | 140 °F |
| Model Number | HPGFHX300GC |
| Model Series | HPGFHX |
| Motor Housing Material | Cast Iron ASTM-48 |
| Motor Shaft Material | Stainless Steel |
| Motor Type | Oil-Cooled Induction |
| Phase | 3 Ph (Three Phase) |
| Product Notes | NEMA Type B |
| Shaft Seal Material | Faces: Carbon / Ceramic; Body: Stainless Steel |
| Speed (RPM) | 1750 |
| Spring | Stainless Steel |
| Type | Submersible Sewage Grinder Pump |
| Voltage | 575 |
| Wire/Cord Size | 14-4 |
