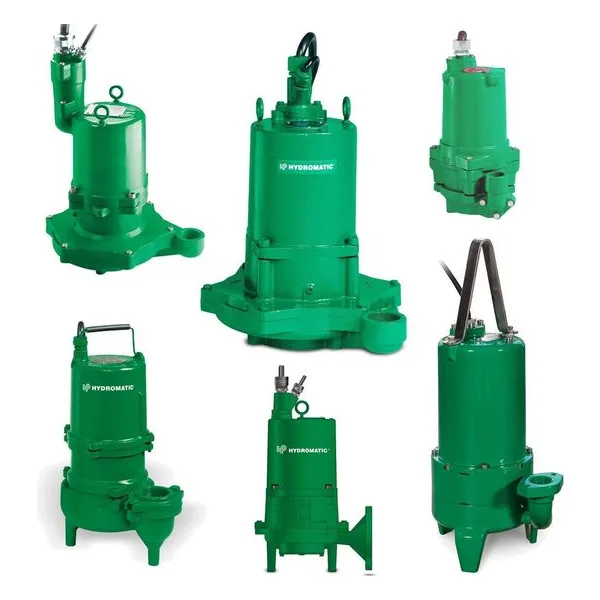

Hydromatic Submersible Grinder Pumps
Pentair Submersible Sewage Grinder Pumps Models: HPG200, HPGB, HPGBX, HPGF, HPGFH, HPGFHX, HPGFX, HPGH, HPGHH, HPGHHX, HPGHX, HPGX200, HVF200, HVH200, HVS200, HVR100, HVR200
HPG200 Centrifugal Grinder with Semi-Open Impeller
Key Features
Optimized for Low Pressure Sewer Systems: Specially engineered for efficient performance.
Semi-Open Impeller: Provides a steep, non-overloading operating curve.
Durable Motor: Ensures many years of reliable service.
Oil-Filled Motor: Maximizes heat dissipation and provides constant bearing lubrication.
Dual Cutter Design: Unique design that reduces solids to the smallest particle size.
High Torque Capacitor Start/Run: Ensures reliable starting under heavy load.
Customizable Options: Available in various configurations, with rail systems and accessories.
Rail Systems: Multiple options available.
Controls and Accessories: A range of controls and accessories to choose from.
HPGH/HPGHH Centrifugal Grinder with Semi-Open Impeller
Key Features
Dual Seals: Provides maximum moisture protection.
Oil-Filled Motor: Ensures optimal heat dissipation and constant bearing lubrication.
Exclusive Dual Cutter Design: Reduces solids to the smallest particle size.
Semi-Open Impeller: Offers a steep, non-overloading operating curve.
Customizable Options: Available in various configurations, including rail systems and accessories.
Rail Systems: Multiple options available.
Controls and Accessories: A range of controls and accessories to choose from.
HPGFX/HPGFHX Centrifugal Grinder with Semi-Open Impeller
Key Features
Explosion-Proof Design: Engineered for safety in hazardous environments.
Compliance: Meets Class 1, Division 1, Groups C and D standards.
Customizable Options: Available in multiple configurations with various rail systems and accessories.
Rail Systems: A range of options available.
Controls and Accessories
HPGX/HPGLX Centrifugal Grinder with Semi-Open Impeller
Key Features
Explosion-Proof Construction: Designed for safe use in hazardous conditions.
Certified Compliance: Meets Class 1, Division 1, Groups C & D standards.
Enhanced Moisture Protection: Equipped with dual seals.
Oil-Filled Motor: Ensures superior heat dissipation and continuous bearing lubrication.
Advanced Cutting Technology: Unique dual cutter design minimizes solids to the smallest particle size.
Efficient Impeller Design: Semi-open impeller provides a steep, non-overloading operating curve.
Flexible Options: Available in various configurations with multiple rail systems and accessories.
Rail Systems: Various options available.
Controls and Accessories
HVR200 Series Automatic Grinder Pumps
The Hydromatic HVR200 series pumps are designed with patented axial cutter technology that efficiently slices through solids and debris commonly found in domestic wastewater, preventing roping and clogging. These pumps come equipped with numerous standard features for hassle-free installation. The HVR200 series is a durable and cost-effective choice for residential and pressure sewage systems.
Key Features
Patented Axial Cutter Technology: Efficiently slices through solids and trash without roping or clogging.
Easy Installation: Equipped with standard features to simplify the installation process.
Additional Features
Wide Angle Float Switch
Oil-Filled Motor: Ensures maximum heat dissipation and continuous bearing lubrication.
Cable Entry System
Integrated Heat Sensor
Shaft Seals: Enhanced moisture protection.
Semi-Open Impeller: Provides a steep, non-overloading operating curve.
Axial Cutter System
Volute Case
HV200 Series Grinder Pumps
The Hydromatic HV200 Series grinders are meticulously designed to handle the increased debris and high pressures present in today's wastewater systems. Featuring a patented axial cutter and semi-open impeller, these pumps efficiently convert tough sewage solids into a fine slurry.
Key Features
Patented Axial Cutter Technology
Advanced Hydraulics
Legendary Seal Leak Detection
Additional Features
Cable Entry System
Oil-Filled Motor
Heat Sensor
Heavy 416 SST Shaft
Double Mechanical Shaft Seals
Seal Leak Probe
SST Semi-Open Impeller
Axial Cutter System
Lower Double Row Ball Bearings
Volute Case
