Image shown may not be actual product
526030367

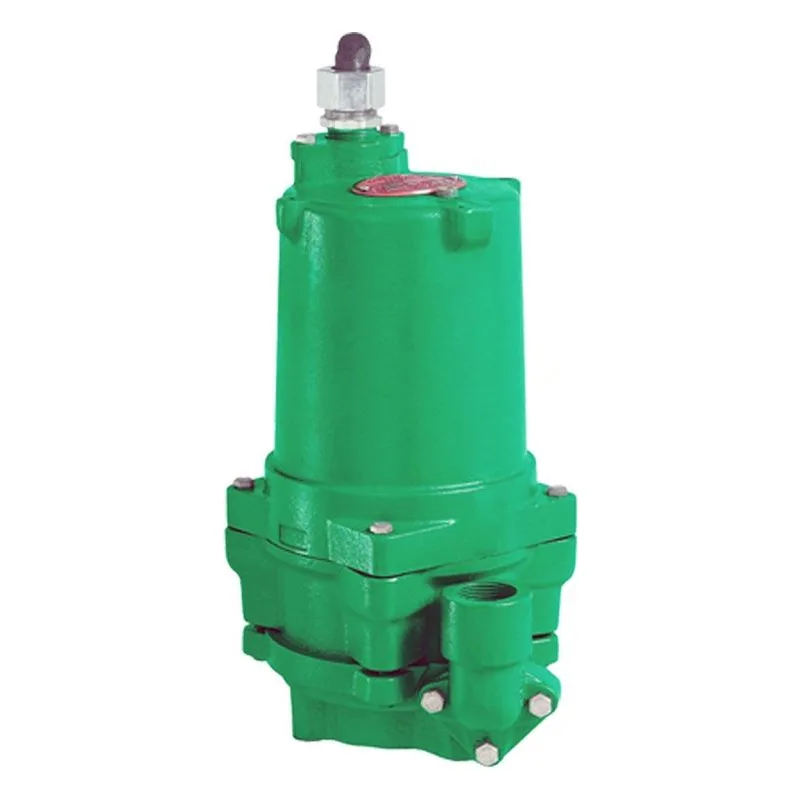

Pentair Hydromatic 526030367 HPG200 Submersible Sewage Grinder Pump, Model HPG200M5-2. 2 HP, 575 Volts, 60 Hz, 3 Ph (Three Phase), 3450 RPM, Oil-Cooled Induction Capacitor Start Motor. 1-1/4" NPT Vertical Discharge, Carbon/Ceramic Type 21 BF1C1 Dual Seal. Cast Iron Housing & Casing, 416 Stainless Steel Shaft, Valox Semi-Open Impeller, 440C Hardened Cutter, Ball Radial 6203 (Upper) / Ball Thrust 6306 (Lower) Bearings. 35' Type SOOW/SOOW-A, CSA/UL Approved 12-7 Cord.
- Overview
- Reviews
- Literature/Manuals
526030367
Pentair Hydromatic 526030367 HPG200 Submersible Sewage Grinder Pump, Model HPG200M5-2. 2 HP, 575 Volts, 60 Hz, 3 Ph (Three Phase), 3450 RPM, Oil-Cooled Induction Capacitor Start Motor. 1-1/4" NPT Vertical Discharge, Carbon/Ceramic Type 21 BF1C1 Dual Seal. Cast Iron Housing & Casing, 416 Stainless Steel Shaft, Valox Semi-Open Impeller, 440C Hardened Cutter, Ball Radial 6203 (Upper) / Ball Thrust 6306 (Lower) Bearings. 35' Type SOOW/SOOW-A, CSA/UL Approved 12-7 Cord.
| Accessories | Rail Systems, Controls & Accessories available separately |
| Bearing Material | Ball Radial 6203 (Upper) / Ball Thrust 6306 (Lower) |
| Casing Material | Cast Iron ASTM-48 |
| Configuration | Vertical Discharge |
| Connections / Discharge (Inches) | 1-1/4" NPT |
| Cord Length | 35' |
| Cord Type | Type SOOW/SOOW-A, Water Resistant, 600V, 60˚C, CSA/UL Approved |
| Cutter Material | 440C Hardened 55-60 Rockwell C |
| Head / Fittings | 316 Stainless Steel Hardware |
| HP | 2 |
| Hz | 60 |
| Impeller Material | Valox |
| Impeller Style | Semi-Open |
| Insulation Class | Class F |
| Liquid Temperature | 140 °F |
| Model Series | HPG200M5-2 |
| Motor Housing Material | Cast Iron ASTM-48 |
| Motor Shaft Material | 416 Stainless Steel |
| Motor Type | Oil-Cooled Induction Capacitor Start |
| Phase | 3 Ph (Three Phase) |
| Product Notes | NEMA Type B |
| Shaft Seal Material | Dual: Carbon/Ceramic |
| Shaft Seal Type | Type 21 BF1C1 |
| Speed (RPM) | 3450 |
| Type | Submersible Sewage Grinder Pump |
| Voltage | 575 |
| Wire/Cord Size | 12-7 |
