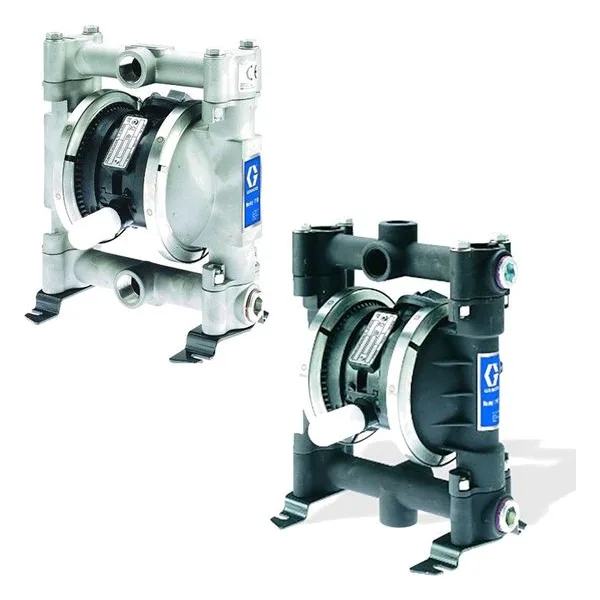

HUSKY 716 SERIES

OVERVIEW & FEATURES

• Medium-Flow Transfer: 3/4-inch AODD pump designed for industrial transfer and OEM systems requiring robust sealing.

• Leak-Free Reliability: Bolt-through fluid covers provide high-integrity sealing; seal-less design eliminates mechanical seal failures.

• Smooth Operation: Stall-free, low-pulsation air valve ensures rapid changeover; operates on low air pressure and is factory-tested.

• Configuration Options: Available in center-porting and end-porting; quiet operation with optional remote muffler support.

• Resilient Performance: Self-priming, runs dry without damage, stalls under pressure, and features a lube-free air system.

FLUID PORTS & CONNECTIONS

• Fluid Inlet/Outlet: 3/4 npt(f), bspt(f), or bspp(f).

• Air Ports: 1/4 npt(f) air inlet; 3/8 npt(f) air exhaust.

• Versatility: Re-orientable manifolds support diverse mounting requirements in industrial systems.

MATERIALS & WETTED PARTS

• Metal Pump Options: * Aluminum: Aluminum, stainless steel, PTFE, zinc-plated steel.

• Stainless Steel: 316 stainless steel, PTFE.

• Non-Wetted External Parts: Polypropylene, Stainless steel, Polyester (labels), Nickel-plated brass, and Epoxy-coated steel (feet).

APPLICATIONS & TEMPERATURES

• Uses: Chemical/solvent transfer, water treatment, coatings, adhesives, and inks. Ideal for systems requiring higher temperature limits.

• Operating Ranges:

• Acetal: 32°–180°F (0°–82°C)

• Polypropylene: 32°–175°F (0°–79°C)

• PVDF: 32°–200°F (0°–93°C)

• Metal (Alum/SST): 32°–225°F (0°–107°C)

TECHNICAL DATA

• Max Press/Flow: 100 psi (7 bar) | 16 gpm (61 L/min).

• Speed/Volume: 400 cpm | 0.04 gal (0.15 L) per cycle.

• Suction/Solids: 15 ft dry (25 ft wet) lift | 3/32 in (2.5 mm) max solids.

• Pressure Range: 30–100 psi (2.1–7 bar) air operating range.

• Serviceability: Features an easy-to-service air valve and field-replaceable ball checks.
