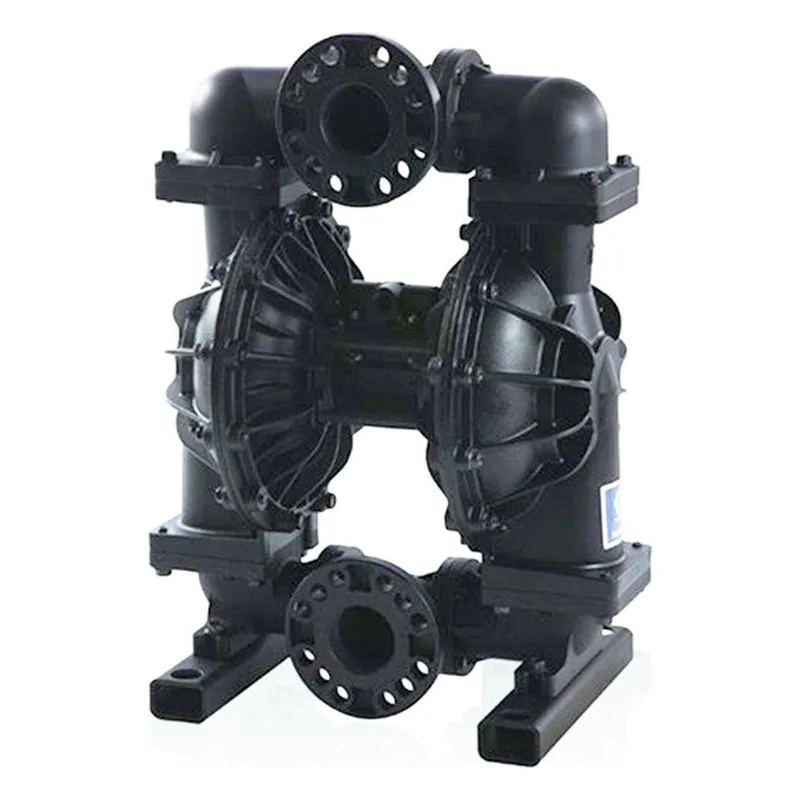

Image shown may not be actual product
652020
Graco 652020 Husky 3300 Series Air Operated Double Diaphragm Pump, Model 3300A-PA01AA1SSFKFKPT. 3" NPTF & ANSI/DIN Flange Connections, 300 GPM Maximum Flow. Aluminum Fluid Section, Aluminum Center Section, Aluminum Fluid Cover, Aluminum Air Valve / 316SS Seats / PTFE O-Rings, FKM Fluoroelastomer Balls, FKM Fluoroelastomer Diaphragms.
$9,480.00
- Best Price Guarantee!
- 1896PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
652020
Graco 652020 Husky 3300 Series Air Operated Double Diaphragm Pump, Model 3300A-PA01AA1SSFKFKPT. 3" NPTF & ANSI/DIN Flange Connections, 300 GPM Maximum Flow. Aluminum Fluid Section, Aluminum Center Section, Aluminum Fluid Cover, Aluminum Air Valve / 316SS Seats / PTFE O-Rings, FKM Fluoroelastomer Balls, FKM Fluoroelastomer Diaphragms.
| Air Consumption | 335 scfm |
| Air Inlet | 3/4" NPTF |
| Air Supply Pressure | 20 - 125psi |
| Center Section | Aluminum |
| Configuration | Center Flange |
| Connection Type | NPTF & ANSI/DIN Flange |
| Diaphragm | FKM Fluoroelastomer |
| Discharge NPT (Inches) | 3" |
| Discharge Volume Per Cycle | 2.9 Gal |
| Fluid Cover Matl | Aluminum |
| Max Cycles Per Minute | 50 |
| Maximum Flow (GPM) | 300 GPM |
| Maximum Operating Temperature | -40° to 275° F |
| Maximum Working Pressure (PSIG) | 125psi |
| Max Suction Lift | 16' (wet)/31' (dry) |
| Model Number | 3300A-PA01AA1SSFKFKPT |
| Motor | Pneumatic |
| Options | Use with Standard Diaphragms |
| Part Type | Husky AODD Pump |
| Quick Specs | HUSKY PUMP,3300A-PA01AA1SSFKFKPT |
| Solids (Inches) | 1/2" |
| Suction NPT (Inches) | 3" |
| UPC | 633955222373 |
| Valve Balls | FKM Fluoroelastomer |
| Valve / Seat / O-Ring | Aluminum Air Valve / 316SS Seats / PTFE O-Rings |
| Valve Type | Ball Check Valve |
| Wetted Parts | Aluminum |
Husky 3300 Air Operated Double Diaphragm Pumps Information
Husky 3300 — 3" Diaphragm Pump
Unified Pneumatic + Electric Platform
Overview
The Husky 3300 is a 3‑inch diaphragm pump platform engineered for high‑flow industrial transfer. Available in both pneumatic and electric configurations, it supports flow rates up to 300 gpm (pneumatic) and 220 gpm (electric). Both versions share a wetted‑section architecture and ANSI‑compatible 3‑inch porting, providing a versatile solution for demanding chemical, industrial, and wastewater applications.
Performance & Reliability
The pneumatic version features a stall-resistant air valve with 40% improved efficiency, while the electric model offers up to 80% energy savings and near-zero in-plant noise. Both drives utilize a seal-less design that supports run-dry operation and handles shear-sensitive materials. Overmolded diaphragm options are available to extend service life up to five times longer than standard designs.
Materials & Construction
| Component | Available Options |
|---|---|
| Fluid Sections | Aluminum, Stainless Steel, Polypropylene |
| Seats | Acetal, Polypropylene, Santoprene, Geolast, Stainless Steel |
| Balls | PTFE, TPE, Buna‑N, FKM, Santoprene, Stainless Steel |
| Diaphragms | PTFE, TPE, Buna‑N, FKM, Santoprene, Geolast |
*Select models carry ATEX, CE, UL, or CSA certifications.
Drive System
The Pneumatic model operates from 20 to 125 psi with a lube‑free, externally accessible air valve. The Electric model uses a high-efficiency AC induction motor with VFD control for precise metering. The electric version maintains the core benefits of self-priming and run-dry capability while drastically reducing operating costs.
Installation & Serviceability
The 3300 fits a standard AODD footprint for easy integration. Maintenance is simplified through fast access to diaphragms and check-valves, and the pneumatic air valve can be serviced without removing the pump from the system.
Applications
Ideally suited for chemical transfer, paint and coatings, oil & gas, mine dewatering, wastewater handling, and abrasive slurries. Its high-flow capability and choice of drive systems make it a dependable choice for facilities seeking reliability and energy efficiency.
