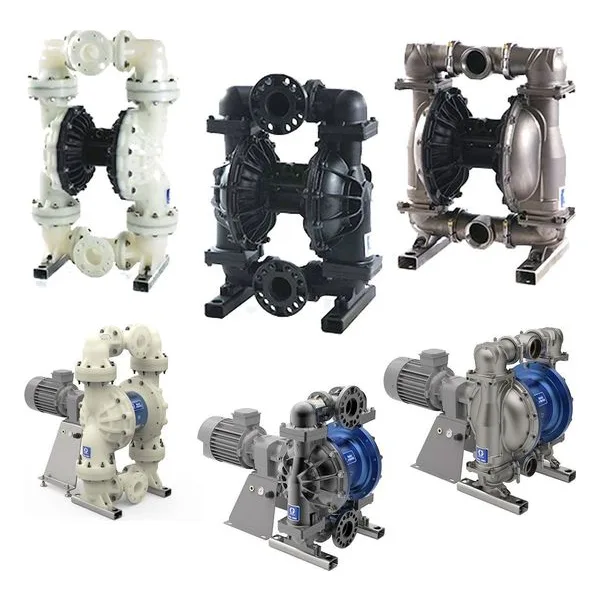

HUSKY 3300 SERIES
OVERVIEW & FEATURES
Dual Drive Performance: 3-inch pump platform available in pneumatic (stall-free, low-pulsation) or electric (up to 80% energy savings) configurations.
Class-Leading Flow: Highest flow rate in its class, delivering up to 300 gpm (pneumatic) or 220 gpm (electric).
Extended Life: Overmolded diaphragm designs offer up to 5× longer life; seal-less architecture eliminates mechanical seal failures.
Versatile Handling: Self-priming and run-dry capable; safely transfers slurries, abrasives, and shear-sensitive materials with solids up to 1/2 inch.
Control & Safety: Electric models are VFD-compatible for metering/process control with near-zero noise pollution; ATEX configurations available.
Rugged Construction: Heavy-duty build with a one-piece center section to reduce leak points; ANSI-compatible porting for drop-in replacement.
FLUID PORTS
3 in ANSI/DIN flange (Polypropylene).
3 in npt(f) or 3 in bspt (Aluminum, Stainless Steel).
MATERIALS
Fluid Section: Aluminum, Stainless Steel, Polypropylene.
Wetted Parts (Seats/Balls/Diaphragms):
Seats: Acetal, Buna-N, FKM, Geolast, Polypropylene, Santoprene, PTFE, TPE, Stainless Steel.
Balls: Acetal, Polychloroprene, Polypropylene, Santoprene, Geolast, PTFE, TPE, Stainless Steel.
Diaphragms: Buna-N, Polychloroprene (std/overmolded), FKM, Geolast, PTFE, PTFE/EPDM overmolded, PTFE/Santoprene 2-piece, Santoprene, TPE.
Manifold O-Rings: Buna-N, PTFE, FKM, Geolast, Santoprene, TPE.
DRIVE SYSTEMS
Pneumatic: Stall-free air valve; lube-free operation; 20–125 psi range (material-dependent).
Electric: High-efficiency AC induction motor (7.5 HP); stall-under-pressure capability; 3-phase 230V/460V; IP55/IP56 rating.
APPLICATIONS
Chemical/solvent transfer, oil & gas, mine dewatering, abrasive slurries, paints/coatings, and high-flow industrial wastewater.
TECHNICAL DATA
Max Fluid Pressure: 125 psi (Metal/Alum center) | 100 psi (Poly or Poly center).
Max Flow: 300 gpm (Pneumatic) | 220 gpm (Electric).
Suction/Solids: 31 ft wet (16 ft dry) lift | 1/2 in (13 mm) max solids.
Displacement: 2.9 gal (Standard) | 2.0 gal (Overmolded) per cycle.
Operating Range: 20–125 psi (Alum center) | 20–100 psi (Poly center).
Air Consumption: 275–335 scfm max | Noise: Near-zero noise on electric drive.
