02SH10FFRM34

Image shown may not be actual product

02SH10FFRM34

0 reviews

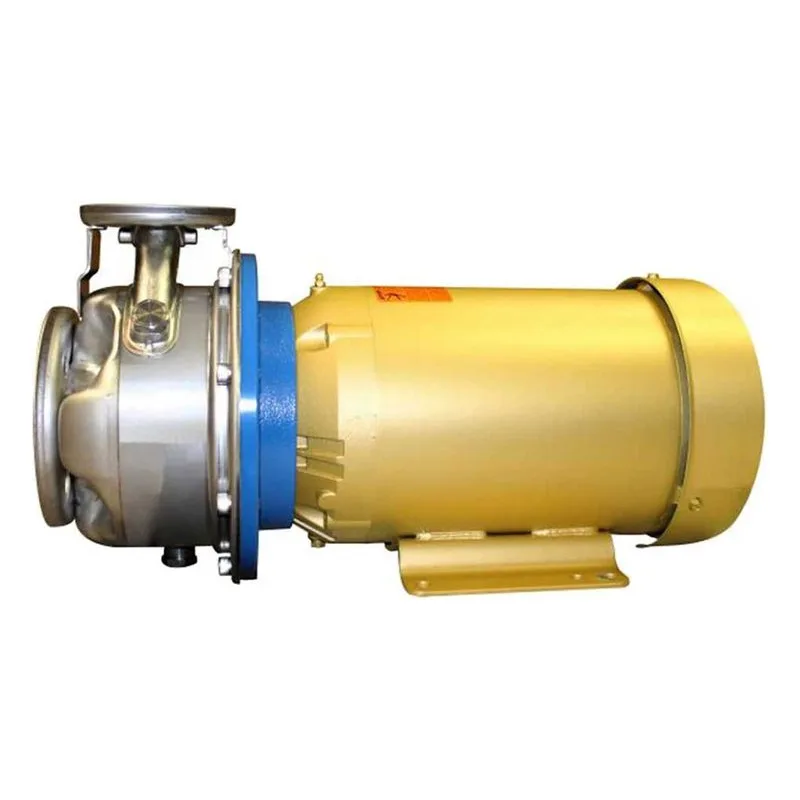

Goulds Water Technology 02SH10FFRM34 e-SH SS End Suction Centrifugal Pump. Pump Size 2x2-1/2-10 with 2.5" (2-1/2") ANSI Flange Suction & 2" ANSI Flange Discharge, 7.94" (7-15/16") 316L SS (Stainless Steel) Impeller, and Car/SilCar/EPR Mechanical Seal. 230 PSI Max Pressure, and 250°F Max Temperature, a Xylem Brand Product.

Pump Catalog Price
Retail Price: $7,064.40
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 02SH10FFRM34

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

02SH10FFRM34

Adapter Material	Gray Cast Iron Class 20B
Bearing Housing	Gray Cast Iron Class 20B
Bearing Material	Steel
Casing Material	316L Stainless Steel
Casing Wear Ring Material	316L Stainless Steel
Discharge NPT (Inches)	2" ANSI Flange
Elastomer	EPR
Flange	ANSI Class 150 Flanges
Impeller Code	F
Impeller Material	316L Stainless Steel
Impeller Size(Inches)	7.9375" (7-15/16")
Impeller Style	Enclosed Impeller
Material	AISI 316L Stainless Steel
Maximum Pressure (PSI)	230 PSI

Metal Parts	316 Stainless Steel
Motor Frame Size	T-Frame
Pressure Rating BAR	15 Bars
Pump Size	2 x 2-1/2 - 10
Quick Specs	BARE PUMP 7.94" 20X25X100S4
Rotary	Carbon
Seal Code	4
Shaft Seal Material	Carbon / Silicon Carbide / EPR
Shaft Sleeve Material	316 Stainless Steel
Stationary	Silicon Carbide
Suction NPT (Inches)	2.5" ANSI Flange
UPC	19299865492
Wetted Parts	316L Stainless Steel

e-SH Centrifugal Pumps Information

e-SH Features

• AISI 316 stainless steel construction for reduced corrosion and improved strength and reliability
• Back pull-out design allows easy access to impeller, bracket and motor to simplify maintenance
• Interchangeable John Crane Type 21 mechanical seals with a variety of materials for multiple applications
• Replaceable wear rings to maximize efficiency through the total life of the pump
• NSF/ANSI 61 Drinking Water System Components Standard (pumps assembled in factory)

Pump Specifications

• Motor: Standard 60 Hz NEMA premium efficient
• Maximum flow: 1,140 gpm
• Maximum head: 464 ft. TDH
• Maximum working pressure: 230 psi
• Maximum temperature: 250°F
• Hydraulic performance: ANSI/HI 14.6 Grade 2B
• Suction and discharge flanges: 1” – 4” ANSI
class 150 flanges

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	e-SH Technical Brochure & Pump Curves (2022)		View
	e-SH Pumps Instruction Manual		View

Repair Parts for 02SH10FFRM34

Product	qty.	price
	1L458	Lead Time TBD	Call for pricing
	2L795	Lead Time TBD	$1,169.70	Select item
	4L467	Ships in 3-5 Days	$104.30	Select item
	1L468	Lead Time TBD	$747.60	Select item
	4L201	Ships in	$100.80	Select item
	4L457	Ships in 1 Day	$410.20	Select item
	4K261	Lead Time TBD	$30.80	Select item
	13K301	Lead Time TBD	$39.20	Select item
	4L463	Lead Time TBD	$186.90	Select item
	1L91	Lead Time TBD	$1,775.20	Select item
	13L86	Ships in	$93.80	Select item
	13L88	Ships in	Call for pricing
	10K20	Lead Time TBD	$567.70	Select item
	4K500	Lead Time TBD	$93.10	Select item
	6L60	Ships in	$68.60	Select item
	5K308	Lead Time TBD	$79.80	Select item
	5K308	Lead Time TBD	$79.80	Select item
	5L110	Lead Time TBD	$220.50	Select item
	1K147	Lead Time TBD	$305.20	Select item
4L411	Call for Shipping
	4K292	Ships in	$171.50	Select item
	4K293	Ships in	$197.40	Select item
	4K556	Lead Time TBD	$528.50	Select item
	5K163	Lead Time TBD	$123.90	Select item
	5K164	Lead Time TBD	$123.90	Select item
5L164	Call for Shipping
	5K246	Lead Time TBD	$116.90	Select item
	6K80	Lead Time TBD	$30.80	Select item
	13K80	Lead Time TBD	$49.00	Select item
	13K183	Lead Time TBD	$11.20	Select item
	13K184	Lead Time TBD	$29.40	Select item
	13K158	Lead Time TBD	Call for pricing
	14L60	Lead Time TBD	$2,292.50	Select item
	RPKESHM-2	Ships in	$836.50	Select item
