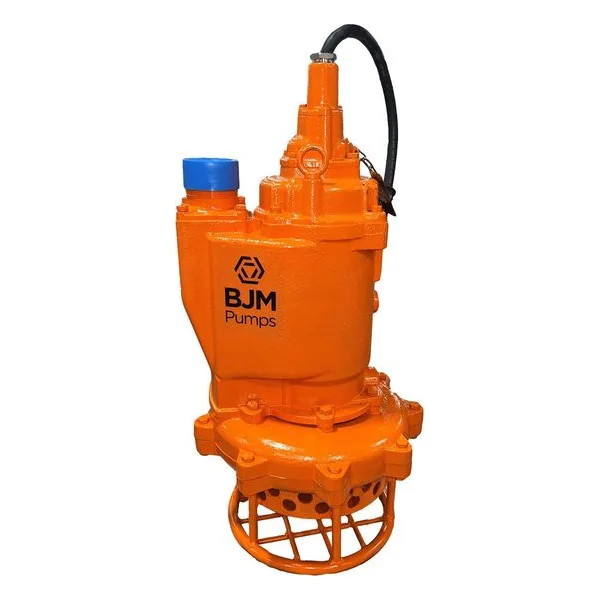

The KZN MAXDuty™ Advantage: Built for Extreme Wear Environments
The BJM Pumps KZN MAXDuty™ Series is engineered for the most aggressive slurry applications where standard pumps experience rapid wear. Featuring a patented split-case high-chrome volute and hardened abrasion-resistant components, these pumps deliver maximum durability, extended service life, and reduced maintenance downtime.
Designed for demanding industries such as mining, steel production, and sand processing, the MAXDuty™ Series provides continuous, reliable performance in high-abrasion conditions.
Engineered for Maximum Wear Resistance
The KZN MAXDuty™ Series is built with 28% high-chrome iron components in all critical wear areas, including the impeller, agitator, wear plate, and volute. This significantly increases resistance to abrasion from sand, sludge, and slurry.
A heavy-duty agitator keeps solids suspended during operation, improving efficiency and reducing sediment buildup. The semi-open impeller design allows the pump to handle high concentrations of abrasive solids while minimizing clogging.
The patented split-case volute design enhances both durability and serviceability, allowing faster maintenance and reduced downtime.
Key Features & Benefits
- Maximum-Duty Construction: High-chrome (28%) components for extreme abrasion resistance
- Split-Case Volute Design: Improves durability and simplifies maintenance
- Heavy-Duty Agitator: Keeps solids suspended for efficient slurry pumping
- Semi-Open Impeller: Handles high concentrations of abrasive solids
- Advanced Seal System: Double silicon carbide mechanical seals in oil-filled chamber
- Motor Protection: Thermal and amperage overload protection
- Optional Seal Minder®: Moisture detection for early seal failure warning
- Heavy-Duty Build: Class 30 ductile iron with hardened volute and motor housing
- Top Discharge Design: Improved cooling and pump-down capability
- Portable Design: Heavy-duty lifting rings for jobsite mobility
Built for Continuous Duty in Harsh Conditions
KZN MAXDuty™ pumps are designed for continuous-duty operation in the most demanding environments. The oil-filled seal chamber protects the double mechanical seals while providing cooling and lubrication.
Class H motor insulation allows the motor to operate reliably under high thermal loads, while embedded overload protection safeguards against damage.
The modular and service-friendly design reduces maintenance time and helps lower total cost of ownership.
Performance Specifications
- Horsepower (HP): 5 HP to 10 HP
- Max Flow: Up to ~625 GPM
- Max Head: Up to ~68 ft
- Max Solids Handling: Up to ~1"
- Max Liquid Temperature: 104°F (40°C)
- Motor Speed: ~1750 RPM
- Motor Insulation: Class H
Typical Services & Ideal Applications
The KZN MAXDuty™ Series is ideal for heavy-duty slurry handling in highly abrasive environments. Common applications include mining operations, steel mill scale handling, sand and gravel processing, power plant ash handling, and industrial slurry transfer.
These pumps are specifically designed for conditions where extended wear life, minimal downtime, and reduced maintenance are critical to operations.
