The JXHF Series Advantage: Maximum Performance in Extreme Conditions

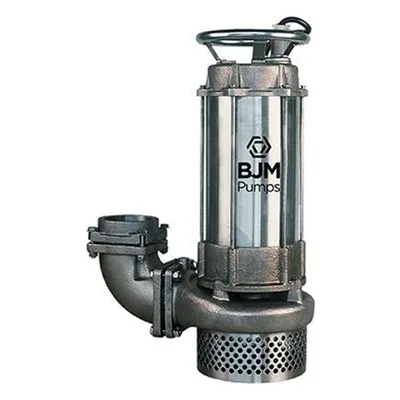

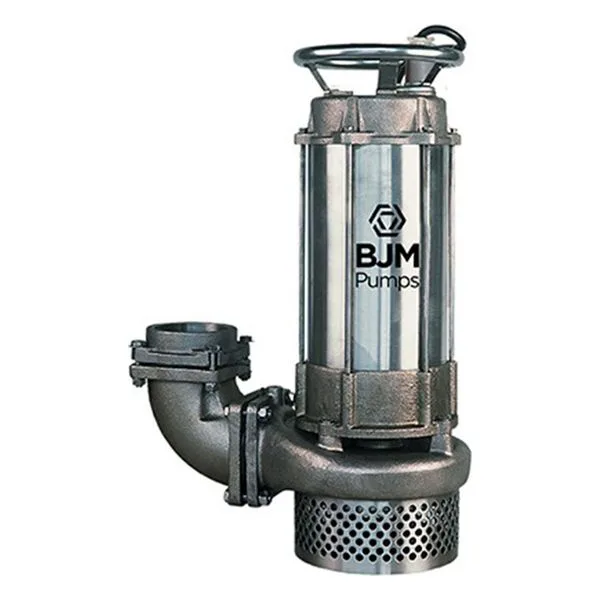

The BJM Pumps JXHF Series Fahrenheit® Submersible Pumps are engineered to deliver high head performance while operating in both high-temperature and corrosive environments. Combining cast 316 stainless steel construction with the ability to handle liquids up to 200°F (93°C), the JXHF Series provides reliable operation where heat, pressure, and chemical exposure are all present.
Designed for demanding industrial applications, this series offers the strength, durability, and hydraulic performance required in the harshest operating conditions.
Engineered for Heat, Pressure, and Corrosion
The JXHF Series integrates high head capability with corrosion-resistant materials and high-temperature motor design. Fully cast 316 stainless steel construction eliminates welds and improves resistance to chemical attack, while Class R motor insulation allows the pump to operate safely in elevated temperatures.
With high-speed 2-pole motors operating at approximately 3450 RPM, the JXHF Series generates strong discharge pressure, making it ideal for applications requiring both lift and durability.
Key Features & Benefits
- High Temperature Capability: Handles liquids up to 200°F (93°C)
- High Head Performance: Capable of generating up to ~145 ft of head
- Corrosion-Resistant Construction: Cast 316 stainless steel with no welds
- Durable Seal System: Double mechanical seal with independent lip seal
- Seal Minder® Monitoring: Moisture detection for early warning of seal failure
- Thermal Protection: Embedded sensors protect against overheating
- Side Discharge Design: Supports flexible installation and guide rail systems
Built for Continuous Duty in Harsh Environments
The JXHF Series is designed for continuous-duty operation in aggressive environments where high temperature and pressure are present. The use of Class R insulation enables motors to withstand extreme heat, while integrated thermal sensors provide protection against overheating.
A triple-layer sealing approach—featuring a double mechanical seal combined with a lip seal—helps prevent fluid intrusion and ensures long service life even under demanding conditions.
Performance Specifications
- Horsepower (HP): 2 HP to 10 HP
- Max Flow: Up to ~340+ GPM
- Max Head: Up to ~145 ft
- Max Solids Handling: Up to 3/8"
- Max Liquid Temperature: 200°F (93°C)
- Voltage Options: Three-phase options available
- Motor Speed: ~3450 RPM
Typical Services & Ideal Applications
The JXHF Series is designed for high-temperature, high-head dewatering applications involving corrosive fluids. These pumps are commonly used in chemical processing plants, industrial wastewater systems, heated process applications, and facilities handling hot, aggressive liquids.
Their combination of thermal resistance, corrosion-resistant construction, and high-pressure capability makes them ideal for environments where conventional pumps cannot perform reliably.
