AF0810C11CC15-1

Image shown may not be actual product

AF0810C11CC15-1

0 reviews

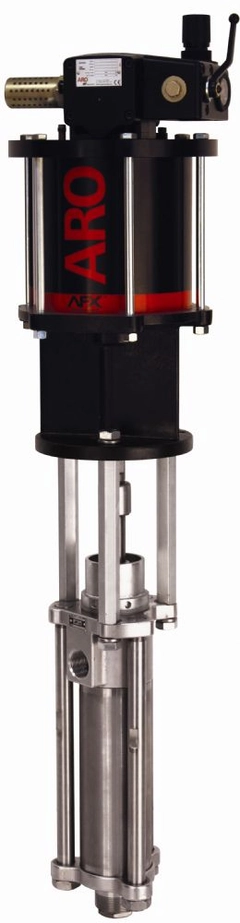

ARO AF0810C11CC15-1 AFX Series Air-Operated Two-Ball Piston Pump. 8" Motor, 10:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, Carbon Graphite filled PTFE (Upper), Carbon Graphite filled PTFE (Lower) Packing, No Spring, Stainless Steel w/ Hard Chrome Plating Plunger. 2 - 11-1/2 NPTF - 1 Inlet, 1-1/4 - 11-1/2 NPTF - 1 Outlet, 300 - 1200 psig (20.7 - 82.8 bar) Pressure Range.

$11,158.05

Best Price Guarantee!
2231PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: AF0810C11CC15-1

Overview
Reviews
Literature/Manuals

AF0810C11CC15-1

Air Inlet	3/4 - 14 NPTF - 1
CCN Number	46725776
Discharge NPT (Inches)	1-1/4 - 11-1/2 NPTF - 1
Discharge Volume Per Cycle	59.8 in³
Inlet Pressure (PSI)	30 - 120 psig (2.1 - 8.3 bar)
Material	300 Series Stainless Steel
Model Series	ARO Force Pneumatic Two Ball Piston Pumps
Motor	8"
Mounting Type	Remote Mounting
Options	Integrated Ball Valve Regulator

Other Factors	6" Stroke Length
Packing Gland	Carbon Graphite filled PTFE (Upper), Carbon Graphite filled PTFE (Lower)
Pressure Range	300 - 1200 psig (20.7 - 82.8 bar)
Product Notes	Stainless Steel w/ Hard Chrome Plating Plunger
Pump Size	10:1
Quick Specs	AFX 2 BALL PUMP AF0810C11CC15-1
Spring	No Spring
Suction NPT (Inches)	2 - 11-1/2 NPTF - 1
Type	Two Ball
