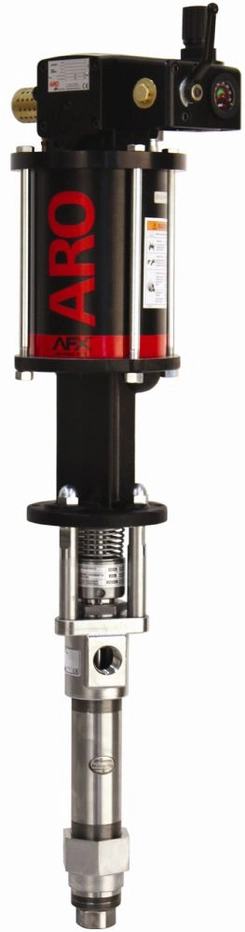

ARO Force Pneumatic Driven Two Ball Piston Pumps - ARO Force 2-ball pumps are among the most versatile in the ARO Force line. They are capable of handling applications from simple transfer to the extrusion of low- to medium-viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min).
Search Results
(346 results)
Sort & Filter
2
LM2305A-11-B
ARO
ARO LM2305A-11-B Thunder Series Air Operated Two Ball Double Acting Piston Oil Pump. 3" Motor, 5:1 Ratio, Container Suitability: Stub. Carbon Steel, Polyurethane (Upper & Lower) Packing, Steel Plunger. 1-1/2 - 11-1/2 NPTF - 1 Inlet, 1/2 - 14 NPTF - 1 Outlet, 0 - 750 psig (0 - 51.7 bar) Pressure Range.
NM2202A-11-C31
ARO
ARO NM2202A-11-C31 N-Series Air-Operated Two-Ball Piston Pump. 2" Motor, 2:1 Ratio, Container Suitability: Universal (Stub). Carbon Steel, UHMW-PE (Upper & Lower) Packing, No Spring, Carbon Steel Plunger. 1-1/2 - 11-1/2 NPTF Inlet, 3/4 - 14 NPTF Outlet, 0 - 351 psi (0 - 24.2 bar) Pressure Range.
NM2304B-11-31B
ARO
ARO NM2304B-11-31B N-Series Air-Operated Two-Ball Piston Pump. 3" Motor, 4:1 Ratio, Container Suitability: Universal (Stub). Stainless Steel, Virgin PTFE (Upper & Lower) Packing, Coil, Ceramic Plunger. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF Outlet, 60 - 795 psig (4.1 - 54.8 bar) Pressure Range.
AF0409A13PFL1
ARO
ARO AF0409A13PFL1 AFX Series Air-Operated Two-Ball Piston Basic Oil Pump. 4-1/4" Motor, 9:1 Ratio, Container Suitability: Remote Mounting. Carbon Steel, Polyurethane (Upper), UHMW-PE (Lower) Packing, Coil Spring No Solvent Cup, Carbon Steel Plunger. Immersed Inlet, 3/4 - 14 NPTF - 1 Outlet, 270 - 1350 psig (18.6 - 93.1 bar) Pressure Range.
LM2203A-11-C
ARO
ARO LM2203A-11-C Thunder Series Air Operated Two Ball Double Acting Piston Oil Pump. 2" Motor, 3:1 Ratio, Container Suitability: Stub. Carbon Steel, 3/4 - 14 N.P.T Inlet, 1/2 - 14 NPTF - 1 Outlet, 0 - 450 psi (0 - 31.0 bar) Pressure Range.
612041-3
ARO
ARO 612041-3 2" Differential Piston Transfer Pump. 2" Motor, 1:1 Ratio, Container Suitability: 55 Gallon (208.2 L). Carbon Steel Nickel-Plated, PTFE (Upper & Lower) Packing, Carbon Steel Plunger. Immersed Inlet, 3/4 - 14 NPTF - 1 Outlet, 0 - 150 psi (0 - 10.3 bar) Pressure Range.
AF0409C11SS22
ARO
ARO AF0409C11SS22 AFX Series Air-Operated Two-Ball Piston Pump. 4-1/4" Motor, 9:1 Ratio, Container Suitability: Remote Mounting. CF8M Stainless Steel, Virgin PTFE (Upper & Lower) Packing, Coil Spring Standard Solvent Cup, 316 Stainless Steel Plunger. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF - 1 Outlet, 270 - 1350 psig (18.6 - 93.1 bar) Pressure Range.
NM2304B-11-C11
ARO
ARO NM2304B-11-C11 N-Series Air-Operated Two-Ball Piston Pump. 3" Motor, 4:1 Ratio, Container Suitability: Universal (Stub). Stainless Steel, UHMW-PE (Upper & Lower) Packing, Coil, 300 Series Stainless Steel Plunger. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF Outlet, 60 - 795 psig (4.1 - 54.8 bar) Pressure Range.
650110-1C
ARO
ARO 650110-1C 2" Differential Piston Transfer Pump. 2" Motor, 2:1 Ratio, Container Suitability: 55 Gallon (208.2 L). Carbon Steel, PTFE (Upper & Lower) Packing, Carbon Steel Plunger. Immersed Inlet, 1/2 - 14 PTF SAE Spec.Short Outlet, 60 - 300 psig (4.1 - 20.7 bar) Pressure Range.
650110-C
ARO
ARO 650110-C 2" Differential Piston Transfer Pump. 2" Motor, 2:1 Ratio, Container Suitability: 55 Gallon (208.2 L). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Carbon Steel Plunger. Immersed Inlet, 1/2 - 14 PTF SAE Spec.Short Outlet, 60 - 300 psig (4.1 - 20.7 bar) Pressure Range.
650311-4
ARO
ARO 650311-4 N-Series Air-Operated Two-Ball Piston Pump. 2" Motor, 2:1 Ratio, Container Suitability: Universal (Stub). Stainless Steel, UHMW-PE (Upper & Lower) Packing, Plain Rod and Tube. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF - 1 Outlet, 60 - 343 psig (4 .1 - 23 .6 bar) Pressure Range.
650312-4
ARO
ARO 650312-4 N-Series Air-Operated Two-Ball Piston Pump. 2" Motor, 2:1 Ratio, Container Suitability: 55 Gallon (208.2 L). Stainless Steel, PTFE (Upper & Lower) Packing, Plain Rod and Tube. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF - 1 Outlet, 60 - 343 psig (4 .1 - 23 .6 bar) Pressure Range.
