AF0409C11SS22

Image shown may not be actual product

AF0409C11SS22

0 reviews

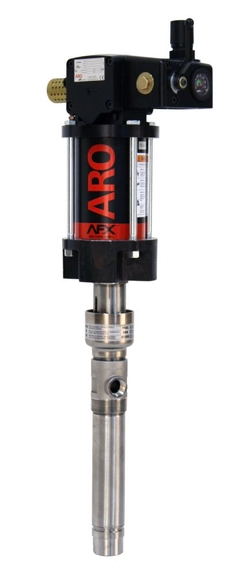

ARO AF0409C11SS22 AFX Series Air-Operated Two-Ball Piston Pump. 4-1/4" Motor, 9:1 Ratio, Container Suitability: Remote Mounting. CF8M Stainless Steel, Virgin PTFE (Upper & Lower) Packing, Coil Spring Standard Solvent Cup, 316 Stainless Steel Plunger. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF - 1 Outlet, 270 - 1350 psig (18.6 - 93.1 bar) Pressure Range.

$4,355.91

Best Price Guarantee!
870PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: AF0409C11SS22

Overview
Reviews
Literature/Manuals

AF0409C11SS22

Air Inlet	1/2 - 14 NPTF - 1
CCN Number	45650876
Discharge NPT (Inches)	3/4 - 14 NPTF - 1
Discharge Volume Per Cycle	11.0 in³
Inlet Pressure (PSI)	30 - 150 psig (2.1 - 10.3 bar)
Material	CF8M Stainless Steel
Model Series	ARO Force Pneumatic Two Ball Piston Pumps
Motor	4-1/4"
Mounting Type	Remote Mounting
Other Factors	4" Stroke Length

Packing Gland	Virgin PTFE (Upper & Lower)
Pressure Range	270 - 1350 psig (18.6 - 93.1 bar)
Product Notes	316 Stainless Steel Plunger
Pump Size	9:1
Quick Specs	PUMP ASM 4-1/4" 9:1 2 AF0409C11SS22
Spring	Coil Spring Standard Solvent Cup
Suction NPT (Inches)	1-1/4 - 11-1/2 NPSM
Type	Two Ball
