Image shown may not be actual product

AF0660G11KK48

0 reviews

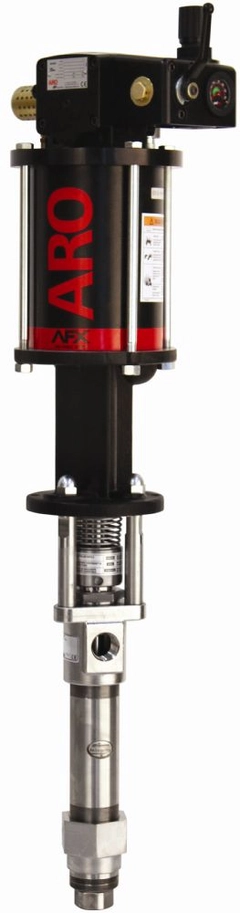

ARO AF0660G11KK48 AFX Series Air-Operated Two-Ball Piston Pump. 6" Motor, 60:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, Glass-Filled PTFE (Upper & Lower) Packing, Multiple Wave Spring w/ 316 Stainless Steel Balls, Hardened Stainless Steel w/ Ceramic coating Plunger. 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 1800 - 6172 psig (124.1 - 425.7 bar) Pressure Range.

$6,815.28

Best Price Guarantee!
1362PumpPoints

Item: AF0660G11KK48

Overview
Reviews
Literature/Manuals

AF0660G11KK48

Air Inlet	1/2 - 14 NPTF - 1
CCN Number	46737375
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Discharge Volume Per Cycle	5.5 in³
Inlet Pressure (PSI)	30 - 100 psig (2.1 - 6.9 bar)
Material	300 Series Stainless Steel
Model Series	ARO Force Pneumatic Two Ball Piston Pumps
Motor	6"
Mounting Type	Remote Mounting
Other Factors	6" Stroke Length

Packing Gland	Glass-Filled PTFE (Upper & Lower)
Pressure Range	1800 - 6172 psig (124.1 - 425.7 bar)
Product Notes	Hardened Stainless Steel w/ Ceramic coating Plunger
Pump Size	60:1
Quick Specs	AFX 2 BALL PUMP AF0660G11KK48
Spring	Multiple Wave Spring w/ 316 Stainless Steel Balls
Suction NPT (Inches)	1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male)
Type	Two Ball
