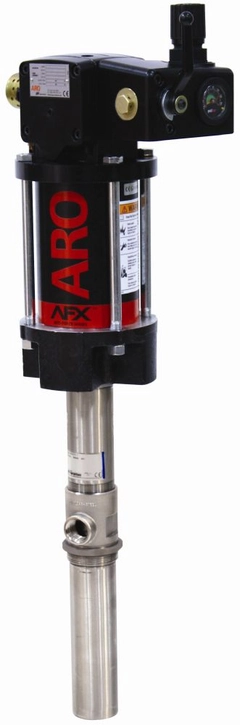

• ARO Pump AF0409C81BBW2 Ingersoll Rand

Image shown may not be actual product

ARO

AF0409C81BBW2

0 reviews

ARO AF0409C81BBW2 AFX Series Air-Operated Two-Ball Piston Pump. 4-1/4" Motor, 9:1 Ratio, Container Suitability: Remote mounting with Optional inlet. CF8M Stainless Steel, Buna N (Upper & Lower) Packing, No Spring No Solvent Cup, 316 Stainless Steel Plunger. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF - 1 Outlet, 270 - 1350 psig (18.6 - 93.1 bar) Pressure Range.

$2,744.07

Item: AF0409C81BBW2

AF0409C81BBW2

ARO AF0409C81BBW2 AFX Series Air-Operated Two-Ball Piston Pump. 4-1/4" Motor, 9:1 Ratio, Container Suitability: Remote mounting with Optional inlet. CF8M Stainless Steel, Buna N (Upper & Lower) Packing, No Spring No Solvent Cup, 316 Stainless Steel Plunger. 1-1/4 - 11-1/2 NPSM Inlet, 3/4 - 14 NPTF - 1 Outlet, 270 - 1350 psig (18.6 - 93.1 bar) Pressure Range.

Air Inlet1/2 - 14 NPTF - 1
CCN Number46724407
Discharge NPT (Inches)3/4 - 14 NPTF - 1
Discharge Volume Per Cycle11.0 in³
Inlet Pressure (PSI)30 - 150 psig (2.1 - 10.3 bar)
MaterialCF8M Stainless Steel
Model SeriesARO Force Pneumatic Two Ball Piston Pumps
Motor4-1/4"
Mounting TypeRemote mounting with Optional inlet
Other Factors4" Stroke Length
Packing GlandBuna N (Upper & Lower)
Pressure Range270 - 1350 psig (18.6 - 93.1 bar)
Product Notes316 Stainless Steel Plunger
Pump Size9:1
Quick SpecsAFX 2 BALL PUMP AF0409C81BBW2
SpringNo Spring No Solvent Cup
Suction NPT (Inches)1-1/4 - 11-1/2 NPSM
TypeTwo Ball

0 Reviews

Add a Review

You need to sign in to add a review.

TypeTitleLink

AFX Piston Pumps and Packages Brochure

View

ARO AF0409 Piston Pump Brochure

View

AF0409C Two Ball Piston Pump Datasheet

View
