AF0807M11HF48-1

Image shown may not be actual product

AF0807M11HF48-1

0 reviews

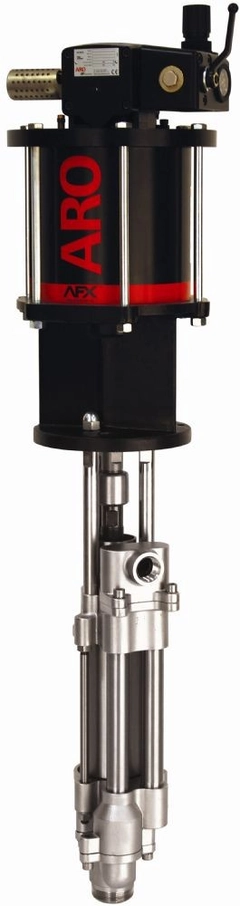

ARO AF0807M11HF48-1 AFX Series Air-Operated Four-Ball Piston Pump. 8" Motor, 7:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, UHMW-PE / Leather staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 210 - 1009 psi (14.5 - 69.6 bar) Pressure Range.

$12,090.26

Best Price Guarantee!
2417PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: AF0807M11HF48-1

Overview
Reviews
Literature/Manuals

AF0807M11HF48-1

Air Inlet	3/4 - 14 NPTF - 1
CCN Number	46737540
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Discharge Volume Per Cycle	82.1 In.³
Inlet Pressure (PSI)	30 - 120 psi (2.1 - 8.3 bar)
Material	300 Series Stainless Steel
Model Series	ARO Force Pneumatic Four Ball Piston Pumps
Motor	8"
Mounting Type	Remote Mounting
Options	Integrated Ball Valve Regulator

Other Factors	6" Stroke Length
Packing Gland	UHMW-PE / Leather staggered (Upper), UHMW-PE (Lower)
Pressure Range	210 - 1009 psi (14.5 - 69.6 bar)
Product Notes	Hardened Stainless Steel w/ Ceramic coating Plunger
Pump Size	7:1
Quick Specs	AFX 4 BALL PUMPAF0807M11HF48-1
Spring	Multiple Wave Spring
Suction NPT (Inches)	1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short
Type	Four Ball
