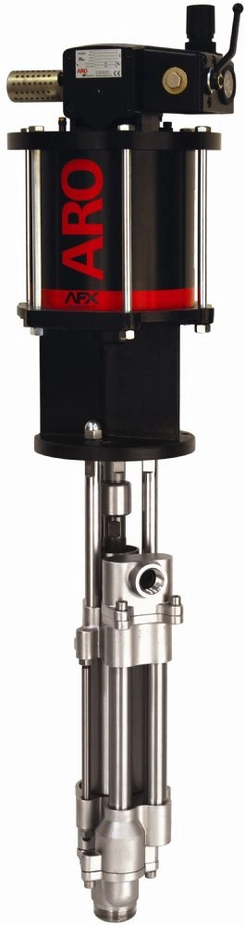

ARO Force Pneumatic Driven Two Ball Piston Pumps - ARO Force 4-ball piston pumps are designed to transfer high volumes of low- and medium-viscosity fluids up to 12,500 cPs with fluid delivery up to 32.8 gpm (124 L/min), depending on the application. A common use involves circulating fluid from the original container, to the point of use, and then back.
Search Results
(42 results)
Sort & Filter
2
AF0807M11GF48
ARO
ARO AF0807M11GF48 AFX Series Air-Operated Four-Ball Piston Pump. 8" Motor, 7:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 210 - 1009 psi (14.5 - 69.6 bar) Pressure Range.
AF0805M11KS48
ARO
ARO AF0805M11KS48 AFX Series Air-Operated Four-Ball Piston Pump. 8" Motor, 5:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, Glass Filled PTFE Upper Packing, Virgin PTFE Lower Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Ceramic Coating Plunger. 1-1/2 - 11-1/2 NPTF -1 (Female) & 2 - 11-1/2 PTF SAE Short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 150 - 702 psig (10.3 - 48.4 bar) Pressure Range.
AF0402M11FF48
ARO
ARO AF0402M11FF48 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0402M11FF48-1
ARO
ARO AF0402M11FF48-1 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0402M11HF48
ARO
ARO AF0402M11HF48 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, UHMW-PE / Leather staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0402M11HF48-1
ARO
ARO AF0402M11HF48-1 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, UHMW-PE / Leather staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0402M11KS48
ARO
ARO AF0402M11KS48 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, Glass filled PTFE (Upper), Virgin PTFE (Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0402M11KS48-1
ARO
ARO AF0402M11KS48-1 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, Glass filled PTFE (Upper), Virgin PTFE (Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0402M11RS48
ARO
ARO AF0402M11RS48 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, Glass filled PTFE / UHMW-PE Staggered (Upper), Virgin PTFE (Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0402M11RS48-1
ARO
ARO AF0402M11RS48-1 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, Glass filled PTFE / UHMW-PE Staggered (Upper), Virgin PTFE (Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.
AF0603M11FF48
ARO
ARO AF0603M11FF48 AFX Series Air-Operated Four-Ball Piston Pump. 6" Motor, 3:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 90 - 457 psig (6.2 - 31.5 bar) Pressure Range.
AF0603M11FF48-1
ARO
ARO AF0603M11FF48-1 AFX Series Air-Operated Four-Ball Piston Pump. 6" Motor, 3:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 90 - 457 psig (6.2 - 31.5 bar) Pressure Range.
