AF0402M11FF48

Image shown may not be actual product

AF0402M11FF48

0 reviews

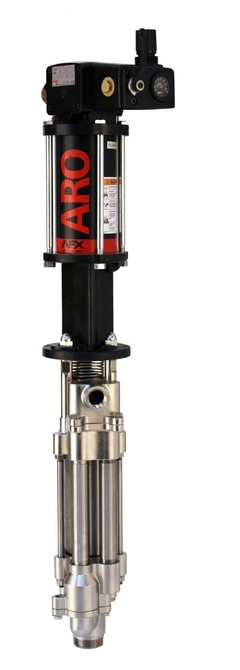

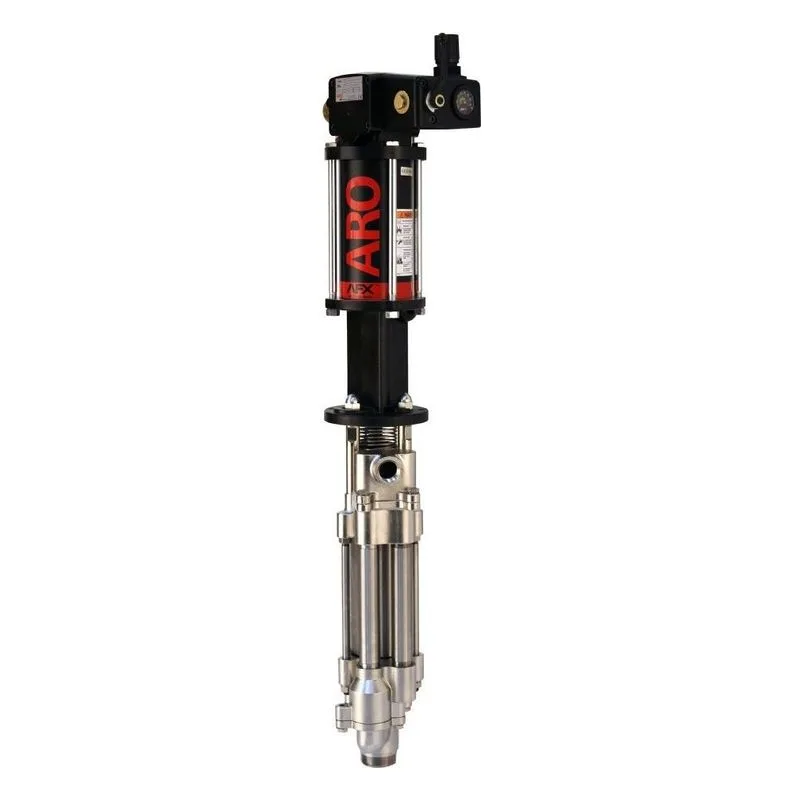

ARO AF0402M11FF48 AFX Series Air-Operated Four-Ball Piston Pump. 4-1/4" Motor, 2:1 Ratio, 300 Series/CF8M Stainless Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 60 - 312 psig (4.1 - 21.5 bar) Pressure Range.

$9,471.75

Best Price Guarantee!
1894PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: AF0402M11FF48

Overview
Reviews
Literature/Manuals

AF0402M11FF48

Air Inlet	1/2 - 14 NPTF - 1
CCN Number	15334584
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Discharge Volume Per Cycle	82.1in³
Inlet Pressure (PSI)	30 - 150 psig (2.1 - 10.3 bar)
Material	300 Series/CF8M Stainless Steel
Model Series	ARO Force Pneumatic Four Ball Piston Pumps
Motor	4-1/4"
Other Factors	6" Stroke Length

Packing Gland	UHMW-PE (Upper & Lower)
Pressure Range	60 - 312 psig (4.1 - 21.5 bar)
Product Notes	Hardened stainless steel with ceramic coating Plunger
Pump Size	2:1
Quick Specs	PUMP ASM 4-1/4" 2:1 4 AF0402M11FF48
Spring	Multiple Wave Spring
Suction NPT (Inches)	1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short
Type	Four Ball
