AF0805M11GF48

Image shown may not be actual product

AF0805M11GF48

0 reviews

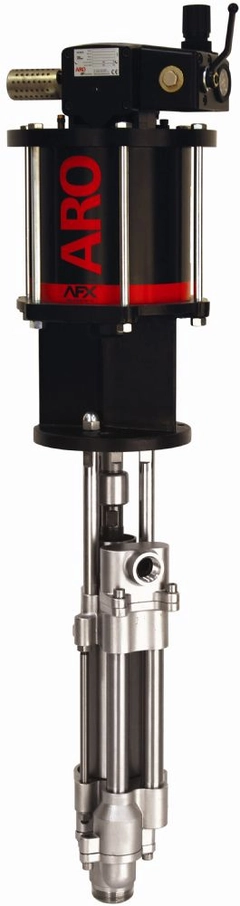

ARO AF0805M11GF48 AFX Series Air-Operated Four-Ball Piston Pump. 8" Motor, 5:1 Ratio, Container Suitability: Remote Mounting. 300 Series Stainless Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 150 - 702 psig (10.3 - 48.4 bar) Pressure Range.

$11,174.84

Best Price Guarantee!
2234PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: AF0805M11GF48

Overview
Reviews
Literature/Manuals

AF0805M11GF48

Air Inlet	3/4 - 14 NPTF - 1
CCN Number	46725628
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Discharge Volume Per Cycle	112.7 in³
Inlet Pressure (PSI)	30 - 120 psig (2.1 - 8.3 bar)
Material	300 Series Stainless Steel
Model Series	ARO Force Pneumatic Four Ball Piston Pumps
Motor	8"
Mounting Type	Remote Mounting
Other Factors	6" Stroke Length

Packing Gland	UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower)
Pressure Range	150 - 702 psig (10.3 - 48.4 bar)
Product Notes	Hardened Stainless Steel w/ Ceramic coating Plunger
Pump Size	5:1
Quick Specs	AFX 4 BALL PUMP AF0805M11GF48
Spring	Multiple Wave Spring
Suction NPT (Inches)	1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short
Type	Four Ball
