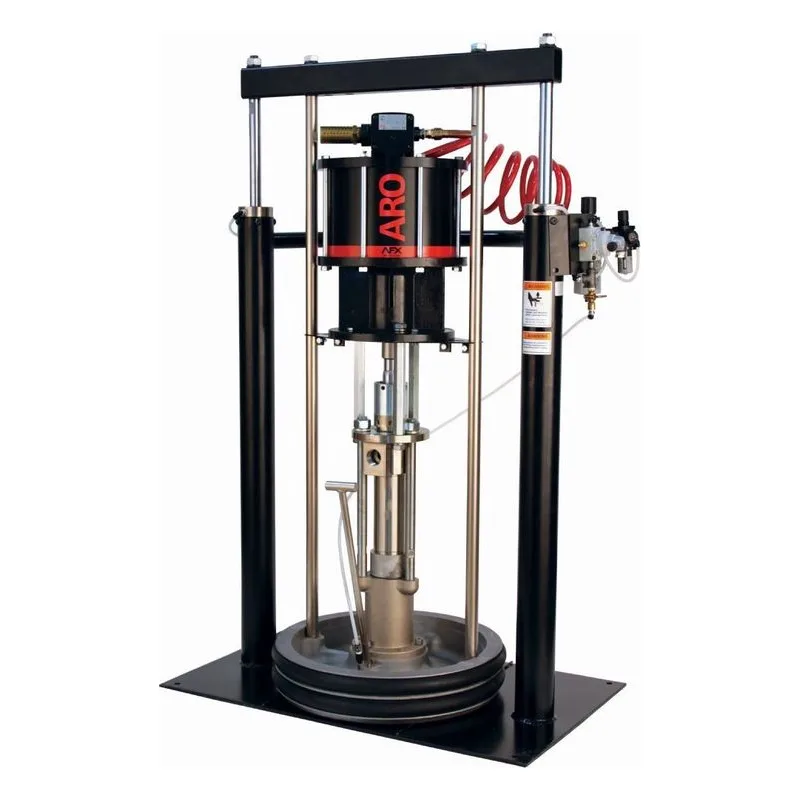

Image shown may not be actual product

TP1265S51FF47AN2

0 reviews

ARO TP1265S51FF47AN2 TPX Series Two-Post Ram Piston Pump Package. 12" Motor, 65:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1-1/4 - 11-1/2 NPTF - 1 Outlet, 1950 - 5850 psi (134.5 - 403.4 bar) Pressure Range.

$16,643.27

Best Price Guarantee!
3328PumpPoints

Item: TP1265S51FF47AN2 | Model #: AF1265S11FF47

Overview
Reviews
Literature/Manuals

TP1265S51FF47AN2

Air Inlet	3/4 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	47101472
Discharge NPT (Inches)	1-1/4 - 11-1/2 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 90 psi (2.1 - 6.2 bar)
Material	Carbon Steel
Model Number	AF1265S11FF47
Model Series	ARO Force 55 Gallon TPX Package
Motor	12"
Mounting Type	55 Gallon Container (400 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	6" Stroke Length
Packing Gland	UHMW-PE (Upper & Lower)
Pressure Range	1950 - 5850 psi (134.5 - 403.4 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome Plating Plunger
Pump Size	65:1
Quick Specs	AFX 55 GAL RAM PACKAGE TP1265S51FF47AN2
Spring	Multiple Wave Spring
Suction NPT (Inches)	Flange Mount
Type	Chop Check
