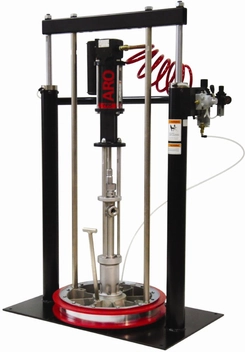

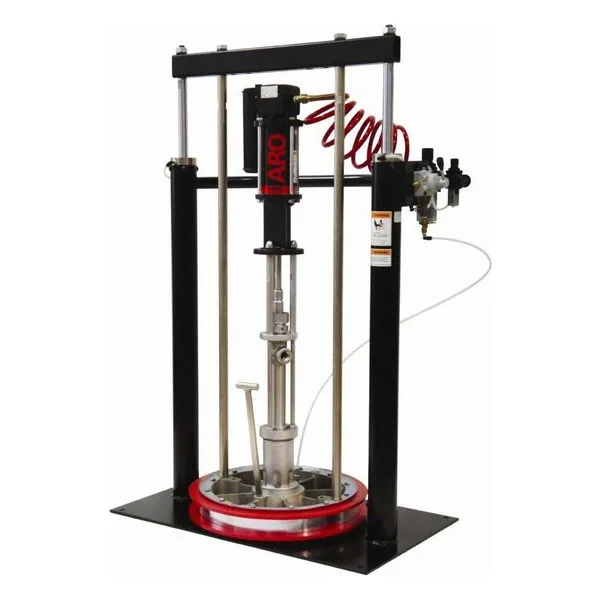

ARO Force Piston Pumps 55 Gallon TPX Package - 1.3 GPM to 18.1 GPM (5.1 LPM to 68.6 LPM). Integrated wet cup ensures extended pump life. Reliability - Eliminating downtime, the unbalanced air valve ensures stall-free pump operation. Durability - Hard chrome plated plunger improves abrasion resistance. Versatility - Multiple mounting configurations and materials of construction for your specific application needs. Environmentally Sound - Optional muffler ensures pump meets OSHA specifications. Serviceability - Minimal part count combined with tie-rod construction for simple, efficient repairs. Typical Applications - Pumping sealants, adhesives, epoxies, inks, lubricants, urethane, silicone, and caulk.
Search Results
(92 results)
Sort & Filter
2
TP0411G51GF47AA2
ARO
ARO TP0411G51GF47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 11:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, UHMW-PE / PTFE Staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring w/ 316 Stainless Steel Balls, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 330 - 1747 psig (23 - 120 bar) Pressure Range.
TP0412S51FF47AA2
ARO
ARO TP0412S51FF47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 12:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
TP0412S51GF47AA2
ARO
ARO TP0412S51GF47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 12:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, Glass filled PTFE / UHMW-PE staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
TP0412S51GF47TA2
ARO
ARO TP0412S51GF47TA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 12:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, Glass filled PTFE / UHMW-PE staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
TP0412S51HH47AA2
ARO
ARO TP0412S51HH47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 12:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE / Leather Staggered (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
TP0412S51KK47AA2
ARO
ARO TP0412S51KK47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 12:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, Glass-Filled PTFE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.
TP0423S51FF47AA2
ARO
ARO TP0423S51FF47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
TP0423S51HH47AA2
ARO
ARO TP0423S51HH47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE / Leather Staggered (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
TP0423S51RK47AA2
ARO
ARO TP0423S51RK47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, PTFE / UHMW-PE Staggered (Upper), Glass Filled PTFE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
TP0623G51RK47TA2
ARO
ARO TP0623G51RK47TA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, Glass filled PTFE / UHMW-PE staggered (Upper), Glass Filled PTFE (Lower) Packing, Multiple Wave Spring w/ 316 Stainless Steel Balls, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3495 psig (48 - 241 bar) Pressure Range.
TP0623S51FF47AA2
ARO
ARO TP0623S51FF47AA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
TP0623S51FF47AN2
ARO
ARO TP0623S51FF47AN2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
