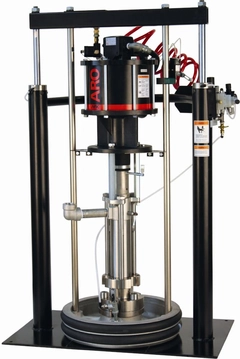

ARO TP1223C51FFP5AN2 TPX Series Two-Post Ram Piston Pump Package. 12" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, UHMW-PE (Upper & Lower) Packing, Wave Spring Low Profile Solvent Cup, Stainless Steel w/ Hard Chrome Plating Plunger. 2 - 11-1/2 NPTF - 1 Inlet, 1-1/4 - 11-1/2 NPTF - 1 Outlet, 690 - 2070 psig (47.6 - 142.8 bar) Pressure Range.
ARO TP1223C51FFP5AN2 TPX Series Two-Post Ram Piston Pump Package. 12" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, UHMW-PE (Upper & Lower) Packing, Wave Spring Low Profile Solvent Cup, Stainless Steel w/ Hard Chrome Plating Plunger. 2 - 11-1/2 NPTF - 1 Inlet, 1-1/4 - 11-1/2 NPTF - 1 Outlet, 690 - 2070 psig (47.6 - 142.8 bar) Pressure Range.
Air Inlet | 3/4 - 14 NPTF - 1 |
Build | Two-Post Ram |
CCN Number | 47101829 |
Discharge NPT (Inches) | 1-1/4 - 11-1/2 NPTF - 1 |
Includes | Features a two-post ram pump follower plate and controls designed for high-viscosity applications |
Inlet Pressure (PSI) | 30 - 90 psig (2.1 - 6.2 bar) |
Material | 300 Series Stainless Steel |
Model Number | AF1223C51FFP5 |
Model Series | ARO Force 55 Gallon TPX Package |
Motor | 12" |
Mounting Type | 55 Gallon Container (400 lbs) |
Options | Advanced Ram & Pump Controls |
Other Factors | 6" Stroke Length |
Packing Gland | UHMW-PE (Upper & Lower) |
Pressure Range | 690 - 2070 psig (47.6 - 142.8 bar) |
Product Notes | Stainless Steel w/ Hard Chrome Plating Plunger |
Pump Size | 23:1 |
Quick Specs | AFX 55 GAL RAM PACKAGE TP1223C51FFP5AN2 |
Spring | Wave Spring Low Profile Solvent Cup |
Suction NPT (Inches) | 2 - 11-1/2 NPTF - 1 |
Type | Two Ball |
