TP1223C51FF35TAC

0 reviews

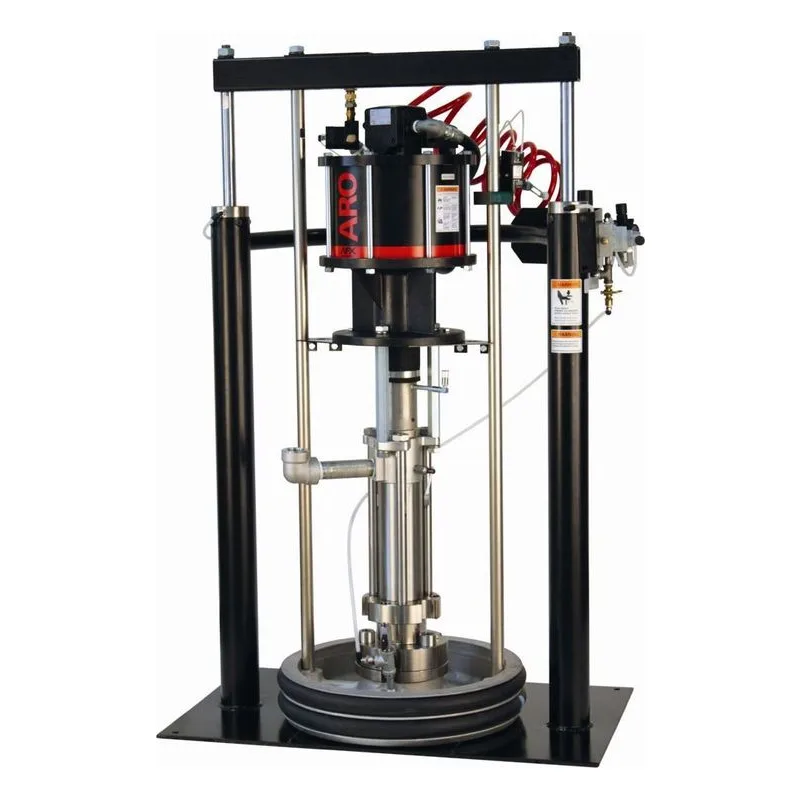

ARO TP1223C51FF35TAC TPX Series Two-Post Ram Piston Pump Package. 12" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, UHMW-PE (Upper & Lower) Packing, Wave Spring Standard Solvent Cup, Stainless Steel w/ Hard Chrome Plating Plunger. 2 - 11-1/2 NPTF - 1 Inlet, 1-1/4 - 11-1/2 NPTF - 1 Outlet, 690 - 2070 psig (47.6 - 142.8 bar) Pressure Range.

$20,832.74

Best Price Guarantee!
4166PumpPoints

Item: TP1223C51FF35TAC | Model #: AF1223C51FF35

Overview
Reviews
Literature/Manuals

TP1223C51FF35TAC

Air Inlet	3/4 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	47101613
Discharge NPT (Inches)	1-1/4 - 11-1/2 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 90 psig (2.1 - 6.2 bar)
Material	300 Series Stainless Steel
Model Number	AF1223C51FF35
Model Series	ARO Force 55 Gallon TPX Package
Motor	12"
Mounting Type	55 Gallon Container (400 lbs)

Options	Low Level Cutoff / Drum Hold Down
Other Factors	6" Stroke Length
Packing Gland	UHMW-PE (Upper & Lower)
Pressure Range	690 - 2070 psig (47.6 - 142.8 bar)
Product Notes	Stainless Steel w/ Hard Chrome Plating Plunger
Pump Size	23:1
Quick Specs	AFX 55 GAL RAM PACKAGE TP1223C51FF35TAC
Spring	Wave Spring Standard Solvent Cup
Suction NPT (Inches)	2 - 11-1/2 NPTF - 1
Type	Two Ball
