TP0665S51GF47AN2

Image shown may not be actual product

TP0665S51GF47AN2

0 reviews

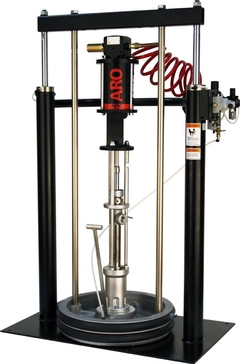

ARO TP0665S51GF47AN2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 65:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE / Mineral filled PTFE Staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger. Flange Mount Inlet, 3/4 - 14 NPTF - 1 Outlet, 1950 - 7475 psi (134.5 - 515.5 bar) Pressure Range.

$15,558.49

Best Price Guarantee!
3111PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: TP0665S51GF47AN2 | Model #: AF0665S11GF47

Overview
Reviews
Literature/Manuals

TP0665S51GF47AN2

Air Inlet	1/2 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	15338361
Discharge NPT (Inches)	3/4 - 14 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 115 psi (2.1 - 7.9 bar)
Material	Carbon Steel
Model Number	AF0665S11GF47
Model Series	ARO Force 55 Gallon TPX Package
Motor	6"
Mounting Type	55 Gallon Container (400 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	6" Stroke Length
Packing Gland	UHMW-PE / Mineral filled PTFE Staggered (Upper), UHMW-PE (Lower)
Pressure Range	1950 - 7475 psi (134.5 - 515.5 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger
Pump Size	65:1
Quick Specs	AFX 55 GAL RAM PACKAGE TP0665S51GF47AN2
Spring	Multiple Wave Spring
Suction NPT (Inches)	Flange Mount
Type	Chop Check
