TP0645G51RK47TB2

Image shown may not be actual product

TP0645G51RK47TB2

0 reviews

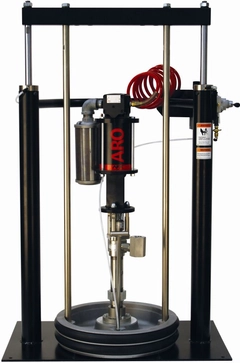

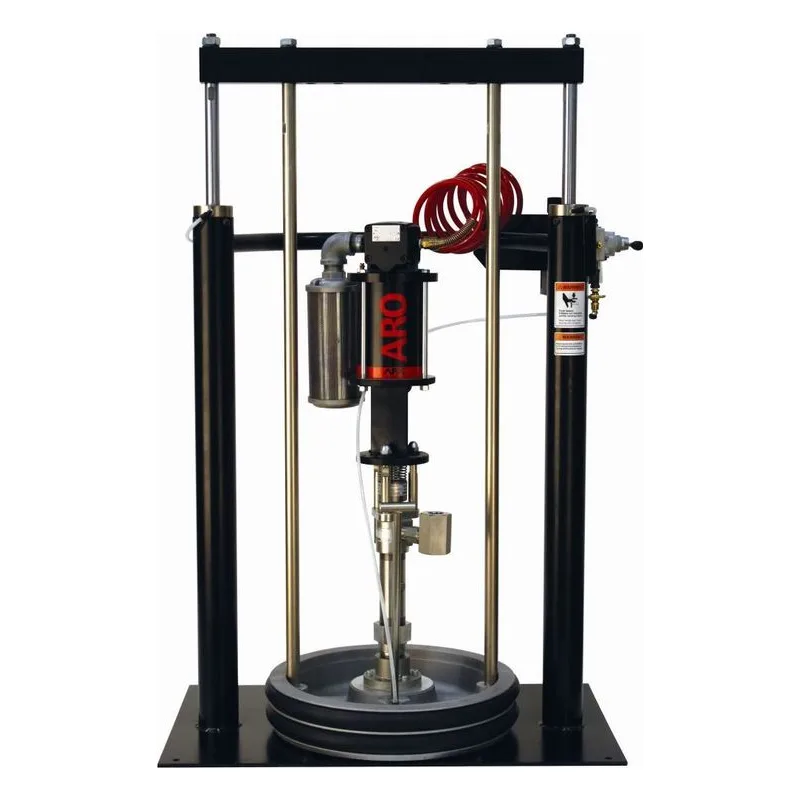

ARO TP0645G51RK47TB2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 45:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, Glass filled PTFE / UHMW-PE staggered (Upper), Glass Filled PTFE (Lower) Packing, Multiple Wave Spring w/ Stainless steel balls, Hardened Stainless Steel w/ Hard Chrome coating Plunger. 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 1350 - 5459 psig (93 - 376 bar) Pressure Range.

$13,898.47

Best Price Guarantee!
2779PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: TP0645G51RK47TB2 | Model #: AF0645G11RK47

Overview
Reviews
Literature/Manuals

TP0645G51RK47TB2

Air Inlet	1/2 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	47099627
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 120 psig (2.1 - 8.3 bar)
Material	300 Series Stainless Steel
Model Number	AF0645G11RK47
Model Series	ARO Force 55 Gallon TPX Package
Motor	6"
Mounting Type	55 Gallon Container (400 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	6" Stroke Length
Packing Gland	Glass filled PTFE / UHMW-PE staggered (Upper), Glass Filled PTFE (Lower)
Pressure Range	1350 - 5459 psig (93 - 376 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome coating Plunger
Pump Size	45:1
Quick Specs	AFX 55 GAL RAM PACKAGE TP0645G51RK47TB2
Spring	Multiple Wave Spring w/ Stainless steel balls
Suction NPT (Inches)	1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male)
Type	Two Ball
