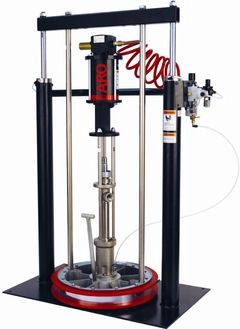

ARO TP0623S51GF47AA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE / Glass filled PTFE Staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
ARO TP0623S51GF47AA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE / Glass filled PTFE Staggered (Upper), UHMW-PE (Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
Air Inlet | 1/2 - 14 NPTF - 1 |
Build | Two-Post Ram |
CCN Number | 15338247 |
Discharge NPT (Inches) | 1 - 11-1/2 NPTF - 1 |
Includes | Features a two-post ram pump follower plate and controls designed for high-viscosity applications |
Inlet Pressure (PSI) | 30 - 150 psi (2.1 - 10.3 bar) |
Material | Carbon Steel |
Model Number | AF0623S11GF47 |
Model Series | ARO Force 55 Gallon TPX Package |
Motor | 6" |
Mounting Type | 55 Gallon Container (400 lbs) |
Options | Advanced Ram & Pump Controls |
Other Factors | 6" Stroke Length |
Packing Gland | UHMW-PE / Glass filled PTFE Staggered (Upper), UHMW-PE (Lower) |
Pressure Range | 690 - 4215 psi (47.6 - 290.7 bar) |
Product Notes | Hardened Stainless Steel w/ hard chrome coating Plunger |
Pump Size | 23:1 |
Quick Specs | AFX 55 GAL RAM PACKAGE TP0623S51GF47AA2 |
Spring | Multiple Wave Spring |
Suction NPT (Inches) | Flange Mount |
Type | Chop Check |
