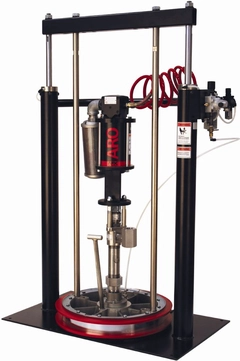

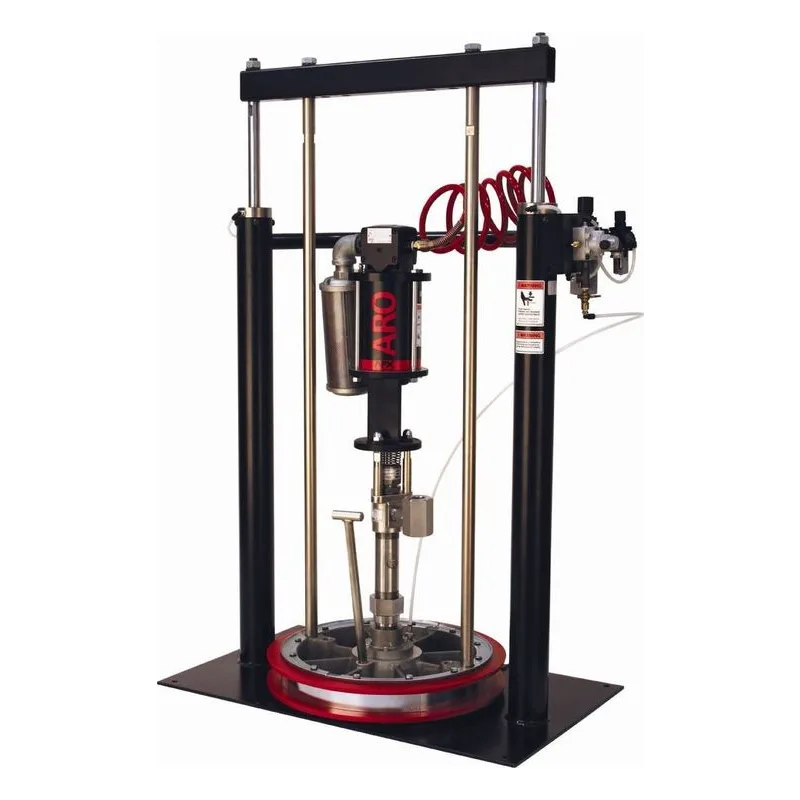

ARO TP0623G51RK47TA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, Glass filled PTFE / UHMW-PE staggered (Upper), Glass Filled PTFE (Lower) Packing, Multiple Wave Spring w/ 316 Stainless Steel Balls, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3495 psig (48 - 241 bar) Pressure Range.
ARO TP0623G51RK47TA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 55 Gallon (400 lbs). 300 Series Stainless Steel, Glass filled PTFE / UHMW-PE staggered (Upper), Glass Filled PTFE (Lower) Packing, Multiple Wave Spring w/ 316 Stainless Steel Balls, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3495 psig (48 - 241 bar) Pressure Range.
Air Inlet | 1/2 - 14 NPTF - 1 |
Build | Two-Post Ram |
CCN Number | 47097407 |
Discharge NPT (Inches) | 1 - 11-1/2 NPTF - 1 |
Includes | Features a two-post ram pump follower plate and controls designed for high-viscosity applications |
Inlet Pressure (PSI) | 30 - 150 psig (2.1 - 10.3 bar) |
Material | 300 Series Stainless Steel |
Model Number | AF0623G11RK47 |
Model Series | ARO Force 55 Gallon TPX Package |
Motor | 6" |
Mounting Type | 55 Gallon Container (400 lbs) |
Options | Advanced Ram & Pump Controls |
Other Factors | 6" Stroke Length |
Packing Gland | Glass filled PTFE / UHMW-PE staggered (Upper), Glass Filled PTFE (Lower) |
Pressure Range | 690 - 3495 psig (48 - 241 bar) |
Product Notes | Hardened Stainless Steel w/ Hard Chrome Plating Plunger |
Pump Size | 23:1 |
Quick Specs | AFX 55 GAL RAM PACKAGE TP0623G51RK47TA2 |
Spring | Multiple Wave Spring w/ 316 Stainless Steel Balls |
Suction NPT (Inches) | 1 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 P.T.F. short (Male) |
Type | Two Ball |
