TP0412S51KK47AA2

0 reviews

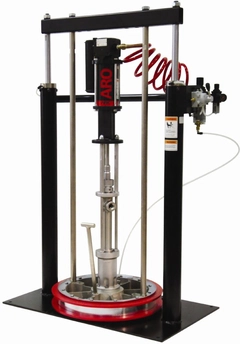

ARO TP0412S51KK47AA2 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 12:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, Glass-Filled PTFE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 360 - 2085 psi (24.8 - 143.8 bar) Pressure Range.

$12,153.77

Best Price Guarantee!
2430PumpPoints

Item: TP0412S51KK47AA2 | Model #: AF0412S11KK47

Overview
Reviews
Literature/Manuals

TP0412S51KK47AA2

Air Inlet	1/2 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	15338072
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 150 psi (2.1 - 10.3 bar)
Material	Carbon Steel
Model Number	AF0412S11KK47
Model Series	ARO Force 55 Gallon TPX Package
Motor	4-1/4"
Mounting Type	55 Gallon Container (400 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	6" Stroke Length
Packing Gland	Glass-Filled PTFE (Upper & Lower)
Pressure Range	360 - 2085 psi (24.8 - 143.8 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome Plating Plunger
Pump Size	12:1
Quick Specs	AFX 55 GAL RAM PACKAGE TP0412S51KK47AA2
Spring	Multiple Wave Spring
Suction NPT (Inches)	1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short
Type	Chop Check
