Image shown may not be actual product

TP0443S21GN47E32

0 reviews

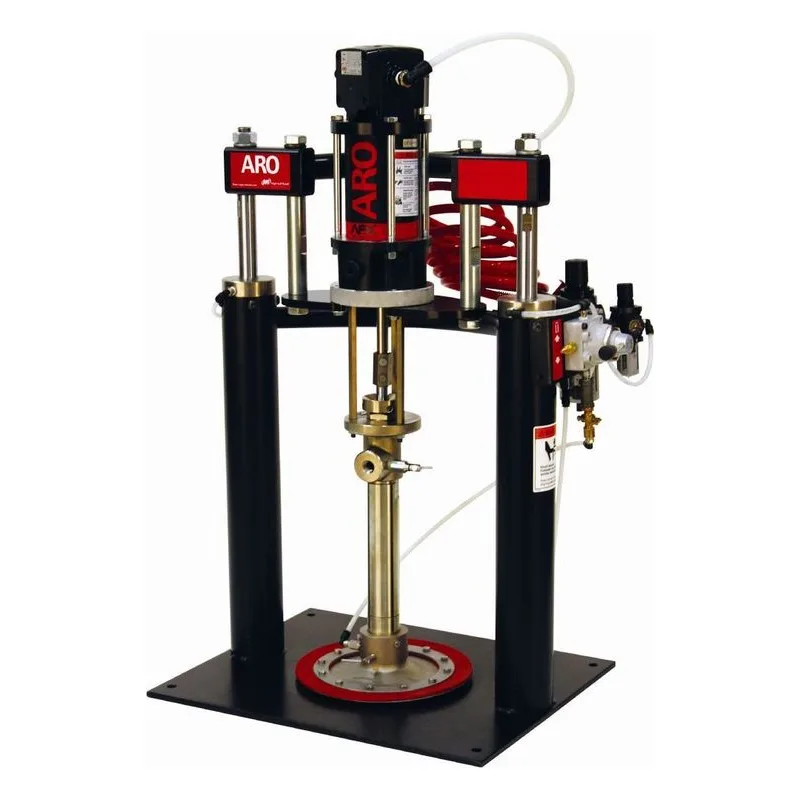

ARO TP0443S21GN47E32 TPX Series Two-Post Ram Piston Pump Package. 4-1/4" Motor, 43:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 1308 - 6549 psi (90.2 - 451.7 bar) Pressure Range.

$9,677.61

Best Price Guarantee!
1935PumpPoints

Item: TP0443S21GN47E32 | Model #: AF0443S21GN47

Overview
Reviews
Literature/Manuals

TP0443S21GN47E32

Air Inlet	1/2 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	15338015
Discharge NPT (Inches)	1/2 - 14 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 150 psi (2.1 - 10.3 bar)
Material	Carbon Steel
Model Number	AF0443S21GN47
Model Series	ARO Force 5 Gallon TPX Package
Motor	4-1/4"
Mounting Type	5 Gallon Container (35 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	4" Stroke Length
Packing Gland	UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs)
Pressure Range	1308 - 6549 psi (90.2 - 451.7 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome Plating Plunger
Pump Size	43:1
Quick Specs	AFX 5 GAL RAM PACKAGE TP0443S21GN47E32
Spring	Multiple Wave Spring
Suction NPT (Inches)	Follower Plate Mounted
Type	Chop Check
