Image shown may not be actual product

PM30S-CSS-SMM-C02

0 reviews

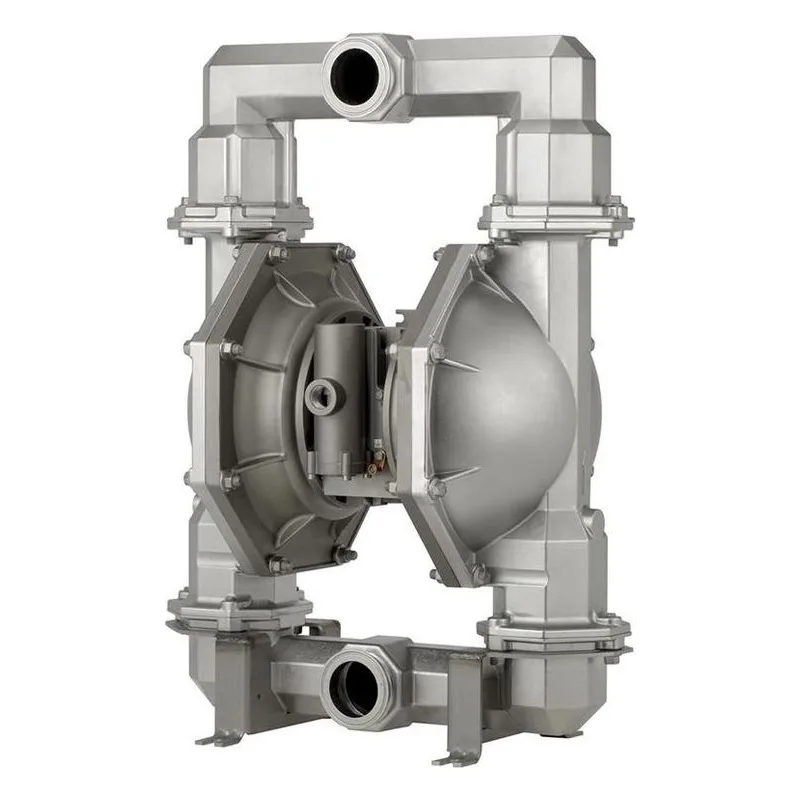

ARO PM30S-CSS-SMM-C02 PM Series 3" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Stainless Steel Center Body, Hardware, Fluid Caps & Manifold. 316 Stainless Steel Seats, Medical Grade Santoprene Balls & Diaphragms, 3" Tri-Clamp Connection. An Ingersoll Rand Business.

$11,282.88

Best Price Guarantee!
2256PumpPoints

Item: PM30S-CSS-SMM-C02 | Part #: PM30S-CSS-SAA-C02

Overview
Reviews
Literature/Manuals

PM30S-CSS-SMM-C02

Air Inlet	3/4 - 14 NPT
Connection Size	3"
Connection Type	3" Tri-Clamp
Diaphragm	Medical Grade Santoprene
Discharge Volume Per Cycle	2.8 Gal (10.6 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Stainless Steel Fluid Caps/Manifold
Material	Stainless Steel Center Body
Maximum Flow (GPM)	275 GPM (1041 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)
Metal Parts	Stainless Steel Hardware

Options	No Option
Part Number	PM30S-CSS-SAA-C02
Product Notes	Standard valve Block (No Solenoid)
Quick Specs	3" TRI-CLAMP DIAPHRAGM PUMP
Solids (Inches)	3/8" (9.5mm)
Temperature Range	-40° to 225° F (-40° to 107° C)
Type	FDA Compliant Sanitary Pump
Valve Balls	Medical Grade Santoprene
Valve / Seat / O-Ring	316 Stainless Steel

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	PM30X 3" Ported Sanitary Transfer Datasheet		View
	PM30R 3" Ported Sanitary Transfer Datasheet		View
	PM30X 3" Ported Sanitary Transfer Manual		View
	PM30R 3" Ported Sanitary Transfer Manual		View
