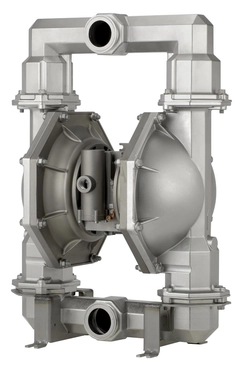

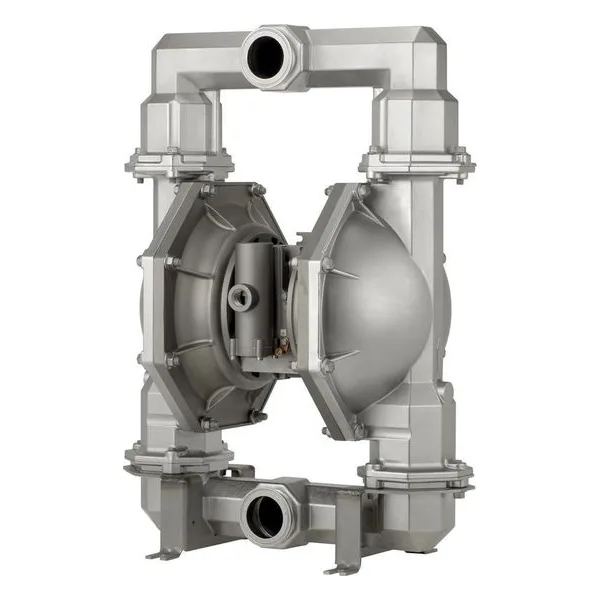

ARO 3” Ported Sanitary Transfer Pump – 275 GPM (1041 LPM). Constructed of FDA Accepted Materials. Electro-Polished 316 Stainless Steel Fluid Section. Bolted Construction with all Stainless Steel Hardware. All Investment Cast Wetted Parts. Typical Applications - Food processing, cosmetics, pharmaceutical, chemical additives (food grade), paint, and applications requiring quick-disconnect fluid connections. Pump Casing Materials: Stainless Steel. Diaphragm Materials: Santoprene, Medical grade Santoprene, PTFE w/ Santoprene backer & Nitrile. Center Section Materials: Stainless Steel, Polypropylene & Aluminum
Search Results
(16 results)
Sort & Filter
2
PM30A-CSS-STT-C02
ARO
ARO PM30A-CSS-STT-C02 PM Series 3" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Aluminum Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 275 GPM (1041 LPM) Maximum Flow Rate, Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 3" Tri-Clamp Connection. An Ingersoll Rand Business.
PM30S-CSS-STT-C02
ARO
ARO PM30S-CSS-STT-C02 PM Series 3" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Stainless Steel Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 275 GPM (1041 LPM) Maximum Flow Rate, Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 3" Tri-Clamp Connection. An Ingersoll Rand Business.
PM30A-CSS-MMM-C02
ARO
ARO PM30A-CSS-MMM-C02 PM Series 3" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Aluminum Center Body, Stainless Steel Hardware, Fluid Caps & Manifold. Medical Grade Santoprene Seats, Balls & Diaphragms, 3" Tri-Clamp Connection. An Ingersoll Rand Business.
PM30A-CSS-SMM-C02
ARO
ARO PM30A-CSS-SMM-C02 PM Series 3" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Aluminum Center Body, Stainless Steel Hardware, Fluid Caps & Manifold. 316 Stainless Steel Seats, Medical Grade Santoprene Balls & Diaphragms, 3" Tri-Clamp Connection. An Ingersoll Rand Business.
PM30R-CSS-MMM-C02
ARO
ARO PM30R-CSS-MMM-C02 PM Series 3" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Polypropylene Air Motor / Stainless Steel Cap, Stainless Steel Hardware, Fluid Caps & Manifold. Medical Grade Santoprene Seats, Balls & Diaphragms, 3" Tri-Clamp Connection. An Ingersoll Rand Business.
PM30R-CSS-SMM-C02
ARO
ARO PM30R-CSS-SMM-C02 PM Series 3" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Polypropylene Air Motor / Stainless Steel Cap, Stainless Steel Hardware, Fluid Caps & Manifold. 316 Stainless Steel Seats, Medical Grade Santoprene Balls & Diaphragms, 3" Tri-Clamp Connection. An Ingersoll Rand Business.
PM30S-CSS-MMM-C02
ARO
ARO PM30S-CSS-MMM-C02 PM Series 3" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Stainless Steel Center Body, Hardware, Fluid Caps & Manifold. Medical Grade Santoprene Seats, Balls & Diaphragms, 3" Tri-Clamp Connection. An Ingersoll Rand Business.
PM30S-CSS-SMM-C02
ARO
ARO PM30S-CSS-SMM-C02 PM Series 3" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Stainless Steel Center Body, Hardware, Fluid Caps & Manifold. 316 Stainless Steel Seats, Medical Grade Santoprene Balls & Diaphragms, 3" Tri-Clamp Connection. An Ingersoll Rand Business.

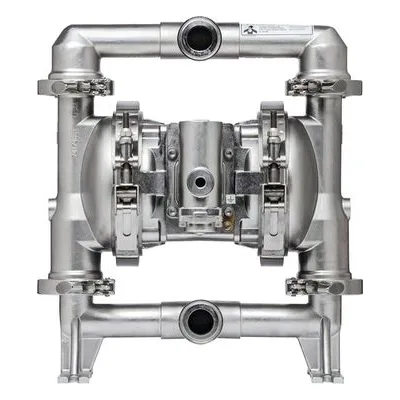

SD30R-CSS-SMM-A00
ARO
ARO SD30R-CSS-SMM-A00 3" FDA Ported Sanitary Transfer Metallic Diaphragm Pump with an Electronic Interface and Quick Knock Down Design. Polypropylene Build with Medical Grade Santoprene Dipahragms and 316L Stainless Steel Manifold. 1:1 Ratio with a 275 GPM (Gallons Per Minute) Max Flow Rate, 3" Sanitary Flange Fluid Connections and 3/8" (0.375") Maximum Solids Handling. 19.2 ft. Maximum Dry Suction Lift and -40°F to 225°F Temperature Range. An Ingersoll Rand Product.
SD30R-CSS-STK-A00
ARO
ARO SD30R-CSS-STK-A00 3" FDA Ported Sanitary Transfer Metallic Diaphragm Pump with an Electronic Interface and Quick Knock Down Design. Polypropylene Build with PTFE Composite Dipahragms and 316L Stainless Steel Manifold. 1:1 Ratio with a 275 GPM (Gallons Per Minute) Max Flow Rate, 3" Sanitary Flange Fluid Connections and 3/8" (0.375") Maximum Solids Handling. 19.2 ft. Maximum Dry Suction Lift and 40°F to 225°F Temperature Range. An Ingersoll Rand Product.
SD30S-CSS-SMM-A00
ARO
ARO SD30S-CSS-SMM-A00 3" FDA Ported Sanitary Transfer Metallic Diaphragm Pump with an Electronic Interface and Quick Knock Down Design. Stainless Steel Build with Medical Grade Santoprene Dipahragms and 316L Stainless Steel Manifold. 1:1 Ratio with a 275 GPM (Gallons Per Minute) Max Flow Rate, 3" Sanitary Flange Fluid Connections and 3/8" (0.375") Maximum Solids Handling. 19.2 ft. Maximum Dry Suction Lift and -40°F to 225°F Temperature Range. An Ingersoll Rand Product.
PM30R-CSS-AAA-C02
ARO
ARO PM30R-CSS-AAA-C02 PM Series 3" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Polypropylene / Stainless Steel Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 275 GPM (1041 LPM) Maximum Flow Rate, Santoprene Seats, Balls & Diaphragm, 3" Tri-Clamp Connection. An Ingersoll Rand Business. ***Superceded by version with Medical Grade Santoprene, Model: PM30R-CSS-MMM-C02.
