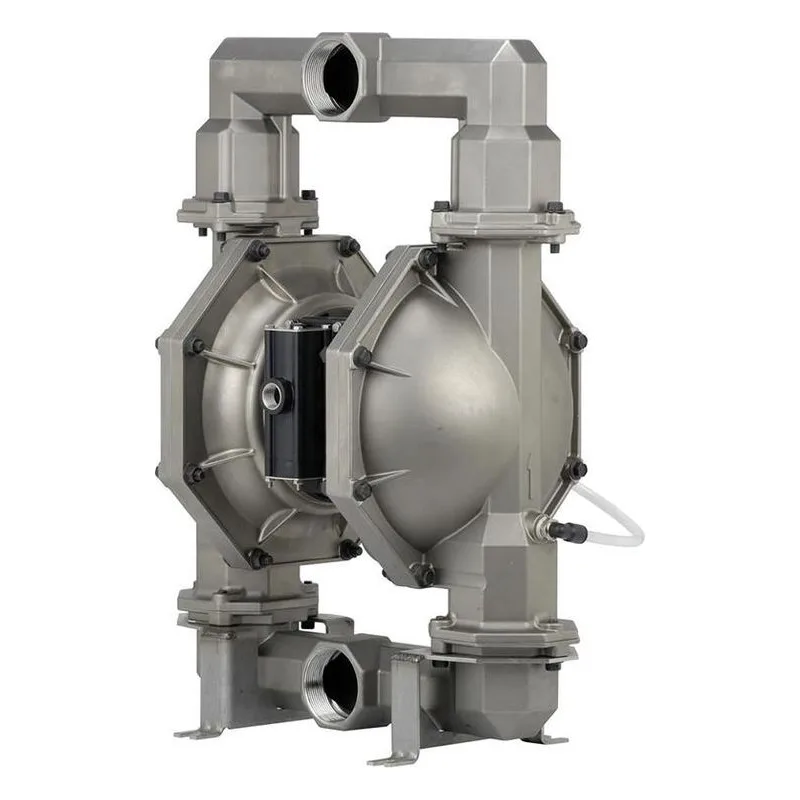

ARO PH20F-ASP-SAA-B 2:1 High Pressure AODD Diaphragm Pump. Conductive Polypropylene Air Motor / Stainless Steel Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, Santoprene Balls & Diaphragms, 2 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.

Pump Catalog Price
Retail Price: $8,968.55
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PH20F-ASP-SAA-B

Overview
Reviews
Literature/Manuals

PH20F-ASP-SAA-B

Air Inlet	3/4 - 14 NPTF - 1
Connection Size	2"
Connection Type	2 - 11-1/2 NPTF - 1
Diaphragm	Santoprene
Discharge Volume Per Cycle	1.28 Gal (4.8 Lit)
Inlet Pressure (PSI)	100 psig (6.9 bar)
Liquid End Configuration	Stainless Steel Fluid Caps/Manifold
Material	Conductive Polypropylene Air Motor / Stainless Steel Cap
Maximum Flow (GPM)	92 GPM (348.2 LPM)

Maximum Working Pressure (PSIG)	200 psig (13.8 bar)
Metal Parts	Plated Steel Hardware
Quick Specs	2" (2:1) AODP METALLIC ASSY
Solids (Inches)	1/4" (6.4mm)
Temperature Range	-40° to 225° F (-40° to 107° C)
Type	High Pressure Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	Stainless Steel
