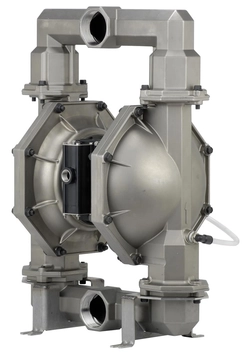

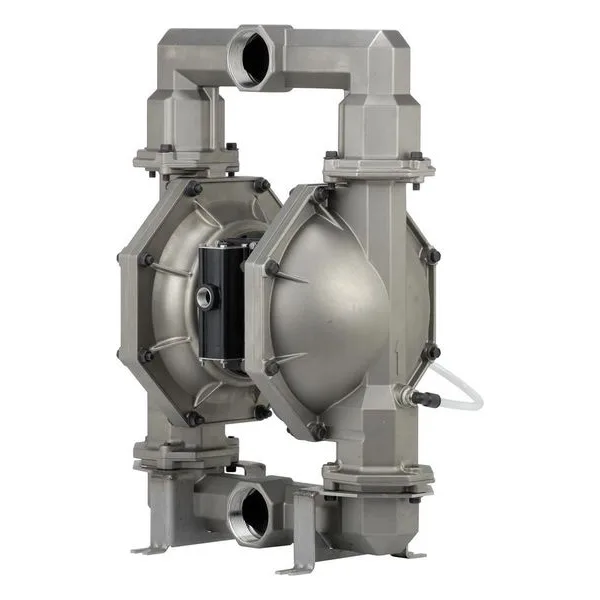

ARO 2:1 Ratio High Pressure Pump - 160 GPM (605.6 LPM). Utilizing Power - Can produce up to 200 psi, at about half the flow rate of a standard diaphragm pump by utilizing the effective surface areas of both diaphragms to double output pressure! Structural Integrity - Bolted Construction eliminates problems associated with leaking band-clamps while also reducing maintenance costs. Simul-Shift™ and Quick Dump™ valve technology for stall free / ice free operation. Intelligent Design - Modular major valve for ease of repair. Built to Last - Convoluted diaphragms for long life. Size - Available in 3", 2" and 1.5" ports. Pump Casing Materials: Stainless Steel. Diaphragm Materials: Santoprene, Hytrel & PTFE / Santoprene
Search Results
(9 results)
Sort & Filter
2
PH30F-ASP-SAA-C
ARO
ARO PH30F-ASP-SAA-C 2:1 High Pressure AODD Diaphragm Pump. Groundable Polypropylene Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, Santoprene Balls & Diaphragm, 3 - 8 NPTF - 1 Connection. An Ingersoll Rand Business.
PH30F-ASP-STT-C
ARO
ARO PH30F-ASP-STT-C 2:1 High Pressure AODD Diaphragm Pump. Groundable Polypropylene Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 3 - 8 NPTF - 1 Connection. An Ingersoll Rand Business.
PH30F-BSP-SAA-C
ARO
ARO PH30F-BSP-SAA-C 2:1 High Pressure AODD Diaphragm Pump. Groundable Polypropylene Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, Santoprene Balls & Diaphragm, Rp 3 (3 - 11 BSP parallel) Connection. An Ingersoll Rand Business.
PH30F-FSP-STT-C
ARO
ARO PH30F-FSP-STT-C 2:1 High Pressure AODD Diaphragm Pump. Groundable Polypropylene Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 3" DIN Flange (8-Holes) Connection. An Ingersoll Rand Business.
PH15F-ASP-STT-A
ARO
ARO PH15F-ASP-STT-A 2:1 High Pressure AODD Diaphragm Pump. Conductive Polypropylene Air Motor / Stainless Steel Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. 63 GPM (238.5 LPM) Maximum Flow Rate, Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 1 1/2 NPTF Connection. An Ingersoll Rand Business.
PH20F-ASP-STT-B
ARO
ARO PH20F-ASP-STT-B 2:1 High Pressure AODD Diaphragm Pump. Conductive Polypropylene Air Motor / Stainless Steel Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. 92 GPM (348.2 LPM) Maximum Flow Rate, Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 2 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.
PH30F-BSP-STT-C
ARO
ARO PH30F-BSP-STT-C 2:1 High Pressure AODD Diaphragm Pump. Groundable Polypropylene Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, PTFE Balls, PTFE / Santoprene Diaphragm, Rp 3 (3 - 11 BSP parallel) Connection. An Ingersoll Rand Business.
PH15F-ASP-SAA-A
ARO
ARO PH15F-ASP-SAA-A 2:1 High Pressure AODD Diaphragm Pump. Conductive Polypropylene Air Motor / Stainless Steel Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, Santoprene Balls & Diaphragms, 1 1/2 NPTF Connection. An Ingersoll Rand Business.
PH20F-ASP-SAA-B
ARO
ARO PH20F-ASP-SAA-B 2:1 High Pressure AODD Diaphragm Pump. Conductive Polypropylene Air Motor / Stainless Steel Cap, Stainless Steel Fluid Caps & Manifold, Plated Steel Hardware. Stainless Steel Seats, Santoprene Balls & Diaphragms, 2 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.
