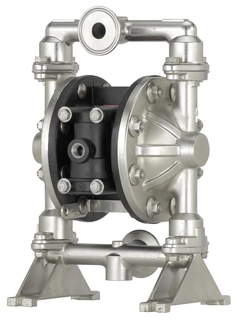

Image shown may not be actual product
ARO PM05R-CSS-SAA-B02 PM Series 1/2" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Polypropylene Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 12 GPM (45.4 LPM) Maximum Flow Rate, Stainless Steel Seats, Santoprene Balls & Diaphragm, 1-1/2" Tri-Clamp Connection. An Ingersoll Rand Business. ***Superceded by version with Medical Grade Santoprene, Model: PM05R-CSS-SMM-B02.
ARO PM05R-CSS-SAA-B02 PM Series 1/2" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Polypropylene Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 12 GPM (45.4 LPM) Maximum Flow Rate, Stainless Steel Seats, Santoprene Balls & Diaphragm, 1-1/2" Tri-Clamp Connection. An Ingersoll Rand Business. ***Superceded by version with Medical Grade Santoprene, Model: PM05R-CSS-SMM-B02.
Air Inlet | 1/4 - 18 PTF SAE Short |
CCN Number | 15258775 |
Connection Size | 1/2" |
Connection Type | 1-1/2" Tri-Clamp |
Diaphragm | Santoprene |
Discharge Volume Per Cycle | 0.039 Gal (0.15 Lit) |
Inlet Pressure (PSI) | 100 psig (6.9 bar) |
Liquid End Configuration | Stainless Steel Fluid Caps & Manifold |
Material | Polypropylene Center Body |
Maximum Flow (GPM) | 12 GPM (45.4 LPM) |
Maximum Working Pressure (PSIG) | 100 psi (6.9 bar) |
Metal Parts | Stainless Steel Hardware |
Model Number | PM05R-CSS-SMM-B02 |
Model Series | 1/2" Ported Sanitary Transfer |
Options | No Option |
Product Notes | Standard valve Block (No Solenoid) |
Quick Specs | DIAP PUMP 1/2IN (PSEUDO) |
Solids (Inches) | 3/32" (2.4mm) |
Temperature Range | -40° to 225° F (-40° to 107° C) |
Type | FDA Compliant Sanitary Pump |
Valve Balls | Santoprene |
Valve / Seat / O-Ring | Stainless Steel |
Type | Title | Link | |
---|---|---|---|
Expert Series Diaphragm Pumps Brochure | View | ||
PM05P 1/2" Ported Sanitary Transfer Datasheet | View | ||
PM05R-CSS-SAA-B02 Datasheet | View | ||
PM05R 1/2" Ported Sanitary Transfer Manual | View | ||
PM05R 1/2" Sanitary Manual | View | ||
PM05R-CSS-SAA-B02 ARO Pump Repair Parts Exploded View, Fluid Section | View | ||
PM05R-CSS-SAA-B02 ARO Pump Repair Parts Exploded View, Air Section | View |
Key | Part No | Description | Qty | shipping | price |
---|
