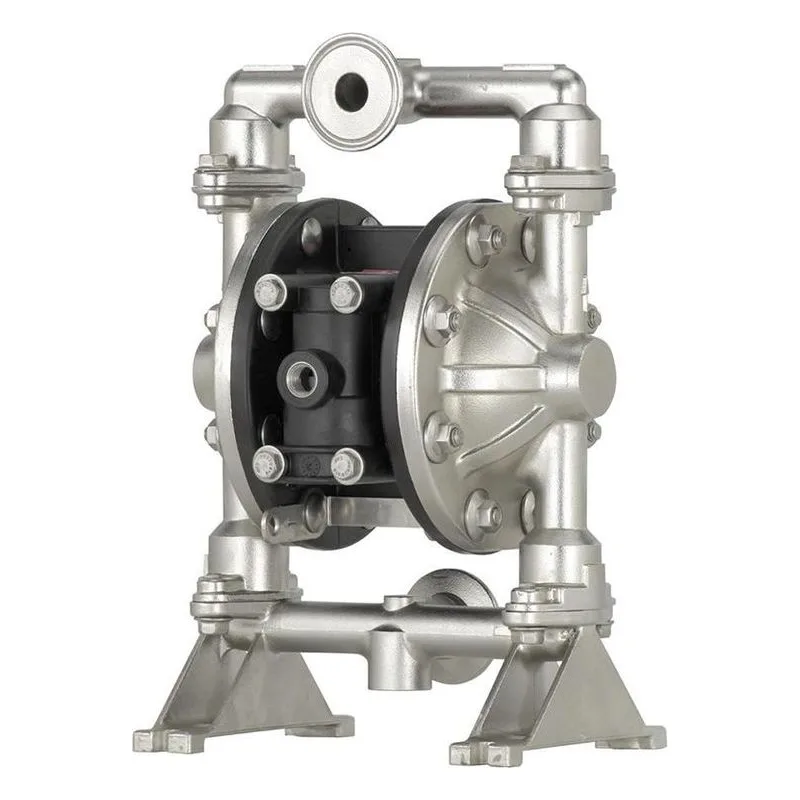

ARO PM05R-CSS-SMM-B02 PM Series 1/2" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Polypropylene Center Body, Stainless Steel Hardware, Fluid Caps & Manifold. Stainless Steel Seats, Medical Grade Santoprene Balls & Diaphragms, 1-1/2" Sanitary Flange Connection. An Ingersoll Rand Business.
ARO PM05R-CSS-SMM-B02 PM Series 1/2" Ported Sanitary Transfer AODD Diaphragm Pump, FDA Compliant. Polypropylene Center Body, Stainless Steel Hardware, Fluid Caps & Manifold. Stainless Steel Seats, Medical Grade Santoprene Balls & Diaphragms, 1-1/2" Sanitary Flange Connection. An Ingersoll Rand Business.
Air Inlet | 1/4 - 18 PTF SAE Short |
Connection Size | 1/2" |
Connection Type | 1-1/2" Sanitary Flange |
Diaphragm | Medical Grade Santoprene |
Discharge Volume Per Cycle | 0.039 Gal (0.15 Lit) |
Inlet Pressure (PSI) | 100 psig (6.9 bar) |
Liquid End Configuration | Stainless Steel Fluid Caps/Manifold |
Material | Polypropylene Center Body |
Maximum Flow (GPM) | 12 GPM (45.4 LPM) |
Maximum Working Pressure (PSIG) | 100 psi (6.9 bar) |
Metal Parts | Stainless Steel Hardware |
Options | No Option |
Part Number | PM05R-CSS-SAA-B02 |
Product Notes | Standard valve Block (No Solenoid) |
Quick Specs | 1/2" PUMP ASSEMBLY (SST SANITARY) |
Solids (Inches) | 3/32" (2.4mm) |
Temperature Range | -40° to 225° F (-40° to 107° C) |
Type | FDA Compliant Sanitary Pump |
Valve Balls | Medical Grade Santoprene |
Valve / Seat / O-Ring | Stainless Steel |
