Image shown may not be actual product
A200-FPP-GNPN-S70

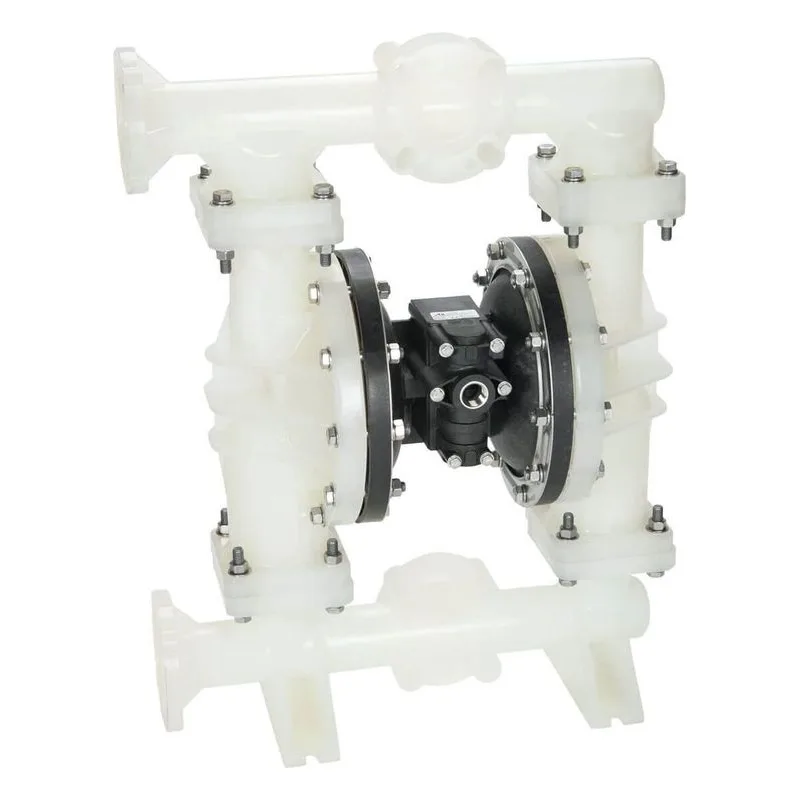

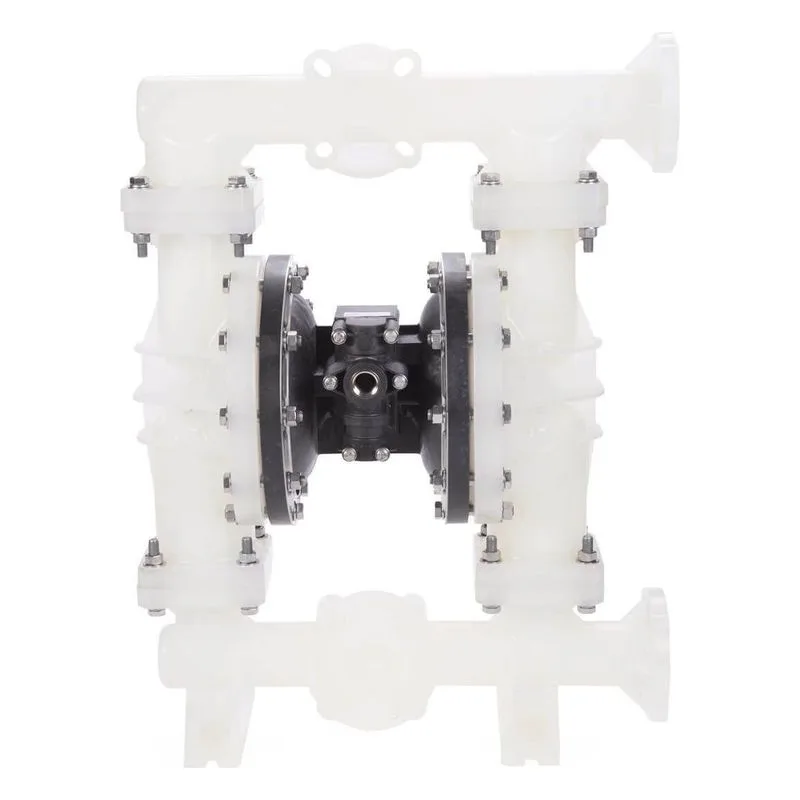

All-Pro A200-FPP-GNPN-S70 A200 Plastic Non Metallic Diaphragm Pumps. 160 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 2" Liquid Inlet and a 2" Liquid Discharge and 17 ft-H2O (5.2 m-H2O) Dry, 29 ft-H2O (8.8 m-H2O) Wet Maximum Lift.Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.
$4,094.26
- Best Price Guarantee!
- 818PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
- Repair Parts
A200-FPP-GNPN-S70
All-Pro A200-FPP-GNPN-S70 A200 Plastic Non Metallic Diaphragm Pumps. 160 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 2" Liquid Inlet and a 2" Liquid Discharge and 17 ft-H2O (5.2 m-H2O) Dry, 29 ft-H2O (8.8 m-H2O) Wet Maximum Lift.Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.
| Air Inlet | 3/4" FNPT |
| Connections / Discharge (Inches) | 2" |
| Connection Type | ANSI / DIN FLANGE |
| Diaphragm | Bunalast |
| Fluid Port | Default (Suction Right / Discharge Right) |
| Inlet | 2" |
| Material | Polypropylene |
| Maximum Flow (GPM) | 160 GPM |
| Maximum Pressure (PSI) | 120 PSI |
| Max Suction Lift | 17 ft-H2O (5.2 m-H2O) Dry, 29 ft-H2O (8.8 m-H2O) Wet |
| Product Notes | Stainless Steel Hardware, Standard Muffler |
| Size | A200 |
| Solids (Inches) | 1/4" |
| Valve Balls | Buna-N |
| Valve / Seat / O-Ring | Polypropylene Valve Seat |
Repair Parts for A200-FPP-GNPN-S70
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | AWE-200-GNPN-M | Ships in | $390.07 | ||
| AAK-200-P | Ships in | $361.26 | ||
