Plastic Non Metallic Diaphragm Pumps

Plastic Non Metallic Diaphragm Pumps

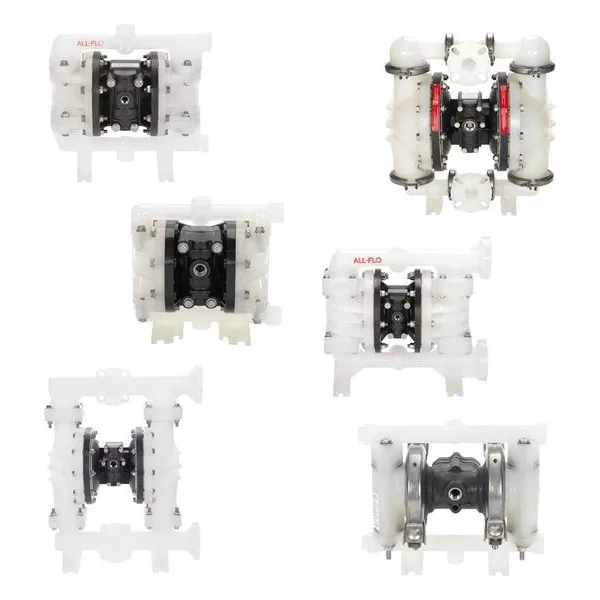

All-Flo Plastic Non-Metalic Air Operated Diaphram Pumps

Available in either polypropylene or PVDF housings, our general-purpose plastic air-operated double diaphragm (AODD) pumps cater to various chemical applications. Polypropylene is suitable for a wide range of chemicals, while PVDF offers enhanced chemical resistance to both acids and bases, along with superior temperature and abrasion protection compared to polypropylene.

Plastic Non-Metallic All-Flo AODD Pump Sizes

  • 1/4" A025
  • 3/8" C038
  • 1/2" A050
  • 3/4" A075
  • 1" A100
  • 1 1/2 C150
  • 2" A200

Plastic Non-Metallic Air Operated Double Diaphragm Pump Spare Repair Parts, Kits and Accessories available now!



Search Results

(149 results)
Sort & Filter 2
Series: Plastic Non Metallic Diaphragm Pumps Remove FilterManufacturer: All-Flo Remove FilterClear all
  • A050-SPK-TTKT-S70

    A050-SPK-TTKT-S70

    All-Flo

    All-Flo A050-SPK-TTKT-S70 A Series A050 Bolted Plastic 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" NPT/BSP Connections. Polypropylene Air Section, PVDF Liquid Section & Seats, PTFE Diaphragms, Valve Balls & O-Rings. 17 gpm (64.4 lpm) Maximum Flow, 1/8" (3.2mm) Max Solids. Wet End Repair Kit AWE-050-TTKT-P, Air End Kit AAK-050-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,322.66

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A025-SPP-TTPV-S70

    A025-SPP-TTPV-S70

    All-Flo

    All-Flo A025-SPP-TTPV-S70 A Series A025 Bolted Plastic 1/4" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/4" NPT/BSP Connections. Polypropylene Air, Liquid Sections & Valve Seats, PTFE Diaphragms & Balls, FKM O-Rings. 5.7 gpm (21.6 lpm) Maximum Flow, 1/16" (1.6 mm) Max Solids.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $457.56

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • A050-SPP-TTPT-S70

    A050-SPP-TTPT-S70

    All-Flo

    All-Flo A050-SPP-TTPT-S70 A Series A050 Bolted Plastic 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" NPT/BSP Connections. Polypropylene Air, Liquid Sections & Valve Seats, PTFE Diaphragms, Balls & O-Rings. 17 gpm (64.4 lpm) Maximum Flow, 1/8" (3.2mm) Max Solids. Wet End Repair Kit AWE-050-TTPT-P, Air End Kit AAK-050-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $765.06

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A075-NPK-TTKT-S70

    A075-NPK-TTKT-S70

    All-Flo

    All-Flo A075-NPK-TTKT-S70 A Series A075 Bolted Plastic 3/4" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 3/4" NPT Connections. Polypropylene Air Section, PVDF Liquid Section & Seats, PTFE Diaphragms, Valve Balls & O-Rings. 17 gpm (64.4 lpm) Maximum Flow, 1/8" (3.2mm) Max Solids. Wet End Repair Kit AWE-075-TTKT-P, Air End Kit AAK-075-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,591.62

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A025-SPP-GGPN-S70

    A025-SPP-GGPN-S70

    All-Flo

    All-Flo A025-SPP-GGPN-S70 A Series A025 Bolted Plastic 1/4" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/4" NPT/BSP Connections. Polypropylene Air, Liquid Sections & Valve Seats, Geolast Diaphragms & Balls, Buna-N O-Rings. 5.7 gpm (21.6 lpm) Maximum Flow, 1/16" (1.6 mm) Max Solids.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $335.38

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • A025-SPP-SSPE-S70

    A025-SPP-SSPE-S70

    All-Flo

    All-Flo A025-SPP-SSPE-S70 A Series A025 Bolted Plastic 1/4" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/4" NPT/BSP Connections. Polypropylene Air, Liquid Sections & Valve Seats, Santoprene Diaphragms & Balls, EPDM O-Rings. 5.7 gpm (21.6 lpm) Maximum Flow, 1/16" (1.6 mm) Max Solids.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $334.56

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • A025-SPP-TTPT-S70

    A025-SPP-TTPT-S70

    All-Flo

    All-Flo A025-SPP-TTPT-S70 A Series A025 Bolted Plastic 1/4" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/4" NPT/BSP Connections. Polypropylene Air, Liquid Sections & Valve Seats, PTFE Diaphragms, Balls & O-Rings. 5.7 gpm (21.6 lpm) Maximum Flow, 1/16" (1.6 mm) Max Solids.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $457.56

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • A100-FPP-GGPN-S70

    A100-FPP-GGPN-S70

    All-Flo

    All-Flo A100-FPP-GGPN-S70 A Series A100 Bolted Plastic 1" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1" ANSI / DIN Flange Connections. Polypropylene Air, Liquid Sections & Valve Seats, Geolast Diaphragms & Balls, Buna-N O-Rings. 41 gpm (155.8 lpm) Maximum Flow, 1/4" (6.2 mm) Max Solids. Wet End Repair Kit AWE-100-GGPN-P, Air End Kit AAK-100-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    View Item
  • A200-FPP-GGPN-S70

    A200-FPP-GGPN-S70

    All-Flo

    All-Flo A200-FPP-GGPN-S70 A Series A200 Bolted Plastic 2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 2" ANSI / DIN Flange Connections. Polypropylene Air, Liquid Sections & Valve Seats, Geolast Diaphragms & Balls, Buna-N O-Rings. 160 gpm (605 lpm) Maximum Flow, 1/4" (6.4 mm) Max Solids. Wet End Repair Kit AWE-200-GGPN-P, Air End Kit AAK-200-P Available to order.

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    Call For Pricing

    • Ships via Freight
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    View Item
  • A100-CPP-GNPN-S70

    A100-CPP-GNPN-S70

    All-Flo

    All-Pro A100-CPP-GNPN-S70 A100 Plastic Non Metallic Diaphragm Pumps. 41 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 1" Liquid Inlet and a 1" Liquid Discharge and 15 ft-H2O (4.6 m-H2O) Dry, 26 ft-H2O (7.9 m-H2O) Wet Maximum Lift. Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,195.56

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A200-FPP-GNPN-S70

    A200-FPP-GNPN-S70

    All-Flo

    All-Pro A200-FPP-GNPN-S70 A200 Plastic Non Metallic Diaphragm Pumps. 160 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 2" Liquid Inlet and a 2" Liquid Discharge and 17 ft-H2O (5.2 m-H2O) Dry, 29 ft-H2O (8.8 m-H2O) Wet Maximum Lift.Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $4,094.26

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A200-FPP-GNPN-470

    A200-FPP-GNPN-470

    All-Flo

    All-Pro A200-FPP-GNPN-470 A200 Plastic Non Metallic Diaphragm Pumps. 160 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 2" Liquid Inlet and a 2" Liquid Discharge and 17 ft-H2O (5.2 m-H2O) Dry, 29 ft-H2O (8.8 m-H2O) Wet Maximum Lift. Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $4,341.90

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
    Show More
