A200-FPK-VVKV-470

Image shown may not be actual product

A200-FPK-VVKV-470

0 reviews

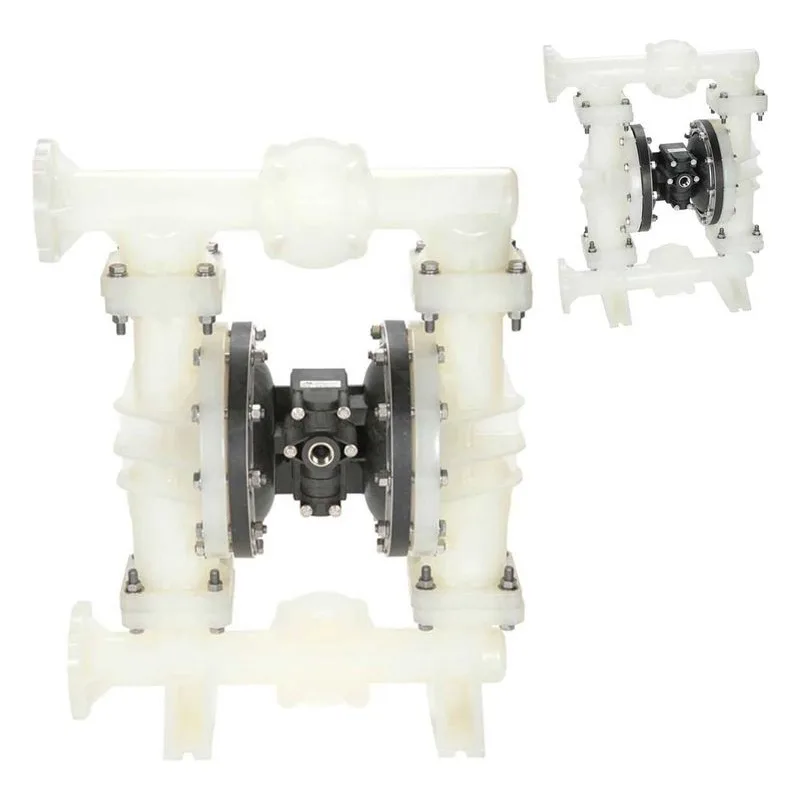

All-Flo A200-FPK-VVKV-470 A Series A200 Bolted Plastic 2" Air Operated Double-Diaphragm AODD Pump. All Ports Open (Standard ports will be left un-plugged), 2" ANSI / DIN Flange Connections. Polypropylene Air Section, PVDF Liquid Section & Seats, FKM Diaphragms, Valve Balls & O-Rings. 160 gpm (605 lpm) Maximum Flow, 1/4" (6.4 mm) Max Solids. Wet End Repair Kit AWE-200-, Air End Kit AAK-200-P Available to order.

$11,489.02

Best Price Guarantee!
2297PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: A200-FPK-VVKV-470

Overview
Reviews
Literature/Manuals
Repair Parts

A200-FPK-VVKV-470

Air Chamber	Polypropylene Intermediate-Pneumatic Shift
Air Inlet	3/4" FNPT
Air Supply Pressure	120 psi (8.3 bar) Maximum
Base Model Number	A200
Configuration	All Ports Open (Standard ports will be left un-plugged)
Connection Type	ANSI / DIN Flange
Construction	Bolted
Diaphragm	FKM
Discharge NPT (Inches)	2"
Material	Polypropylene
Maximum Flow (GPM)	160 gpm (605 lpm)

Max Suction Lift	Dry: 17 ft (5.2 m); Wet: 29 ft (8.8 m)
Model Series	A Series
Other Factors	No Special Options
Product Notes	Stainless Steel Hardware, Standard Muffler
Pump Size	2"
Solids (Inches)	1/4" (6.4 mm)
Suction NPT (Inches)	2"
Valve Balls	FKM
Valve / Seat / O-Ring	PVDF Seat / FKM O-Rings
Wetted Parts	PVDF
