A075-NPY-VV3V-SF0

Image shown may not be actual product

A075-NPY-VV3V-SF0

0 reviews

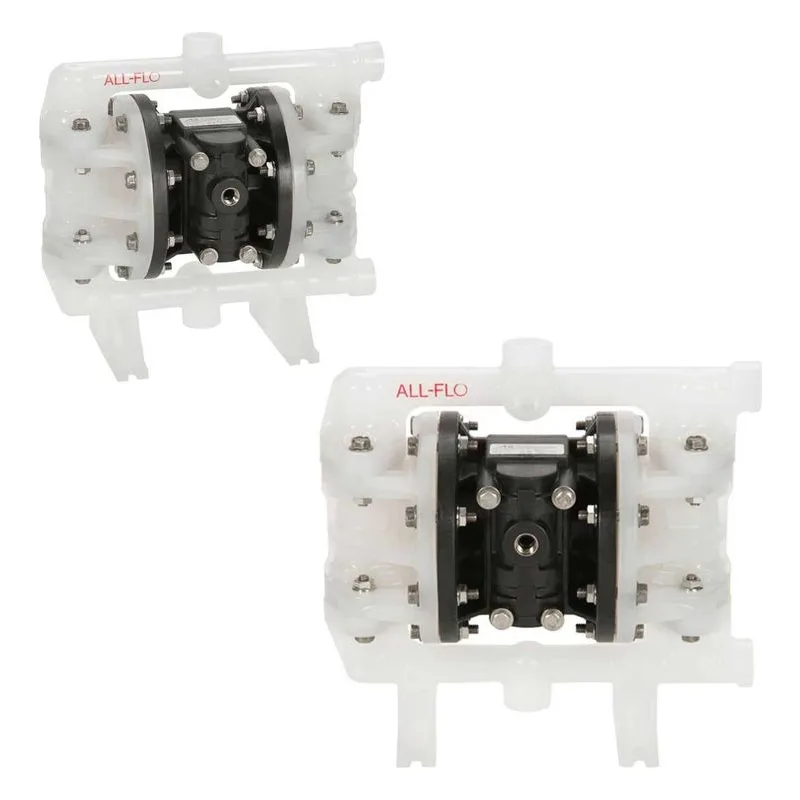

All-Flo A075-NPY-VV3V-SF0 A Series A075 Bolted Plastic 3/4" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 3/4" NPT Connections. Polypropylene Air Section, Conductive Nylon Liquid Section, FKM Diaphragms, Balls & O-Rings, Stainless Steel Seats. 17 gpm (64.4 lpm) Maximum Flow, 1/8" (3.2mm) Max Solids. Wet End Repair Kit AWE-075-VV3V-P, Air End Kit AAK-075-P Available to order.

$1,321.84

Best Price Guarantee!
264PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: A075-NPY-VV3V-SF0

Overview
Reviews
Literature/Manuals
Repair Parts

A075-NPY-VV3V-SF0

Air Chamber	Polypropylene Intermediate-Pneumatic Shift
Air Inlet	1/4" FNPT
Air Supply Pressure	120 psi (8.3 bar) Maximum
Base Model Number	A075
Configuration	Suction/Discharge Right
Connection Type	NPT
Construction	Bolted
Diaphragm	FKM
Discharge NPT (Inches)	3/4"
Material	Geolast
Maximum Flow (GPM)	17 gpm (64.4 lpm)

Max Suction Lift	Dry: 15 ft (4.5 m); Wet: 26 ft (7.9 m)
Model Series	A Series
Other Factors	No Special Options
Product Notes	Stainless Steel Hardware, Standard Muffler, Grounding Lug Installed
Pump Size	3/4"
Solids (Inches)	1/8" (3.2mm)
Suction NPT (Inches)	3/4"
Valve Balls	FKM
Valve / Seat / O-Ring	Stainless Steel Seat / FKM O-Rings
Wetted Parts	Conductive Nylon
