A150-FA3-SS3E-B70

Image shown may not be actual product

A150-FA3-SS3E-B70

0 reviews

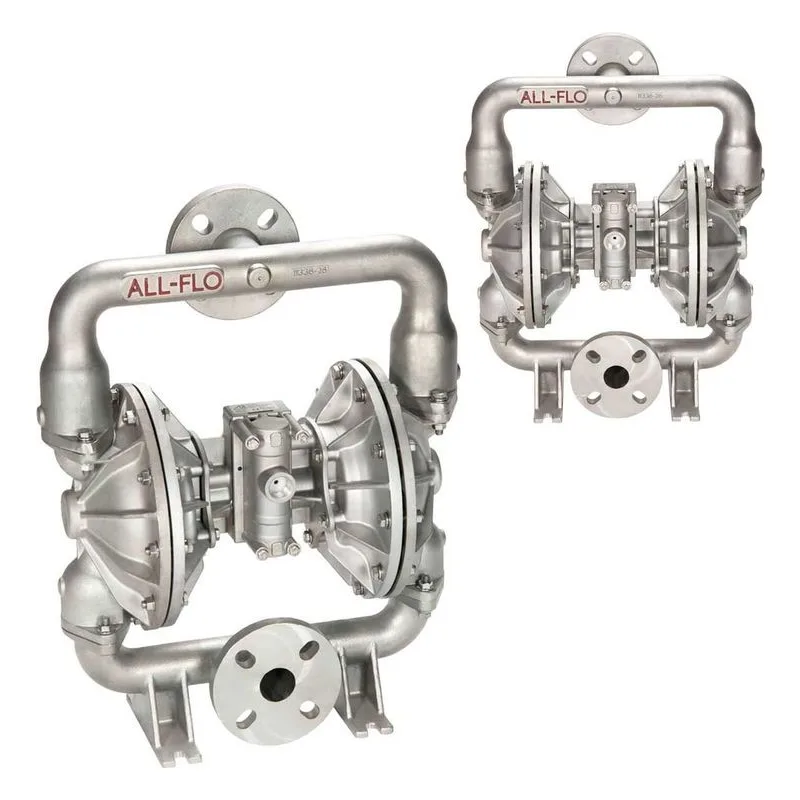

All-Flo A150-FA3-SS3E-B70 A Series A150 Bolted Metal 1-1/2" Air Operated Double-Diaphragm AODD Pump. Suction Center Front / Discharge Center Rear, 1-1/2" ANSI / DIN Flange Connections. Aluminum Air Section, 316 Stainless Steel Liquid Section, Santoprene Diaphragms & Valve Balls, EPDM O-Rings, Stainless Steel Seats. 115 gpm (435 lpm) Maximum Flow, 1/4" (6.4 mm) Max Solids. Wet End Repair Kit AWE-150-SS3E-M, Air End Kit AAK-150-A Available to order.

$3,899.92

Best Price Guarantee!
779PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: A150-FA3-SS3E-B70

Overview
Reviews
Literature/Manuals
Repair Parts

A150-FA3-SS3E-B70

Air Chamber	Aluminum
Air Inlet	3/4" FNPT
Air Supply Pressure	120 psi (8.3 bar) Maximum
Base Model Number	A150
Configuration	Suction Center Front / Discharge Center Rear
Connection Type	ANSI / DIN Flange
Construction	Bolted
Diaphragm	Santoprene
Discharge NPT (Inches)	1-1/2"
Material	316 Stainless Steel
Maximum Flow (GPM)	115 gpm (435 lpm)

Max Suction Lift	Dry: 22 ft (6.7 m); Wet: 31 ft (9.4 m)
Model Series	A Series
Other Factors	No Special Options
Product Notes	Stainless Steel Hardware, Plastic Muffler
Pump Size	1-1/2"
Solids (Inches)	1/4" (6.4 mm)
Suction NPT (Inches)	1-1/2"
Valve Balls	Santoprene
Valve / Seat / O-Ring	Stainless Steel Seat / EPDM O-Rings
Wetted Parts	316 Stainless Steel
