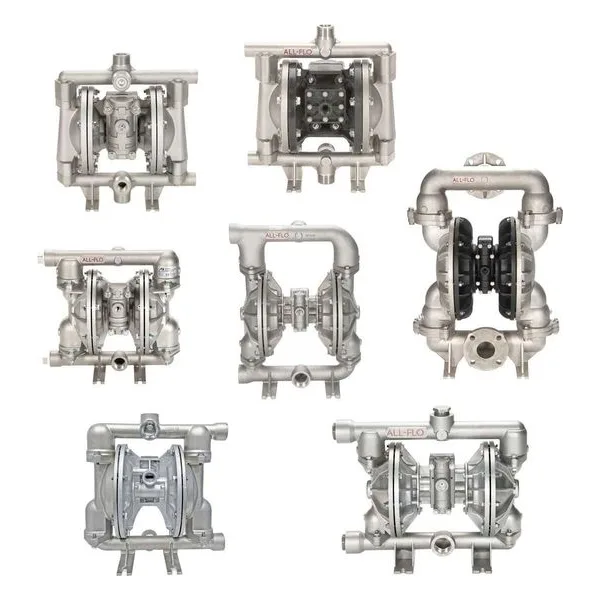

Metallic Diaphragm Pumps

Metallic Diaphragm Pumps

All-Flo Metal Air Operated Diaphram Pumps

Featuring three material options—aluminum, anodized aluminum, and stainless steel—our general-purpose metallic diaphragm pumps cater to various needs. Aluminum and anodized aluminum AODD pumps offer medium corrosion and abrasion resistance, while stainless steel is perfect for applications requiring higher chemical and abrasion resistance.

Metallic All-Flo AODD Pump Sizes

  • 1/2" Metal A050
  • 3/4" Metal A075
  • 1" Metal A100
  • 1" Stainless Steel A101
  • 1 1/2" Metal A150
  • 2" Metal A200
  • 3"  Metal A300

Metallic Air Operated Double Diaphragm Pump Spare Repair Parts, Kits and Accessories available now!

Search Results

(208 results)
Sort & Filter 2
Series: Metallic Diaphragm Pumps Remove FilterManufacturer: All-Flo Remove FilterClear all
  • A050-NAA-TTYT-S30

    A050-NAA-TTYT-S30

    All-Flo

    All-Flo A050-NAA-TTYT-S30 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" NPT Connections. Aluminum Air & Liquid Sections, PTFE Diaphragms, Valve Balls & O-Rings, Nylon Seats. 13 gpm (49.2 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-TTYT-M, Air End Kit AAK-050-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $806.88

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-NA3-GG3N-S70

    A050-NA3-GG3N-S70

    All-Flo

    All-Flo A050-NA3-GG3N-S70 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" NPT Connections. Aluminum Air Section, 316 Stainless Steel Liquid Section & Seats, Geolast Diaphragms & Valve Balls, Buna-N O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-GG3N-M, Air End Kit AAK-050-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,302.98

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-NP3-SS3E-S70

    A050-NP3-SS3E-S70

    All-Flo

    All-Flo A050-NP3-SS3E-S70 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" NPT Connections. Polypropylene Air Section, 316 Stainless Steel Liquid Section & Seats, Santoprene Diaphragms & Valve Balls, EPDM O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-SS3E-M, Air End Kit AAK-050-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,382.52

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A200-NAA-SSPE-B30

    A200-NAA-SSPE-B30

    All-Flo

    All-Flo A200-NAA-SSPE-B30 A Series A200 Bolted Metal 2" Air Operated Double-Diaphragm AODD Pump. Suction Center Front / Discharge Center Rear, 2" NPT Connections. Aluminum Air & Liquid Sections, Santoprene Diaphragms & Valve Balls, Polypropylene Seats, EPDM O-Rings. 190 gpm (719 lpm) Maximum Flow, 1/4" (6.4 mm) Max Solids. Wet End Repair Kit AWE-200-SSPE-M, Air End Kit AAK-200-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,658.04

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A200-NAA-TTAT-B30

    A200-NAA-TTAT-B30

    All-Flo

    All-Flo A200-NAA-TTAT-B30 A Series A200 Bolted Metal 2" Air Operated Double-Diaphragm AODD Pump. Suction Center Front / Discharge Center Rear, 2" NPT Connections. Aluminum Air, Liquid Sections & Valve Seats, PTFE Diaphragms, Balls & O-Rings. 180 gpm (681 lpm) Maximum Flow, 1/4" (6.4 mm) Max Solids. Wet End Repair Kit AWE-200-TTAT-M, Air End Kit AAK-200-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $2,618.26

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-BAA-GTPN-S30

    A050-BAA-GTPN-S30

    All-Flo

    All-Flo A050-BAA-GTPN-S30 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" BSPT Connections. Aluminum Air & Liquid Sections, Geolast Diaphragms, PTFE Valve Balls, Polypropylene Seats, Buna-N O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-GTPN-M, Air End Kit AAK-050-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $642.06

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-BAA-SSPE-S30

    A050-BAA-SSPE-S30

    All-Flo

    All-Flo A050-BAA-SSPE-S30 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" BSPT Connections. Aluminum Air & Liquid Sections, Santoprene Diaphragms & Valve Balls, Polypropylene Seats, EPDM O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-SSPE-M, Air End Kit AAK-050-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $642.06

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-BAA-TTYT-S30

    A050-BAA-TTYT-S30

    All-Flo

    All-Flo A050-BAA-TTYT-S30 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" BSPT Connections. Aluminum Air & Liquid Sections, PTFE Diaphragms, Valve Balls & O-Rings, Nylon Seats. 13 gpm (49.2 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-TTYT-M, Air End Kit AAK-050-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $826.56

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-BAA-VVYV-S30

    A050-BAA-VVYV-S30

    All-Flo

    All-Flo A050-BAA-VVYV-S30 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1/2" BSPT Connections. Aluminum Air & Liquid Sections, FKM Diaphragms, Valve Balls & O-Rings, Nylon Seats. 14 gpm (53.0 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-VVYV-M, Air End Kit AAK-050-A Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $860.18

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-BP3-GG3N-4F0

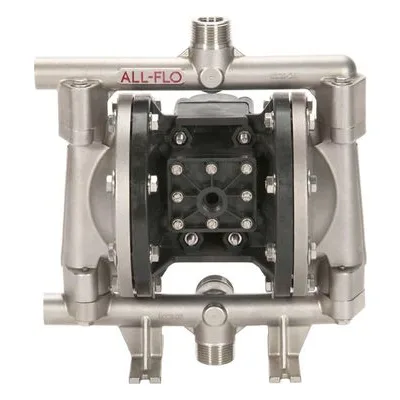

    A050-BP3-GG3N-4F0

    All-Flo

    All-Flo A050-BP3-GG3N-4F0 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. All Ports Open (Standard ports will be left un-plugged), 1/2" BSPT Connections. Polypropylene Air Section, 316 Stainless Steel Liquid Section & Seats, Geolast Diaphragms & Valve Balls, Buna-N O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-GG3N-M, Air End Kit AAK-050-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,544.06

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-BP3-SS3E-4F0

    A050-BP3-SS3E-4F0

    All-Flo

    All-Flo A050-BP3-SS3E-4F0 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. All Ports Open (Standard ports will be left un-plugged), 1/2" BSPT Connections. Polypropylene Air Section, 316 Stainless Steel Liquid Section & Seats, Santoprene Diaphragms & Valve Balls, EPDM O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-SS3E-M, Air End Kit AAK-050-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,547.34

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
  • A050-BP3-TT3T-4F0

    A050-BP3-TT3T-4F0

    All-Flo

    All-Flo A050-BP3-TT3T-4F0 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. All Ports Open (Standard ports will be left un-plugged), 1/2" BSPT Connections. Polypropylene Air Section, 316 Stainless Steel Liquid Section & Valve Seats, PTFE Diaphragms, Balls & O-Rings. 13 gpm (49.2 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-TT3T-M, Air End Kit AAK-050-P Available to order.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available

    $1,770.38

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    • Repair Parts Available
    Quantity:add to cart
