A050-BP3-SS3E-4F0

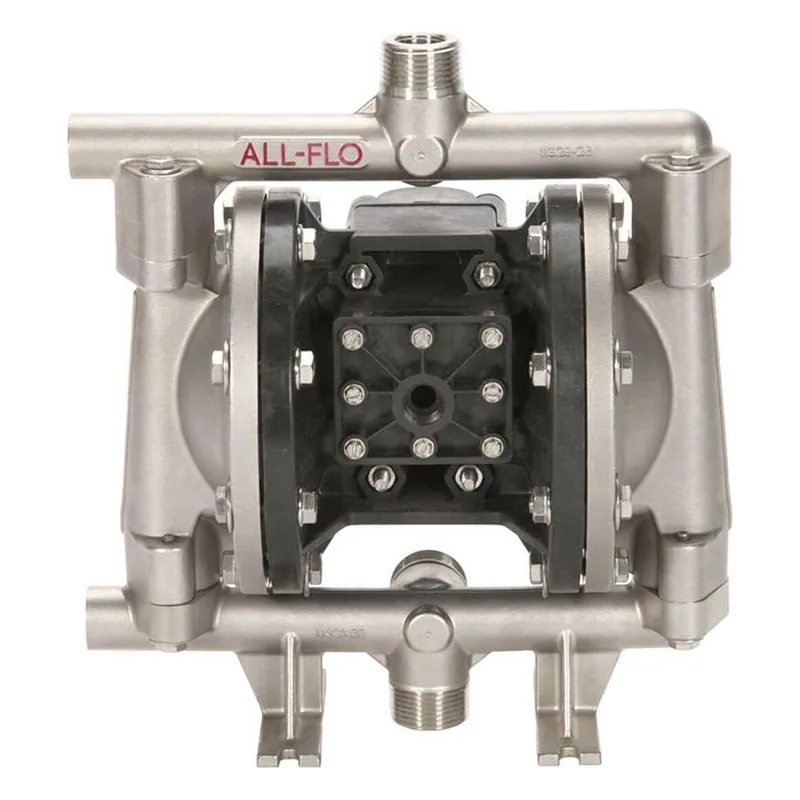

All-Flo A050-BP3-SS3E-4F0 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. All Ports Open (Standard ports will be left un-plugged), 1/2" BSPT Connections. Polypropylene Air Section, 316 Stainless Steel Liquid Section & Seats, Santoprene Diaphragms & Valve Balls, EPDM O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-SS3E-M, Air End Kit AAK-050-P Available to order.
$1,547.34
- Best Price Guarantee!
- 309PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
- Repair Parts
A050-BP3-SS3E-4F0
All-Flo A050-BP3-SS3E-4F0 A Series A050 Bolted Metal 1/2" Air Operated Double-Diaphragm AODD Pump. All Ports Open (Standard ports will be left un-plugged), 1/2" BSPT Connections. Polypropylene Air Section, 316 Stainless Steel Liquid Section & Seats, Santoprene Diaphragms & Valve Balls, EPDM O-Rings. 15 gpm (56.8 lpm) Maximum Flow, 1/8" (3.2 mm) Max Solids. Wet End Repair Kit AWE-050-SS3E-M, Air End Kit AAK-050-P Available to order.
| Air Chamber | Polypropylene, Pneumatic Shift |
| Air Inlet | 1/4" FNPT |
| Air Supply Pressure | 120 psi (8.3 bar) Maximum |
| Base Model Number | A050 |
| Configuration | All Ports Open (Standard ports will be left un-plugged) |
| Connection Type | BSPT |
| Construction | Bolted |
| Diaphragm | Santoprene |
| Discharge NPT (Inches) | 1/2" |
| Material | Conductive Nylon |
| Maximum Flow (GPM) | 15 gpm (56.8 lpm) |
| Max Suction Lift | Dry: 15 ft (4.5 m); Wet: 31ft (9.4m) |
| Model Series | A Series |
| Other Factors | No Special Options |
| Product Notes | Stainless Steel Hardware, Plastic Muffler, Grounding Lug Installed |
| Pump Size | 1/2" |
| Solids (Inches) | 1/8" (3.2 mm) |
| Suction NPT (Inches) | 1/2" |
| Valve Balls | Santoprene |
| Valve / Seat / O-Ring | 316 Stainless Steel Seat / EPDM O-Rings |
| Wetted Parts | 316 Stainless Steel |
Repair Parts for A050-BP3-SS3E-4F0
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | AWE-050-SS3E-M | Ships in | $177.30 | ||
| AAK-050-P | Ships in | $220.68 | ||
