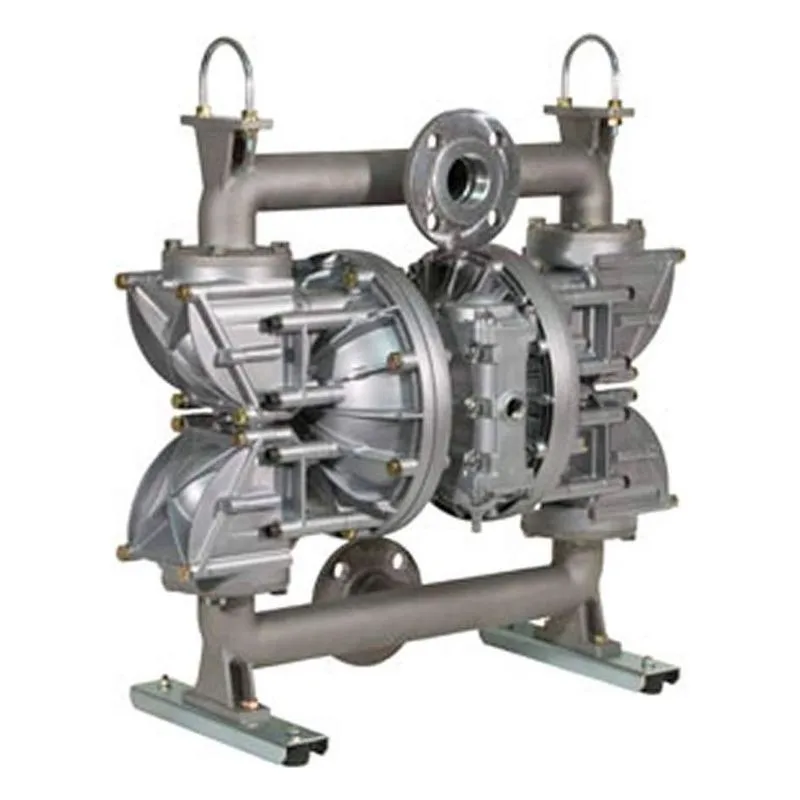

NDP-50FAS FLAPPER Yamada Pumps 854251-TPO, PumpCatalog.com

NDP-50 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 2" ANSI B16.5 #150 Kynar® (PVDF) 2" ANSI B16.5 #150 Aluminum (ADC-12) 2" ANSI B16.5 #150 (with tapped 2" Female NPT) Stainless Steel (316) 2" ANSI B16.5 #150 or 2" Female NPT Cast Iron 2" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 2" ANSI B16.5 #150
Kynar® (PVDF) 2" ANSI B16.5 #150
Aluminum (ADC-12) 2" ANSI B16.5 #150
(with tapped 2" Female NPT)
Stainless Steel (316) 2" ANSI B16.5 #150
or 2" Female NPT
Cast Iron 2" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

* The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Air Exhaust	1" Female NPT (includes silencer)
Air Inlet	3/4" Female NPT (includes ball valve)
Air Supply Pressure	30 to 100 PSI (0.2 to 0.7 MPa)
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.79 GPM (3.0 L/min)
Fluid Port	2" (NPT or ANSI Flange)
Liquid Temperature	180°F (82°C) Max
Material	Aluminum - Flapper Pump (2" ANSI Flange with tapped FNPT Inlet and Outlet)
Maximum Flow (GPM)	150 GPM / 567.8 LPM

Max Suction Lift	24 Feet
Model Number	854251-TPO
Model Series	NDP-50 Models
Motor	Aluminum Air Motor
Quick Specs	NDP-50FAS FLAPPER
Solids (Inches)	2" (50 mm)
Valve / Seat / O-Ring	Santoprene

Type	Title		Link
	Yamada Pumps NDP-50FAN Pump Brochure		View
	Yamada Pumps NDP-50 Pump Manual		View
	Yamada Pumps NDP-50 Pump Specifications		View
	NDP-50 Operation Manual		View
	NDP-50FAS FLAPPER Repair Parts Breakdown		View

Product		shipping	price
	716032	Ships in 1-2 Weeks	Call for pricing
	715767	Ships in 1-2 Weeks	$570.00	Select item
	795117	Ships in 1-2 Weeks	$123.00	Select item
	716030	Ships in 1-2 Weeks	$150.00	Select item
	804719	Ships in 1-2 Weeks	$757.00	Select item
	711934	Ships in 1-2 Weeks	$178.00	Select item
	711936	Ships in 1-2 Weeks	$267.00	Select item
	780325	Ships in	$46.00	Select item
	711937	Ships in 1-2 Weeks	$8.00	Select item
	771740	Ships in 1-2 Weeks	$8.00	Select item
	832163	Ships in 1-2 Weeks	$23.00	Select item
	640020	Ships in 1-2 Weeks	$5.00	Select item
	685444	Ships in 1-2 Weeks	$10.00	Select item
	640029	Ships in 1-2 Weeks	$5.00	Select item
	771742	Ships in 1-2 Weeks	$28.00	Select item
	683812	Ships in 1-2 Weeks	$5.00	Select item
	802971	Ships in 1-2 Weeks	$454.00	Select item
	711931	Ships in 1-2 Weeks	$289.00	Select item
	580999	Ships in 1-2 Weeks	$28.00	Select item
	581000	Ships in 1-2 Weeks	$28.00	Select item
	771735	Ships in 1-2 Weeks	$9.00	Select item
	712976	Ships in 1-2 Weeks	$21.00	Select item
	771738	Ships in 1-2 Weeks	$9.00	Select item
	685036	Ships in 1-2 Weeks	$8.00	Select item
	805084	Ships in 1-2 Weeks	$194.00	Select item
	803675	Ships in 1-2 Weeks	$61.00	Select item
	640036	Ships in 1-2 Weeks	$5.00	Select item
	805085	Ships in 1-2 Weeks	$60.00	Select item
	771735	Ships in 1-2 Weeks	$9.00	Select item
	711932	Ships in 1-2 Weeks	$12.00	Select item
	771734	Ships in 1-2 Weeks	$6.00	Select item
	640005	Ships in 1-2 Weeks	$5.00	Select item
	684128	Ships in 1-2 Weeks	$5.00	Select item
	771712	Ships in 1-2 Weeks	$21.00	Select item
	684240	Ships in 1-2 Weeks	$8.00	Select item
	684987	Ships in 1-2 Weeks	$5.00	Select item
	711900	Ships in 1-2 Weeks	$100.00	Select item
	711904	Ships in 1-2 Weeks	$118.00	Select item
	686099	Ships in 1-2 Weeks	$14.00	Select item
	771976	Ships in 1-2 Weeks	$97.00	Select item
	795115-AL	Ships in	$199.00	Select item
	715765	Ships in 1-2 Weeks	$13.00	Select item
	795125-TPO	Ships in	$199.00	Select item
	685184	Ships in 1-2 Weeks	$4.00	Select item
	631172	Ships in 1-2 Weeks	$5.00	Select item
	773000	Ships in 1-2 Weeks	$9.00	Select item
	621106	Ships in 1-2 Weeks	$5.00	Select item
50FA01			Call for Shipping
	621173	Ships in 1-2 Weeks	$5.00	Select item
	684322	Ships in 1-2 Weeks	Call for pricing
	686100	Ships in 1-2 Weeks	$11.00	Select item
	716078	Ships in 1-2 Weeks	$25.00	Select item
	771402	Ships in 1-2 Weeks	$6.00	Select item
	683408	Ships in 1-2 Weeks	$28.00	Select item
	682740	Ships in 1-2 Weeks	$5.00	Select item
	686045	Ships in 1-2 Weeks	Call for pricing
	631014	Ships in 1-2 Weeks	$5.00	Select item
	631917	Ships in 1-2 Weeks	$5.00	Select item
	611197	Ships in 1-2 Weeks	$4.00	Select item
	631937	Ships in 1-2 Weeks	$4.00	Select item
	631918	Ships in 1-2 Weeks	$5.00	Select item
	686169	Ships in 1-2 Weeks	$4.00	Select item
	611179	Ships in 1-2 Weeks	$5.00	Select item
	619188	Ships in 1-2 Weeks	$6.00	Select item
	686158	Ships in 1-2 Weeks	$11.00	Select item
	611177	Ships in 1-2 Weeks	$5.00	Select item
	627013	Ships in 1-2 Weeks	$5.00	Select item
	611149	Ships in 1-2 Weeks	$5.00	Select item
	682276	Ships in 1-2 Weeks	$5.00	Select item
	716031	Ships in 1-2 Weeks	$150.00	Select item
	640045	Ships in 1-2 Weeks	$6.00	Select item
	683998	Ships in 1-2 Weeks	$6.00	Select item
	772941	Ships in 1-2 Weeks	$24.00	Select item
	770582	Ships in 1-2 Weeks	$12.00	Select item
	K50-FMS	Ships in	$1,014.00	Select item
	K80-AM	Ships in 1-2 Weeks	$449.00	Select item
