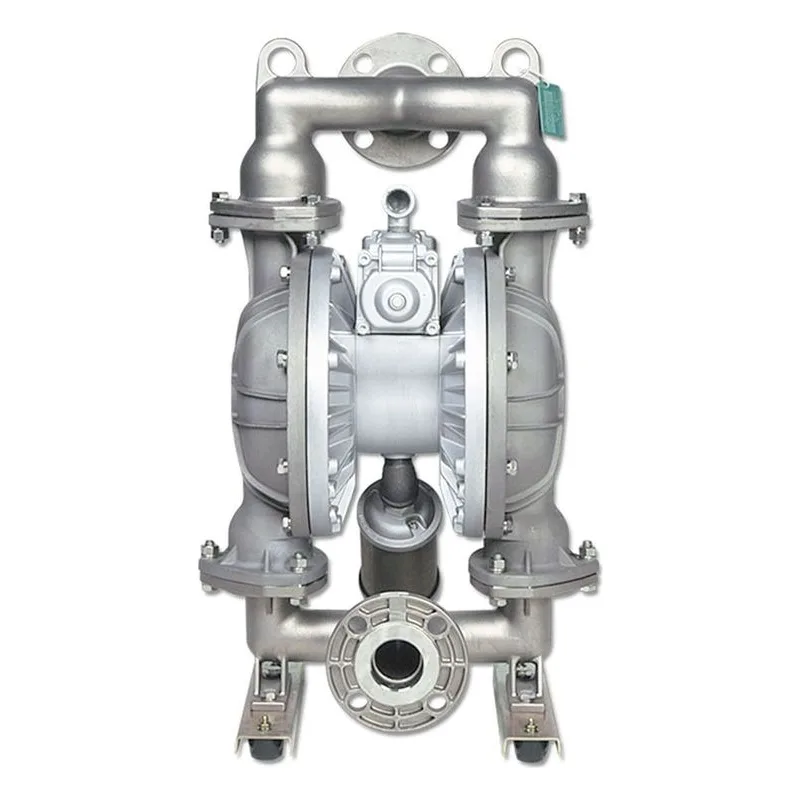

Image shown may not be actual product
NDP-50BSU
Yamada America NDP-50BSU NDP-50 Series Air Operated Double Diaphragm Pump, Model Number 852234-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 2" ANSI Flange Inlet & Outlet, 164 GPM Flow Rate, Passes up to 5/16" (8mm) Solids.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-50BSU
Yamada America NDP-50BSU NDP-50 Series Air Operated Double Diaphragm Pump, Model Number 852234-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 2" ANSI Flange Inlet & Outlet, 164 GPM Flow Rate, Passes up to 5/16" (8mm) Solids.
| Air Exhaust | 1" Female NPT (includes silencer) |
| Air Inlet | 3/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | ANSI Flange |
| Diaphragm | Ultimate (PTFE/EPDM) |
| Discharge NPT (Inches) | 2" |
| Discharge Volume Per Cycle | 0.69 Gallons |
| Fluid Port | 2" |
| Liquid Temperature | 212°F (100°C) |
| Material | 316 Stainless Steel |
| Max Cycles Per Minute | 220 |
| Maximum Flow (GPM) | 164 |
| Max Suction Lift | 19' |
| Model Number | 852234-U |
| Model Series | NDP-50 |
| Motor | Aluminum |
| Solids (Inches) | 5/16" (8mm) |
| Suction NPT (Inches) | 2" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
NDP-50 / NDP-500 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge connection: Polypropylene (PPG) 2" ANSI B16.5 #150 Kynar® (PVDF) 2" ANSI B16.5 #150 Aluminum (ADC-12) 2" ANSI B16.5 #150 (with tapped 2" Female NPT) Stainless Steel (316) 2" ANSI B16.5 #150 or 2" Female NPT Cast Iron 2" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for NDP-50BSU
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 712932 | Ships in 1-2 Weeks | $1,578.00 | ||
 | 712557 | Ships in 1-2 Weeks | $1,367.00 | ||
 | 712556 | Ships in 1-2 Weeks | $1,264.00 | ||
 | 803112 | Ships in 1-2 Weeks | $845.00 | ||
 | 711934 | Ships in 1-2 Weeks | $201.00 | ||
 | 711936 | Ships in 1-2 Weeks | $301.00 | ||
 | 772689 | Ships in 1-2 Weeks | $39.00 | ||
 | 711937 | Ships in 1-2 Weeks | $10.00 | ||
 | 771740 | Ships in 1-2 Weeks | $10.00 | ||
 | 832162 | Ships in 1-2 Weeks | $27.00 | ||
 | 640020 | Ships in 1-2 Weeks | $7.00 | ||
 | 685444 | Ships in 1-2 Weeks | $12.00 | ||
 | 640029 | Ships in 1-2 Weeks | $7.00 | ||
 | 771742 | Ships in 1-2 Weeks | $33.00 | ||
 | 683812 | Ships in 1-2 Weeks | $7.00 | ||
 | 802971 | Ships in 1-2 Weeks | $511.00 | ||
 | 711931 | Ships in 1-2 Weeks | $326.00 | ||
 | 580999 | Ships in 1-2 Weeks | $33.00 | ||
 | 581000 | Ships in 1-2 Weeks | $33.00 | ||
 | 771735 | Ships in 1-2 Weeks | $11.00 | ||
 | 712976 | Ships in 1-2 Weeks | $25.00 | ||
 | 771738 | Ships in 1-2 Weeks | $11.00 | ||
 | 685036 | Ships in 1-2 Weeks | $10.00 | ||
 | 805084 | Ships in 1-2 Weeks | $156.00 | ||
 | 803675 | Ships in 1-2 Weeks | $70.00 | ||
 | 640036 | Ships in 1-2 Weeks | $7.00 | ||
 | 805085 | Ships in 1-2 Weeks | $68.00 | ||
| 771735 | Ships in 1-2 Weeks | $11.00 | ||
 | 711932 | Ships in 1-2 Weeks | $14.00 | ||
| 771734 | Ships in 1-2 Weeks | $8.00 | ||
 | 640005 | Ships in 1-2 Weeks | $7.00 | ||
 | 684128 | Ships in 1-2 Weeks | $7.00 | ||
 | 771712 | Ships in 1-2 Weeks | $25.00 | ||
 | 684240 | Ships in 1-2 Weeks | $10.00 | ||
 | 684987 | Ships in 1-2 Weeks | $7.00 | ||
 | 717130 | Ships in | $118.00 | ||
| 717133 | Ships in | $65.00 | ||
| 833220 | Ships in | $775.00 | ||
 | 711909 | Ships in 1-2 Weeks | $113.00 | ||
 | 770693 | Ships in 1-2 Weeks | $102.00 | ||
| 686974 | Ships in | $53.00 | ||
| 682523 | Ships in 1-2 Weeks | $10.00 | ||
| 711928 | Ships in 1-2 Weeks | $68.00 | ||
 | 771402 | Ships in 1-2 Weeks | $8.00 | ||
 | 621180 | Ships in 1-2 Weeks | $10.00 | ||
| 631174 | Ships in 1-2 Weeks | $7.00 | ||
| 631937 | Ships in 1-2 Weeks | $6.00 | ||
 | 621202 | Ships in 1-2 Weeks | $7.00 | ||
 | 631175 | Ships in 1-2 Weeks | $7.00 | ||
 | 631938 | Ships in 1-2 Weeks | $6.00 | ||
 | 628014 | Ships in 1-2 Weeks | $10.00 | ||
| 621175 | Ships in 1-2 Weeks | $7.00 | ||
 | 628013 | Ships in 1-2 Weeks | $7.00 | ||
| 611149 | Ships in 1-2 Weeks | $7.00 | ||
| 682276 | Ships in 1-2 Weeks | $7.00 | ||
 | 643069 | Ships in 1-2 Weeks | $22.00 | ||
 | 804764 | Ships in 1-2 Weeks | $107.00 | ||
 | 643139 | Ships in 1-2 Weeks | $26.00 | ||
| 773435 | Ships in | $5.00 | ||
 | K50-MU | Ships in | Call for pricing | ||
 | K45-AM | Ships in 1-2 Weeks | $423.00 | ||
