NDP-50BPU-PP

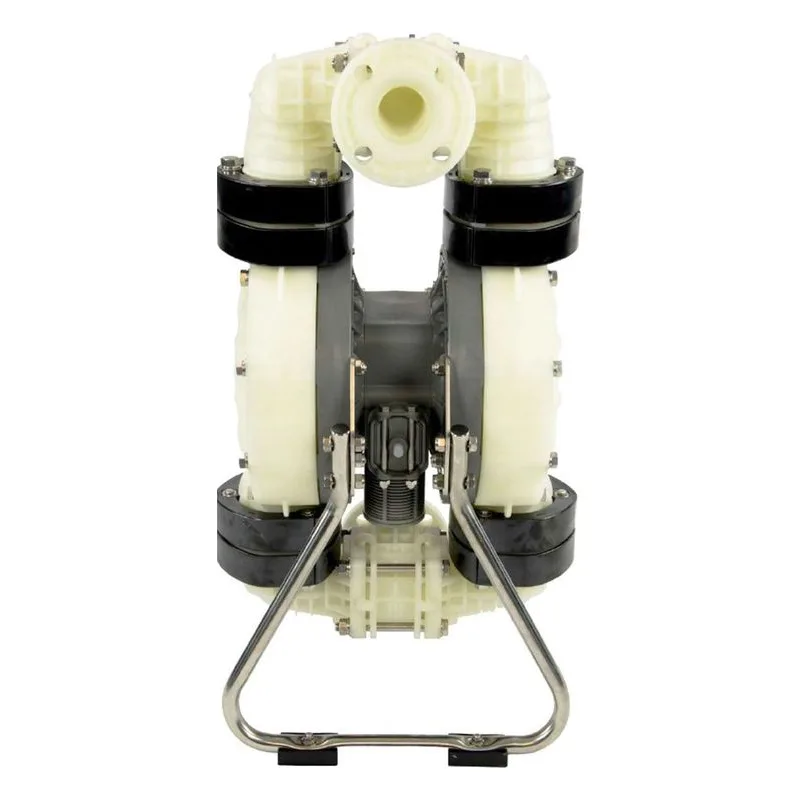

Image shown may not be actual product

NDP-50BPU-PP

0 reviews

Yamada America NDP-50BPU-PP NDP-50 Series Air Operated Double Diaphragm Pump, Model Number 854840-U. Polypropylene Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 2" ANSI Flange Inlet & Outlet, 164 GPM Flow Rate, Passes up to 5/16" (8mm) Solids.

Call for Pricing

Best Price Guarantee!

Item: NDP-50BPU-PP | Model #: 854840-U

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-50BPU-PP

Air Exhaust	1" Female NPT (includes silencer)
Air Inlet	3/4" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	ANSI Flange
Diaphragm	Ultimate (PTFE/EPDM)
Discharge NPT (Inches)	2"
Discharge Volume Per Cycle	0.69 Gallons
Fluid Port	2"
Liquid Temperature	180°F (82°C)
Material	Polypropylene
Max Cycles Per Minute	220

Maximum Flow (GPM)	164
Max Suction Lift	19'
Model Number	854840-U
Model Series	NDP-50
Motor	Glass-Filled Polypropylene
Solids (Inches)	5/16" (8mm)
Suction NPT (Inches)	2"
Valve Balls	PTFE
Valve / Seat / O-Ring	PTFE O-Rings
Valve Type	Ball

NDP-50 / NDP-500 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 2" ANSI B16.5 #150 Kynar® (PVDF) 2" ANSI B16.5 #150 Aluminum (ADC-12) 2" ANSI B16.5 #150 (with tapped 2" Female NPT) Stainless Steel (316) 2" ANSI B16.5 #150 or 2" Female NPT Cast Iron 2" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 2" ANSI B16.5 #150
Kynar® (PVDF) 2" ANSI B16.5 #150
Aluminum (ADC-12) 2" ANSI B16.5 #150
(with tapped 2" Female NPT)
Stainless Steel (316) 2" ANSI B16.5 #150
or 2" Female NPT
Cast Iron 2" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

* The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-50FAN Pump Brochure		View
	Yamada Pumps NDP-50 Pump Manual		View
	Yamada Pumps NDP-50 Pump Specifications		View
	NDP-50 Operation Manual		View
	NDP-50BPU-PP Ultimate Diaphragm Series Repair Parts		View

Repair Parts for NDP-50BPU-PP

	shipping	price
780148	Ships in 1-2 Weeks	$259.00	Select item
780245	Ships in 1-2 Weeks	$95.00	Select item
780151	Ships in 1-2 Weeks	$95.00	Select item
780249	Ships in 1-2 Weeks	$95.00	Select item
805073	Ships in 1-2 Weeks	$1,834.00	Select item
833121	Ships in 1-2 Weeks	$1,179.00	Select item
805063	Ships in 1-2 Weeks	$156.00	Select item
771923	Ships in 1-2 Weeks	$8.00	Select item
771735	Ships in 1-2 Weeks	$11.00	Select item
773249	Ships in 1-2 Weeks	$25.00	Select item
773250	Ships in 1-2 Weeks	$25.00	Select item
773252	Ships in 1-2 Weeks	$25.00	Select item
773259	Ships in 1-2 Weeks	$17.00	Select item
640005	Ships in 1-2 Weeks	$7.00	Select item
621167	Ships in 1-2 Weeks	$6.00	Select item
773253	Ships in 1-2 Weeks	$32.00	Select item
640027-YAM	Ships in 1-2 Weeks	$7.00	Select item
685444	Ships in 1-2 Weeks	$12.00	Select item
832162	Ships in 1-2 Weeks	$27.00	Select item
711937	Ships in 1-2 Weeks	$10.00	Select item
773257	Ships in 1-2 Weeks	$12.00	Select item
773254	Ships in 1-2 Weeks	$12.00	Select item
640020	Ships in 1-2 Weeks	$7.00	Select item
773251	Ships in 1-2 Weeks	$32.00	Select item
780294	Ships in 1-2 Weeks	$279.00	Select item
717073	Ships in 1-2 Weeks	$239.00	Select item
686748	Ships in 1-2 Weeks	$6.00	Select item
686747	Ships in 1-2 Weeks	$6.00	Select item
631173	Ships in 1-2 Weeks	$7.00	Select item
686783	Ships in 1-2 Weeks	$6.00	Select item
773334	Ships in 1-2 Weeks	$26.00	Select item
773258	Ships in 1-2 Weeks	$61.00	Select item
640131	Ships in 1-2 Weeks	$7.00	Select item
717130	Ships in	$118.00	Select item
717133	Ships in	$65.00	Select item
773435	Ships in	$5.00	Select item
833220	Ships in	$775.00	Select item
772097	Ships in 1-2 Weeks	$61.00	Select item
770693	Ships in 1-2 Weeks	$102.00	Select item
686974	Ships in	$53.00	Select item
716885	Ships in 1-2 Weeks	$210.00	Select item
771865	Ships in 1-2 Weeks	$11.00	Select item
683641	Ships in 1-2 Weeks	$7.00	Select item
716883	Ships in 1-2 Weeks	$25.00	Select item
716884	Ships in 1-2 Weeks	$25.00	Select item
717113	Ships in	$63.00	Select item
686696	Ships in 1-2 Weeks	$8.00	Select item
686697	Ships in 1-2 Weeks	$8.00	Select item
631330	Ships in 1-2 Weeks	$7.00	Select item
680257	Ships in 1-2 Weeks	$7.00	Select item
621213	Ships in 1-2 Weeks	$11.00	Select item
631331	Ships in 1-2 Weeks	$7.00	Select item
680607	Ships in 1-2 Weeks	$7.00	Select item
628014	Ships in 1-2 Weeks	$10.00	Select item
621177	Ships in 1-2 Weeks	$7.00	Select item
621149	Ships in 1-2 Weeks	$7.00	Select item
683837	Ships in 1-2 Weeks	$7.00	Select item
684592	Ships in 1-2 Weeks	$11.00	Select item
643064	Ships in 1-2 Weeks	$22.00	Select item
643069	Ships in 1-2 Weeks	$22.00	Select item
643139	Ships in 1-2 Weeks	$26.00	Select item
804764	Ships in 1-2 Weeks	$107.00	Select item
771786	Ships in 1-2 Weeks	$53.00	Select item
771787	Ships in 1-2 Weeks	$53.00	Select item
771788	Ships in 1-2 Weeks	$53.00	Select item
K50-PU	Ships in	Call for pricing
K50-AM-PP	Ships in 1-2 Weeks	$423.00	Select item

0 items selected.Add items to cart
